customized mobile LED advertising truck with stage for VIVO Mobilephone, hot sale forland 4*2 LHD LED billboard vehicle
customized mobile LED advertising truck with stage for VIVO Mobilehone, hot sale forland 4*2 LHD LED billboard vehicle
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of Outdoor mobile LED advertising display truck, LED truck, digital advertising truck, LED screen truck, outdoor full color LED advertising truck, LED box truck, etc. With many years' experience in supplying, Chengli Special Automobile Co., Ltd. could design and produce ISUZU led truck, Dongfeng Outdoor mobile LED advertising display truck, forland digital advertising truck, Karry billboard advertising LED display truck, Chang'an LED display truck, JAC mobile advertising truck, HOWO scrolling advertising truck, trailer-type mobile outdoor LED truck, etc. More information, please feel free to contact with Ms. Anita Deng.
3 sides LED billboard truck,
PIXELS: 10mm/8mm/6mm(P10/P8/P6)
One side: 6.88, max to 7m2
Sides(left + right): 6.88m2*2=13.76m2/ 14m2
Rear: 1.84m2
Stage: 10m2
The overall dimension(L*W*H) of FOTON KANGRUI 4*2 LHD Mobile LED truck:5995×2025×2995 (mm), truck model: CLW5040XXC4.
1, the right side of the driver cab is with high quality P10/P8/P6 HD waterproof and shake-proof full color outdoor screen (screen area: 3840*1792=6.88m2),choose to install the side screen is with hydraulic lifting stage(stage area: 10m2, lifting height: 1.5m) and 4 sets manual/hydraulic outriggers.
2, the left side of the driver cab is with word roller light-box with automatically switching format advertisings; and the exterior with tempered glass or left and right sides with P10/P8/P6 screens
3, the rear part screen is with single color word screen (screen area: 1280*1440=1.84m2)
4, truck mounted diesel generator adopts high quality OUMA 8KW/15KW diesel generator.
5, truck trim: 5cm thickness composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audio, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system.
Remark: the computer is with English words, English operation system and Software playback system
main technical parameters of hot sale
| Main technical parameters | |||
| Product name | FOTON kangrui MOBILE LED billboard truck for sale (CLW5040XXC4) | ||
| Total mass(Kg) | 4495 | Diesel generator | OUMA 8KW/15KW diesel generator |
| Curb mass(Kg) | 4300 | Overall dimension(L*W*H)(mm) | 5995×2025×2995 |
| Side screen area | 3840*1792=6.88m2 | Rear screen area | 1280*1440=1.84m2 |
| Seated person | 2 | Truck mounted computer | Full ENGLISH word Computer |
| Approach/departure angle(°) | 21/17(°) | Front/rear suspension(mm) | 1120/1500(mm) |
| Axle nos. | 2 | Wheelbase(mm) | 3360 |
| Axle load(Kg) | 1350/3145 | Max speed(Km/h) | 90 |
| Truck chassis | |||
| Truck chassis model |
BJ1043V9JEA-A
|
Manufacturer | Foton |
| Tire specification | 7.00R16 | Tire nos. | 6+1 |
| Approach/departure angle(°) | 20/25 | Front tread(mm) | 1530,1730 |
| Steel spring | 3/5+3 | Rear tread(mm) | 1485,1590 |
| Driver cab | 2 | Gearbox | 5 speed gearbox |
| Driver cab | FOTON single row driver cab with air conditioner and power steering | Axle | 5tons rear axle |
| Brake | Air cut brake | Fuel type | Diesel |
| Emission standard | Euro 4 | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| YN27CRD1 | Yunnei | 2672 | 70KW/95hp |
More pictures of hot sale FOTON KANGRUI mobile LED billboard LED advertising truck customized for VIVO Mobilephone company in China as below

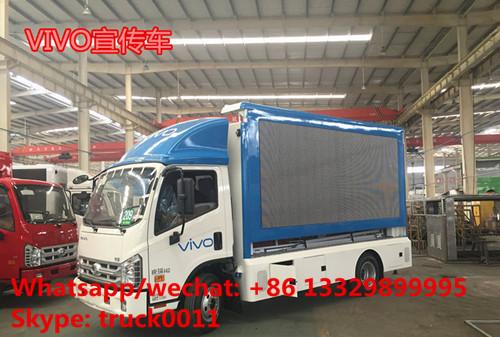

Customized mobile LED advertising truck for VIVO Mobilephone for sale

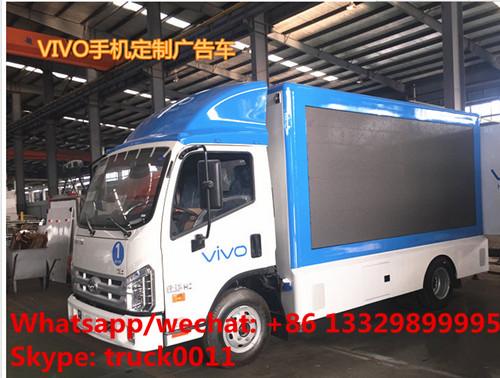

mobile billboard advertising truck with one side hydraulic lifting LED screen

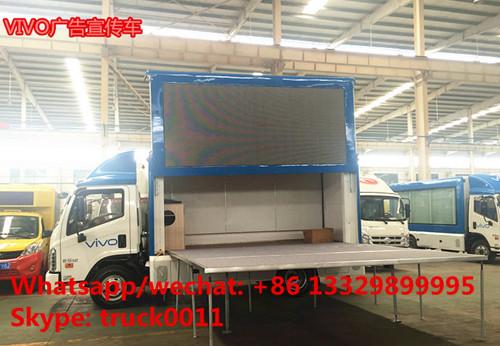

high quality and best price FORLAND mobile LED advertising truck with 10m2 hydraulic stage for VIVO Company for sale
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
Website: www.trucksinchina.com
