Factory direct sale best price 25m3 mobile skid lpg tank with digital scales, skid lpg gas plant with 4 digital scales
Factory direct sale best price 25m3 mobile skid lpg tank with digital scales, 2017s popular skid lpg gas plant with 4 digital scales for filling domestic gas cylinders for sale
skid system lpg with automobile lpg gas dispenser is used for refilling of liquified petrol gas (LPG). As a major equipment of the LPG station, it is equipped with high-accuracy positive displacement flowmeter,microcomputer control, large LCD counter and various control valves and protection devices assuring operation safety.With advanced manufacturing technique, the dispenser has reliable quality and excellent performance with characteristics of precise ration, easy maintainance and centralized control. Each gun connects to an independent flow and metering system which prevents interference.
skid system lpg with automobile lpg dispenser can fill not only the domestic gas cylinders, but also automobiles, mainly city buses, just to adjust the nozzles.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
main technical parameters of hot sale 25m3 skid lpg gas plant with 4 digital scales as below
| 25 CBM skid-mounted lpg gas filling plant DIMENSIONS | |||
| Volume of Tank | 25 CBM | ||
| Loading capacity | 10000 kg | ||
| Tank Weight | 5970 kg | ||
| Thickness of Shell (mm) | 12 mm | ||
| Thickness of Endplate (mm) | 12 mm | ||
| Tank Diameter (mm) | 2400 mm | ||
| External Dimensions (mm) (length x width x height) | 6700 x 2400 x 3800 mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| digital scales | Can fill 3kg to 150kg gas cylinder | 4 | |
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
|||
Main parameters of lpg gas pump & motor and electronic scale as below
| LPG Pump & Motor Specification | |||
| Pump Brand | Chinese brand lpg gas pump | ||
| Model | YQB15-5 | ||
| Medium | Liquid petroleum gas | ||
| Working pressure differential | ≤0.5Mpa | ||
| Inlet pressure | ≤1.0Mpa | ||
| Flow Speed | 15.5m3/h | ||
| Applied Power | 5.5kw | ||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | ||
|
Revolution
|
780r/min | ||
| mass | 166kgs | ||
| Motor | Chinese brand | ||
| Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
||
| LPG Cylinder electronic Filling Machines Specification | |||
| Brand | Chinese Kaiyuan Brand | ||
| Model | BCS-150 | ||
| Power supply available | 220V 50HZ | ||
| Rated power | 30W | ||
| Max weighting capacity | 150kg | ||
| Mini weighting capacity | 1kg | ||
| Measurement Precision | ±0.5% | ||
| Accuracy Level | Ⅲ | ||
| Certified Division value | 50g | ||
| Anti-explosion Rate | Exhibit II BT4 | ||
| Weighing station size | 535*425mm | ||
| Electronic scales No. | 4 sets | ||

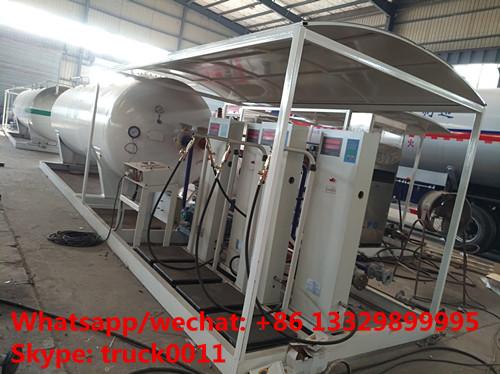

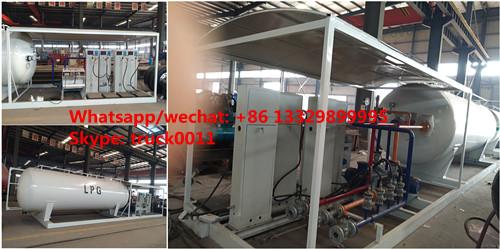

More pictures of ot sale CLW brand skid lpg gas plant with 4 digital scales as below.

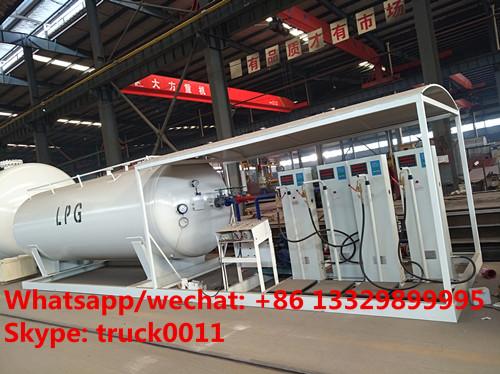

HOT SALE! CLW brand skid lpg gas tank with 4 digital scales

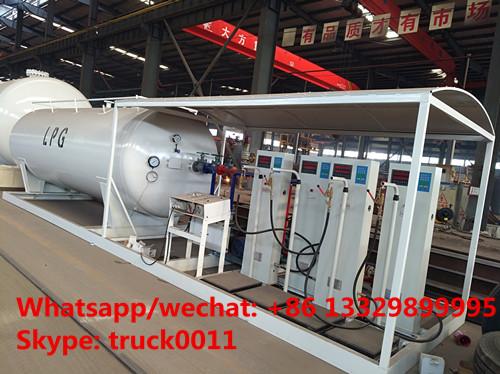

high quality and best price CLW Brand mobile skid lpg gas plant for sale
C;W brand lpg gas tank with digital scales for sale
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
