factory sale best price outdoor mobile digital LED billboard advertising trailer, best price mobile LED screen vehicle
factory sale best price outdoor mobile digital LED billboard advertising vehicle, best price CLW brand mobile LED screen billboard full color vehicle for sale
LED advertising billboard trailer vehicle adopts the leading truck chassis as the driving part with strong structure, flexible operation, equipping with the special audio, TV turner, etc. realizing showing Indoor large scale meeting,TC Teleconference, indoor product show, karaoke ok, etc. This is kind of LED advetising trailer is suitable for show on the road, square, etc. the advertising effect is much higher the mounted advertising screen.
The detailed technical data for the 2015s model up-straight outdoor mobile LED advertisement vehicle as below.
1)driving part:
Scissor type hydraulic lifting platform and supporting system
Broadcasting system and Multimedia control system
Vehicle stability system
Current supply device, including intelligent timing on power system.
If you're interested in our mobile LED advertising truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com
main technical parameters of mobile LED advertising semitrailer manufactured by Chengli Special Automobile Co., Ltd. as below.
| Overall dimension(L*W*H)(mm) | 7000*2500*3500mm | Material | 1.5mm thickness carbon steel |
| Truck body | Front axle + rear axle | Braking | Front wheel braking with braking lamp |
| Tyre specification | 750 | Mini turning diameter | ≤18000mm |
2)up-straight 360 degree rotation elevating platform and supporting system
| Hydraulic elevating system | |
| Elevating type | Up-straight 360 degree rotation |
| Platform dimension | 3200x750x400mm |
| Loading mass | 5500kgs |
| Supporting stability | 4 hydraulic outriggers, every outrigger with the loading mass of 5ton. |
| Screen folding controlling | Adopting hydraulic cylinders to uplift the front part of the screen, and show the whole full screen; with 360 degree rotation |
| Minimum visibility distance | 5m |
| Lifting range | 400mm-2400mm |
| horizontal view angle | 110(±55) degree |
| vertical angle of view | 400mm-2400mm |
3) LED screen (P10)
| Screen dimension | 4800x1600mm(4800*3200mm two screen tog) | Module dimension | 160x160mm |
| tube core | R/G/B:Taiwan wafer | Pixel dot spacing | 10mm |
| intensity | ≥6500cd/㎡ | Pixel density | 10000 point/㎡ |
| Max power | ≤1000W/㎡ | Screen lifetime | >100,000 hours |
4) broadcasting system and Multimedia control system
LED Industrial Personal Computer |
Overall dimension:410mm(H)x210mm(W)x60mm(D),9.2inch touch screen, | ||
| device:Intel low power consumption Dual Core 1.8G 4tCPU,internal storage:standard configuration DDR3 2G, memory:SSD32G Solid State Disk； | |||
| Operation system: supporting DOS,WINCE,LINUX,XPE,XP | |||
| Power amplifier | 1 unit | Auto | 120KWX2 |

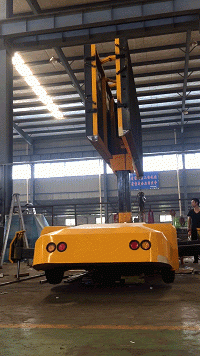

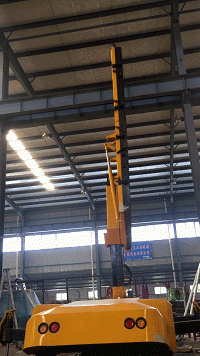

More pictures of hot sale CLW brand mobile digital LED billboard advertising semitrailer vehicle as below.
MOBILE digital LED billboard advertising truck for sale
Mobile LED advertising truck with the lifting height of 1.5m
2017s best price CLW brand LED advertising trailer for sale
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
