2021s new 20m3 10tons skid lpg gas plant with lpg gas dispenser for sale,skid lpg plant with lpg gas dispensing machine
2020s new design 20m3 10tons skid lpg gas plant with auto lpg gas dispenser(two nozzles) for sale,factory sale best price China brand skid lpg plant with lpg gas dispensing machine
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’ development, Chengli can manufacture and sell surface/underground lpg gas storage tanks, lpg gas tank semitrailer, lpg gas truck, lpg gas bobtail vehicle, skid lpg gas refilling station, etc.And last year, our CLW brand lpg gas pressure vessels have passed USA ASME standard. That is to say, our CLW brand lpg gas storage tanks can be esxported to USA, European countries.
Welcome more and more clients all over the world to visit our CLW Group and purchase our CLW brand high quality and best price lpg gas pressure vessels.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
main technical parameters of CLW Brand 10tons skid lpg gas plant with auto lpg gas dispenser as below
| 20 CBM LPG TANK DIMENSIONS | ||||||
| Volume of Tank | 20,000L | |||||
| Filling Weight | 10000kgs | |||||
| Tank Weight | 5080kgs | |||||
| Thickness of Shell (mm) | 12mm | |||||
| Thickness of Endplate (mm) | 14mm | |||||
| Tank Diameter (mm) | 2100 mm | |||||
| Tank Dimensions (mm) (length x width x height) | 6154*2124*2714 mm | |||||
| External Dimensions (mm) (length x width x height) | To be designed to be loaded in a 40’container | |||||
| Material of Tank | Carbon Steel Q345R | |||||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | |||||
| Design Pressure | 1.77 MPa | |||||
| Corrosion Allowance | 1 mm | |||||
| Medium Density | 420-520 kg/ cbm | |||||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||||||
| Main parts of LPG Tank | ||||||
| Item | Specification/ mm | Quantity | ||||
| Discharge Pipe | DN50 | 1 | ||||
| Inflow Pipe | DN50 | 1 | ||||
| Outlet | DN50 | 1 | ||||
| Gas phase balance pipes | DN50 | 2 | ||||
| Manhole | DN450 | 1 | ||||
| Drain Hole | DN50 | 1 | ||||
| Other accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | ||||||
| LPG Pump & Motor Specification | ||||||
| Pump Brand | Chinese brand lpg gas pump | |||||
| Model | YQB15-5 | |||||
| Medium | Liquid petroleum gas | |||||
| Working pressure differential | ≤0.5Mpa | |||||
| Inlet pressure | ≤1.0Mpa | |||||
| Flow Speed | 15.5m3/h | |||||
| Applied Power | 5.5kw | |||||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | |||||
| Revolution | 780r/min | |||||
| mass | 166kgs | |||||
| Motor | Chinese brand | |||||
| Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
|||||
More pictures of hot sale CLW brand 10tons skid lpg gas plant manufactured by Chengli Special Automobile Co., ltd. as below

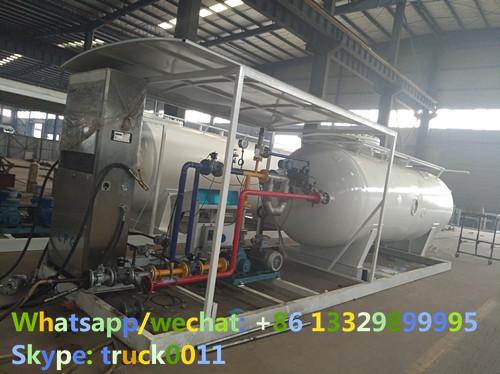

Skid lpg gas plant with lpg gas dispensing machine for sale

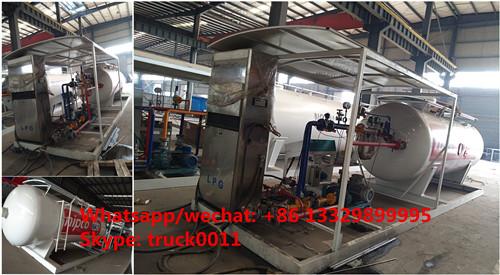

China brand 2017s new design skid propane gas plant with auto lpg gas dispenser for filling automobiles for sale
The skid system tank with automobile lpg gas dispenser manufactured by Chengli Special Automobile Co., Ltd. is used for refilling of liquified petrol gas (LPG). As a major equipment of the LPG station, it is equipped with high-accuracy positive displacement flowmeter,microcomputer control, large LCD counter and various control valves and protection devices assuring operation safety.With advanced manufacturing technique, the dispenser has reliable quality and excellent performance with characteristics of precise ration, easy maintainance and centralized control. Each gun connects to an independent flow and metering system which prevents interference.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years'development, Chengli Special Automobile Co., Ltd. could manufacture and supply surface/underground lpg gas storage tank, lpg gas tank semitrailer, skid lpg gas refilling plant, lpg gas truck, lpg gas bobtail vehicle, etc. More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
