factory sale best price forland 4*2 RHD 11m aerial bucket truck, hot sale forland 11m overhead working platform truck
factory sale best price forland 4*2 RHD 11m aerial bucket truck, hot sale forland 11m overhead working platform truck
This forland RHD double rows 11m bucket truck is designed for the clients from South America. Forland aerial working truck adotps Forland D1695 double rows RHD driver cab, BJ493Q 77hp diesel engine, 3360mm wheebase, Euro 1 emission standard, 5 speed transmission, BJ130 rear axle, 6.50-16 tyre, power steering and original air-conditioner, etc.
More information, please feel free to contact with Ms. Anita. Please send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
More pictures of hot sale forland 4*2 RHD 11m double cabs high altitude operation truck manufactured by Chengli Special Automobile Co., Ltd. as below.

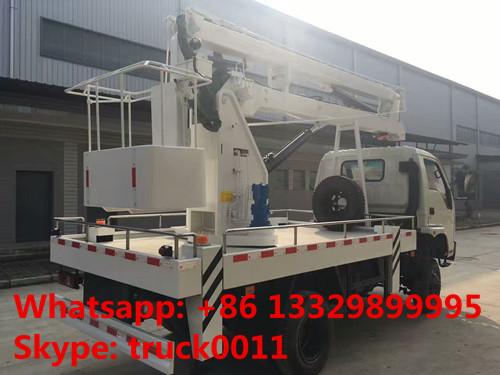

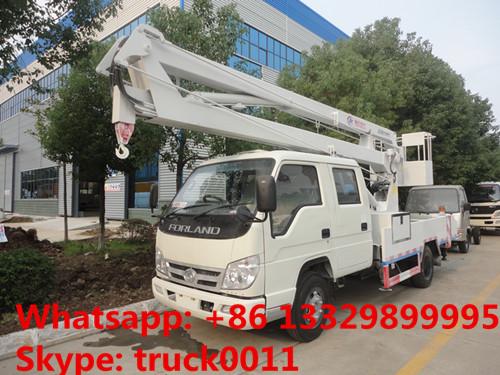

Forland brand 11m aerial bucket truck for sale
Chengli SPecial Automobile Co., Ltd is the leading mnaufacturer and supplier of aerial working platform truck in China. With many years'development, we Chengli Special Automobile Co., Ltd. could offer 11m-24m aerial working truck, such as dongfeng brand, ISUZU brand, FAW Brand, FORLAND brand, FOTON BRAND, JAC brand, JMC brand, HOWO brand ,etc. More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
main technical parameters of hot sale FORLAND 11m Overheadworking truck as below
| Whole Truck Main Technical Parameter | ||||
| Product Name | Forland RHD double rows 11m high altitude operation truck for sale | Gross Vehicle Weight (kg) | Approx 4325 | |
| Curb Weight (kg) | 4000 | Overall Dimension(mm) | 7400x1980x3100 | |
| Working Height(m) | 11m/12m | Cab Allowed Persons | 2 | |
| Axle No. | 2 | Wheelbase (mm) | 3360 | |
| Chassis Technical Parameter | ||||
| Chassis Model | BJ1059 | Chassis Name | Truck Chassis | |
| Chassis Brand | Forland | Manufacturer | Forland company | |
| App./ Dep. Angle(º) | 23/14 | Tire Spec. | 6.50-16*6 with 1 spare tire | |
| Leaf Spring No. | 8/9+5 | Front suspension (mm) | 1090 | |
| Fuel Type | Diesel | Rear suspension (mm) | 1545 | |
| Drive Type | 4x2 | Driver cab | Forland double rows D1695 driver cab | |
| Steering Type | Power steering | Gear Box | 5 speed forward and 1 reverse | |
| Emission standard | Euro 1 | Air-conditioner | Yes | |
| Engine Technical Parameter | ||||
| Engine Model | BJ493Q | Emission Standard | Euro 1 | |
| Displacement ( ml ) | 2771 | Power (KW) | 77hp | |
| Cylinder No. | 4 in line | Engine Type | Water cooling, four stroke, inter-cooling charged | |
| Work platform parameter | 1. Working platform rating load 200kg; | |||
| 2. Max operation height: 11m; | ||||
| 3. Max working platform height: 12m | ||||
| 5. Max rotation angle:360° | ||||
| Superstructure parameter: 1. Rotational alert lamp on the top of the cabin. 2. Four hydraulic outriggers which can be operated independently or simultaneously. 3. Insulated bucket for worker to operation. 4. Imported electro-hydraulic ratio control valve. 5.Working height: 11m; working arms: 3 folded telescopic arm, 360° continuous rotation, 6. Equipped with auxiliary lifting hanger loading 1 ton. |
||||
