20m3 skid lpg gas plant with digital scales and compressor for sale, factory sale skid lpg gas plant with compressor
China best price 20,000Liters skid lpg gas plant with digital scales and compressor for sale, factory sale good price CLW brand 20m3 mobile skid lpg tank with explosion-proof electronic filling scales for domestic gas cylinders and compressor for filling lpg gas truck
The finished full set of skid-mounted lpg gas plant is well-appinted, installed with lpg gas vane pump, motor, electronic scale etc. The clients can use it to fill gas cylinders directly. And at the same time, we can design and manufacture ASME standard ones. The mobile skid-mounted lpg gas plant is ask for higher installing quality. more and more clients choose our CLW brand company, that is to say our CLW brand lpg gas pressure vessels gain acceptance at home and overseas.
If you're interested in our skid lpg gas station with digital scales and lpg compressor, please feel free to send email to truck0011@163.com or talk to Anita dirctly by whatsapp/wechat/Mob.: +86 13329899995.
More pictures of hot sale CLW brand skid lpg gas station with digital scales and

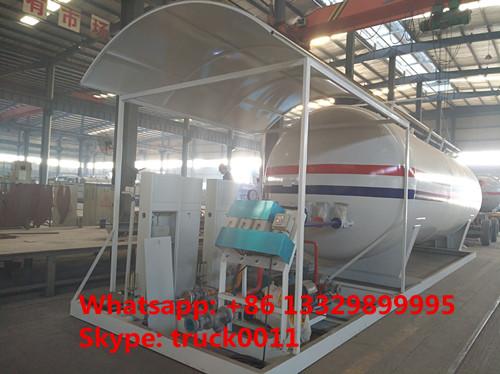

HOT SALE! skid lpg gas plant with digital scales

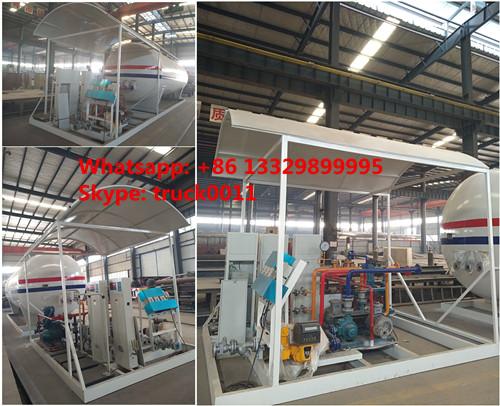

CLW brand skid lpg gas filling station with 3 digital scales and compressor for sale

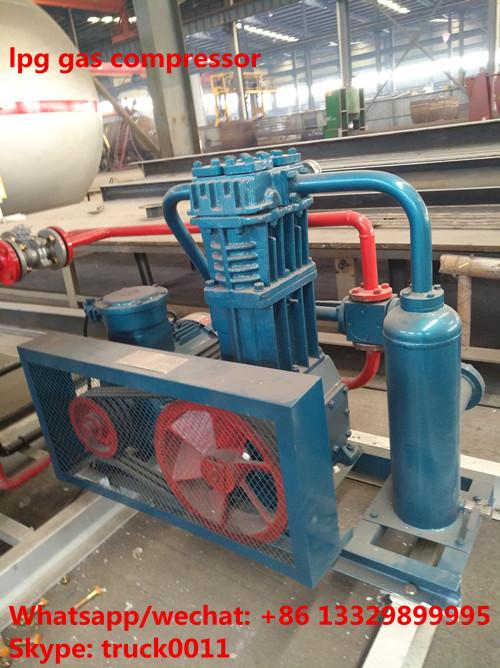

lpg gas compressor for sale

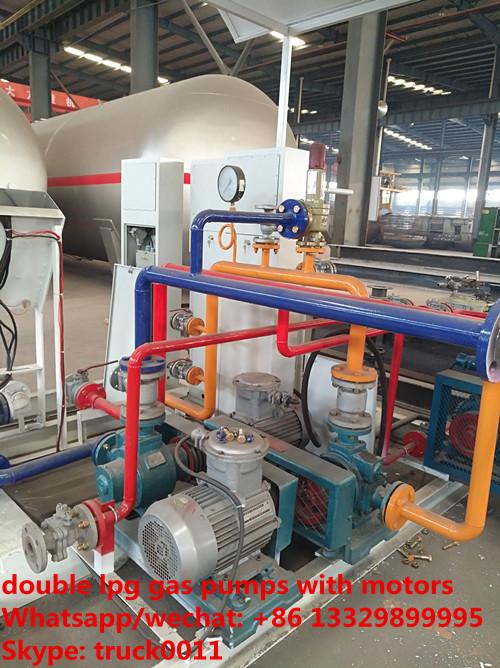

mobile skid lpg gas tank with double lpg gas pumps with motor for sale
main technical parameters of hot sale tons skid lpg gas station as below
| 20 CBM LPG TANK DIMENSIONS | |||
| Volume of Tank | 20,000L | ||
| Filling Weight | 10000kgs | ||
| Tank Weight | 5080kgs | ||
| Thickness of Shell (mm) | 12mm | ||
| Thickness of Endplate (mm) | 14mm | ||
| Tank Diameter (mm) | 2100 mm | ||
| Tank Dimensions (mm) (length x width x height) | 6154*2124*2714 mm | ||
| External Dimensions (mm) (length x width x height) | To be designed to be loaded in a 40’container | ||
| Material of Tank | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-520 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification/ mm | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| Other accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
| LPG Skid Parts list | ||||
| Item | Model Number | Quantity | ||
| LPG Tanker | 20,000L | 1 piece | ||
| Lpg gas Pump | 2" inlet & 2" outlet | 2 Piece | ||
| Explosive-proof Motor | 380V with 220V adapter | 2 Piece | ||
| Electronic Weighting Scale with filling nozzles | Can fill 1kg to 150kg domestic LPG cylinders | 3 pieces | ||
| Lpg gas compressor | Fill lpg gas truck | 1 pieces | ||
| Pipes | / | 1 Sets | ||
| Cut-off Valve | J41N-40 DN50 | 25 Pieces | ||
| J41N-40 DN15 | 10 Pieces | |||
| Safety Valve | A42F-25 DN50 | 1 Piece | ||
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece | ||
| Level Gauge | Float ball type | 1 Unit | ||
| Discharging pipe | L=4M DN50/DN25 | 1 Piece | ||
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces | ||
| Flange | 2.5MPaDN15 | 20 Pieces | ||
| LPG Pump & Motor Specification | ||||
| Pump Brand | Chinese brand lpg gas pump | |||
| Model | YQB15-5 | |||
| Medium | Liquid petroleum gas | |||
| Working pressure differential | ≤0.5Mpa | |||
| Inlet pressure | ≤1.0Mpa | |||
| Flow Speed | 15.5m3/h | |||
| Applied Power | 5.5kw | |||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | |||
|
Revolution
|
780r/min | |||
| mass | 166kgs | |||
| Motor | Chinese brand | |||
| Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
|||
| LPG Cylinder electronic Filling Machines Specification | ||||
| Brand | Chinese Kaiyuan Brand | |||
| Model | BCS-150 | |||
| Power supply available | 220V 50HZ | |||
| Rated power | 30W | |||
| Max weighting capacity | 150kg | |||
| Mini weighting capacity | 1kg | |||
| Measurement Precision | ±0.5% | |||
| Accuracy Level | Ⅲ | |||
| Certified Division value | 50g | |||
| Anti-explosion Rate | Exhibit II BT4 | |||
| Weighing station size | 535*425mm | |||
| Electronic scales No. | 1-2 | |||
| Liquefied Petroleum Gas Compressor | ||||
| Model |
ZW-0.8/10-16 Liquefied Petroleum Gas Compressor
|
|||
| Medium | Lpg | |||
| Flow rate | 0.8m3/min | |||
| Suction pressure | 1.0MPa | |||
| Exhaust pressure | 1.6MPa | |||
| Rotation speed | 730r/min | |||
| Overall size | 1220*680*960mm | |||
| Net weight | 430kgs | |||
| Motor power | 11KW | |||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of bulk lpg gas storage tanks, lpg gas trailer, lpg gas delivery trucks, etc. in China since 2004s. With many years'development, OUR CLW brand pressure vessels have been exported to so many countries all over the world. Recently our CLW brand pressure vessels products pass the ASME certificate, and then our CLW lpg gas tank and lpg gas trailers could been exported to USA, Europe, Taiwan, etc. More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
