Dongfeng 4*2 LHD mobile digital billboard LED advertising vehicle for sale,factory sale cheapest 130hp diesel LED truck
Dongfeng kaipute 4*2 LHD mobile digital billboard LED advertising vehicle for sale,factory sale 130hp diesel dongfeng brand P6 mobile LED advertising truck
3 sides LED billboard truck,
PIXELS: 10mm/8mm/6mm(P10/P8/P6)
One side: 6.88
Sides(left + right): 6.8m2*2=13.6m2
Rear: 1.84m2
chosen hydraulic Stage: 10m2
The overall dimension(L*W*H) of dongfeng kaipute Mobile LED truck:6995×2200×3350(mm),
1, the right side of the driver cab is with high quality P10/P8/P6 HD waterproof and shake-proof full color outdoor screen (screen area: 3840*1790=6.8m2),choose to install the side screen is with hydraulic lifting stage(stage area: 10m2, lifting height: 1.5m) and 4 sets manual/hydraulic outriggers.
2, the left side of the driver cab is with word roller light-box with automatically switching format advertisings; and the exterior with tempered glass or left and right sides with P10/P8/P6 screens
3, the rear part screen is with single color word screen (screen area: 1600*1600=1.84m2)
4, truck mounted diesel generator adopts high quality OUMA 8KW/15KW diesel generator.
5, truck trim: 5cm thickness composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audio, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system.
If you're interested in our truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com.
Remark: the computer is with English words, English operation system and Software playback system
| Main technical parameters | |||
| Product name | FOTON AUMARK MOBILE LED billboard truck for sale | ||
| Total mass(Kg) | 7750 | Diesel generator | OUMA 8KW/15KW diesel generator |
| Curb mass(Kg) | 7305 | Overall dimension(L*W*H)(mm) | 6995×2200×3350 |
| Side screen area | 3840*1760=6.8m2 | Rear screen area |
1280*1440mm=1.84m2 |
| Seated person | 2 | Truck mounted computer | Full ENGLISH word Computer |
| Approach/departure angle(°) | 22/8(°) | Front/rear suspension(mm) | 1068/2127(mm) |
| Axle nos. | 2 | Wheelbase(mm) | 3800 |
| Axle load(Kg) | 1350/3145 | Max speed(Km/h) | 115 |
| Truck chassis | |||
| Truck chassis model |
EQ1080SJ9BDE
|
Manufacturer | DONGFENG |
| Tire specification | 7.50-16LT | Tire nos. | 6+1 |
| Steel spring | 6/6+5 | Front tread(mm) | 1569 |
| Gearbox | 5 speed gearbox manual | Rear tread(mm) | 1530 |
| Brake | aircut brake | Fuel type | Diesel |
| Emission standard | Euro 3/4 | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
|
ZD30D13-4N D28D11-4DA |
DONGFENG light duty diesel engine |
2953 2771 |
96 85 |

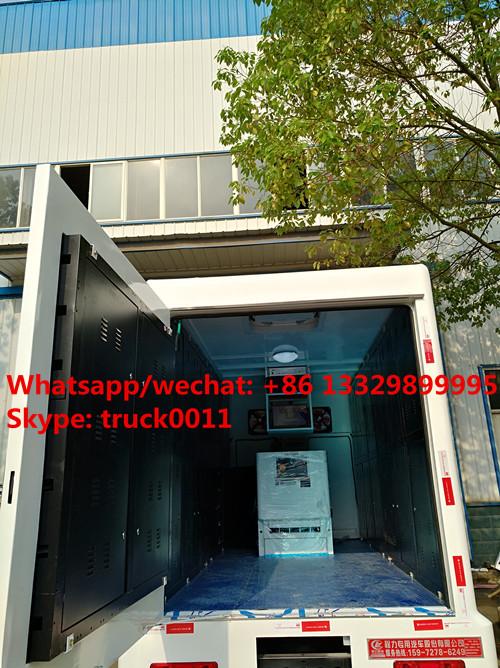

More pictures of hot sale dongfeng 4*2 130hp diesel P6 Mobile LED advertising truck as below.
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
