cheapest price skid lpg gas tank with auto lpg gas dispenser for sale, CLW brand 10m3 skid lpg gas filling station
2017s cheapest price skid lpg gas tank with auto lpg gas dispenser for sale, best price CLW brand 10m3 skid lpg gas filling station with automatic lpg gas dispensing machine for sale,
skid system lpg with automobile lpg gas dispenser is used for refilling of liquified petrol gas (LPG). As a major equipment of the LPG station, it is equipped with high-accuracy positive displacement flowmeter,microcomputer control, large LCD counter and various control valves and protection devices assuring operation safety.With advanced manufacturing technique, the dispenser has reliable quality and excellent performance with characteristics of precise ration, easy maintainance and centralized control. Each gun connects to an independent flow and metering system which prevents interference.
skid system lpg with automobile lpg dispenser can fill not only the domestic gas cylinders, but also automobiles, mainly city buses, just to adjust the nozzles.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
main technical parameters of hot sale 10,000Liters skid lpg gas station with auto lpg gas dispenser as below
| 10,000L LPG SKID STATION DIMENSIONS | |||
| Volume of Tank | 10,000L | ||
| Filling Weight | 5000kg | ||
| Tank Weight | 2950 kg | ||
| Thickness of Shell (mm) | 10 mm | ||
| Thickness of Endplate (mm) | 10 mm | ||
| Tank Diameter (mm) | 1600 mm | ||
| External Dimensions (mm) (length x width x height) | 6000x 1620 x 2910 mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-520 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| Auto lpg gs dispenser | Single or double filling nozzles for filling automobiles | 1 | |
| Shock-absorbing Tube | 1 Set | ||
| Filling pump machine | 1Pieces | ||
| Discharge Pipe | 5 Miters/set, | 2sets | |
| Anti static electric motor | 1 Piece | ||
| Bottom Base | 1 Unit | ||
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
|||
| LPG Pump & Motor Specification | ||
| Pump Brand | Chinese brand lpg gas pump | |
| Model | YQB15-5 | |
| Medium | Liquid petroleum gas | |
| Working pressure differential | ≤0.5Mpa | |
| Inlet pressure | ≤1.0Mpa | |
| Flow Speed | 15.5m3/h | |
| Applied Power | 5.5kw | |
| Inlet & Outlet Flange | 2”NPT / 2" NPT | |
|
Revolution
|
780r/min | |
| mass | 166kgs | |
| Motor | Chinese brand | |
| Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
|

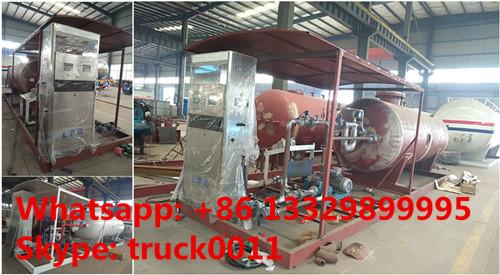

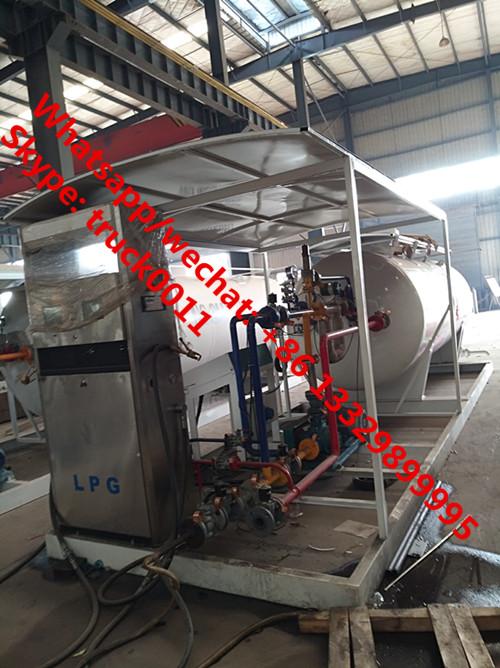

More pictures of hot sale CLW brand 10m3 skid lpg gas plant with auto lpg gas dispenser for filling automobiles as below.

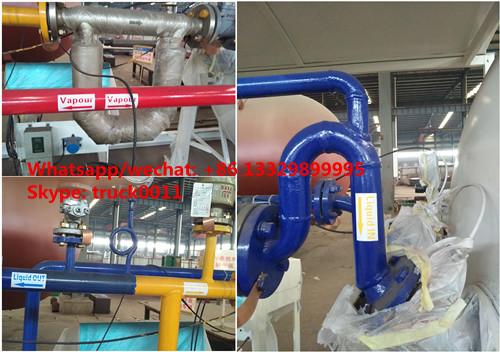

Vapour pipe line, liquid out nad liquid in pipe line for skid lpg gas plant
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years'development, Chengli Special Automobile Co., Ltd. could manufacture and supply surface/underground lpg gas storage tank, lpg gas tank semitrailer, skid lpg gas refilling plant, lpg gas truck, lpg gas bobtail vehicle, etc. More information, please feel free to contact with Ms. Anita.
