hot sale! 25tons skid lpg gas station with 5 digital weigthing scales for gas cylinders, skid lpg gas refilling plant
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. Our CLW lpg gas pressure vessels(lpg gas storage tank, lpg gas trailer, lpg gas truck, lpg gas dispensing truck, skid lpg gas filling plant) have been exported to so many countries all over the world. And to meet the needs of the international market, Chengli Special Automoile Co., Ltd. lpg gas pressure vessel factory design and manufacture lpg gas dispensing truck and skid lpg gas filling plant.
skid system lpg with automobile lpg gas dispenser is used for refilling of liquified petrol gas (LPG). As a major equipment of the LPG station, it is equipped with high-accuracy positive displacement flowmeter,microcomputer control, large LCD counter and various control valves and protection devices assuring operation safety.With advanced manufacturing technique, the dispenser has reliable quality and excellent performance with characteristics of precise ration, easy maintainance and centralized control. Each gun connects to an independent flow and metering system which prevents interference.
skid system lpg with automobile lpg dispenser can fill not only the domestic gas cylinders, but also automobiles, mainly city buses, just to adjust the nozzles.
Nowadays, more and more clients choose to purchase mobile skid lpg gas plant for their lpg gas plant business. We Chengli Special Automobile Co., Ltd. can customize skid lpg gas plant with digital scales for filling domestic gas cylinders or automatic lpg gas dispenser for automobiles. And clients can choose 1/2/3/4/5 digital scales install on the skid lpg gas plant upon request, or even. And they can also choose install lpg gas dispenser with 1/2/3/4/5 nozzles for automobiles.
If you're interested in our skid lpg gas station, please send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/ Mob.: +86 13329899995.

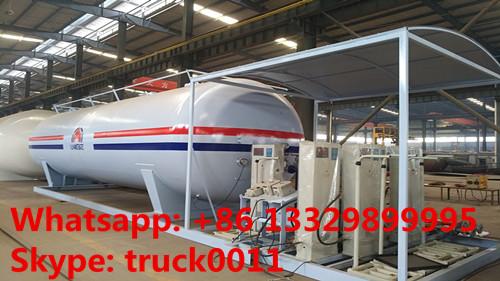

More pictures of hot sale 25tons skid lpg gas station with 5 sets of digital weighting scales as below

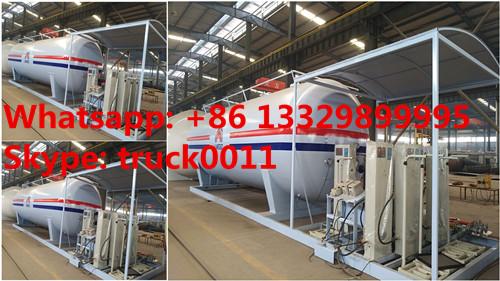

HOT SALE! Skid lpg gas station with 5 digital weighting scales for sale
The technical parmaeters of customized skid lpg gas station as below
| 50 CBM LPG TANK DIMENSIONS | |||
| Volume of Tank | 50,000L | ||
| Filling Weight | 25000kgs | ||
| Tank Weight | 10640 | ||
| Thickness of Shell (mm) | 14mm | ||
| Thickness of Endplate (mm) | 16mm | ||
| Tank Diameter (mm) | 2700 mm | ||
| Tank Dimensions (mm) (length x width x height) | 9182*2728*3318mm | ||
| External Dimensions (mm) (length x width x height) | Approximate 12.2*2.4*3.8(m) | ||
| Material of Tank | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-520 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification/ mm | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| Other accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
| LPG Skid Parts list | ||||
| Item | Model Number | Quantity | ||
| LPG Tanker | 50,000L | 1 piece | ||
| Pump | 2" inlet & 2" outlet | 1 Piece | ||
| Explosive-proof Motor | 380V with 220V adapter | 1 Piece | ||
| Electronic Weighting Scale with filling nozzles | Can fill 1kg to 150kg LPG cylinders | 2pieces | ||
| Pipes | / | |||
| Cut-off Valve | J41N-40 DN50 | |||
| J41N-40 DN15 | ||||
| Safety Valve | A42F-25 DN50 | |||
| Pipe Safety Valve | A21F-25 DN15 | |||
| Level Gauge | Float ball type | |||
| Discharging pipe | L=4M DN50/DN25 | |||
| Shock-absorbing Tube | L=500mm DN50 | |||
| Flange | 2.5MPaDN15 | |||
| LPG Pump & Motor Specification | ||||
| Pump Brand | Chinese brand lpg gas pump | |||
| Model | YQB15-5 | |||
| Medium | Liquid petroleum gas | |||
| Working pressure differential | ≤0.5Mpa | |||
| Inlet pressure | ≤1.0Mpa | |||
| Flow Speed | 15.5m3/h | |||
| Applied Power | 5.5kw | |||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | |||
| Revolution | 780r/min | |||
| mass | 166kgs | |||
| Motor | Chinese brand | |||
| Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
|||
| LPG Cylinder electronic Filling Machines Specification | ||||
| Brand | Chinese Kaiyuan Brand | |||
| Model | BCS-150 | |||
| Power supply available | 220V 50HZ | |||
| Rated power | 30W | |||
| Max weighting capacity | 150kg | |||
| Mini weighting capacity | 1kg | |||
| Measurement Precision | ±0.5% | |||
| Accuracy Level | Ⅲ | |||
| Certified Division value | 50g | |||
| Anti-explosion Rate | Exhibit II BT4 | |||
| Weighing station size | 535*425mm | |||
| Electronic scales No. | 2 | |||
