2021s new bottom price 20MT bulk road transported lpg gas tank for sale, factory sale 20MT lpg gas tank trailer
bottom price CLW brand 20MT road transported lpg gas tank for sale, factory sale best price 20tons lpg gas tank semitrailer
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl , methanol, butadiene, butane, ethylene oxide, etc.in low pressure liquefied gases at room temperature; volume from 10 cubic meters --- 120 cubic optional. Besides, the lpg gas tank, Chengli Special Automobile Co., Ltd. could offer lpg gas trailer, lpg gas tank, lpg gas delivery truck, lpg gas dispenser vehicle, skid lpg gas filling plant, etc. More information, please feel free to contact with Ms. Anita Deng.
Last month, we received an order of 49.6m3 road transported lpg gas tank with the loading capacity of 20,830kgs.
If you're interested in our bulk lpg gas tank trailer, please send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.

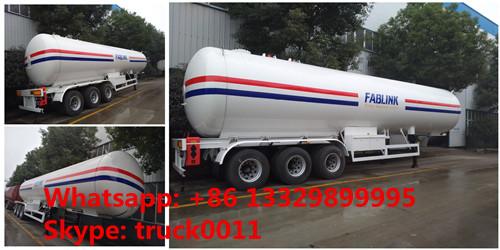

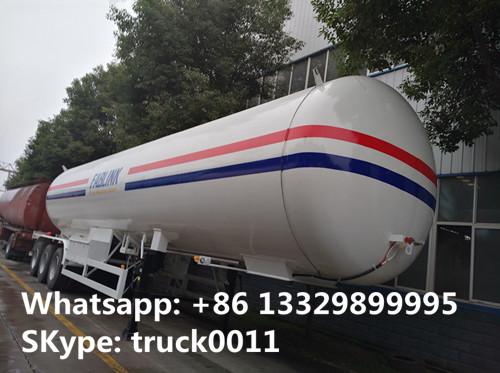

Look at the pictures of 49.6m3 bulk lpg gas tank semitrailer customized for overseas client as below
main technical parameters of hot sale 49.6m3 propane gas tank trailer as below
| Loading medium | LPG gas | Medium characteristic | flammable and combustible | Safety valve | 2*DN80 | |
| Curb mass (kg) | 15,300 | Tanker | Designed pressure(Mpa) | 1.61MPa | Designed standard GB150-2011<<pressure vessels>> GB/T19905-2005 <<Liquefied Gas Tank Car>> | |
| Loading mass(kg) | 20,832 | Filling ratio(kg/cbm) | 420 | |||
| Max total mass (kg) | 36,132 | Tanker material | Q345R | |||
| Wheelbase(mm) | 6800+1310+1310 | Tanker designed thickness(mm) | 11.05 | |||
| Front/rear suspension(mm) | -/1650 | Head designed thickness(mm) | 11.03 | |||
| Overall dimension(L*W*H)(mm) | 12740×2480×3800 | Tanker body dimension(L*W*H)(mm) | 2300*12*12,372 | Chengli Special Automobile Co., Ltd. | ||
20 metric tons LPG tank semitrailer for LPG GAS adopts 13ton FUWA triple axles, 12 sets 12.00-20 vacuum tyre, and another spare tyre, JOST 28ton outrigger, JOST traction pin, fire extinguisher bottle, anti-static tape.
The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton FUWA bridges, 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc.
49.6cbm lpg trailer is with the loading capacity of 20 metric tons, choose to install aluminum alloy sunshield cover.
The LPG tanker semi-trailer is line with the GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>.
