new brand factory sale bulk road transported lpg gas tank, HOT SALE! 2017s new cheapest price lpg gas tank semi-trailer
Factory sale best price 56,000Liters lpg gas tank trailer, 2017s bottom price new bulk road transported lpg gas trailer for sale
LPG transport semi trailer, is also called LPG trailer, LPG semitrailer, is widely used in transporting kinds of Liquefied petroleum gas, such as propane, isobutane, propylene, dimethyl , ammonia, etc. This seimtrailer can load 23.5 ton Propane, meet ASME pressure vessel Standard, it is high quality and reliable safety.
1.More than 10 years professional technology
2 Whole process quality control
3 Loading Propane 56000L
4 Special design for South America market: long wheelbase, the trailer axle with lifting device
3 axles 56cbm LPG semitrailer for isobutane, the wheelbase of the semitrailer is 6890+1310+1310 (mm), the overall dimension 12640×2500×3980 (mm), the volume is 59.5cbm; the transporting medium is propane, and the designed pressure is 0.70Mpa, the filling ratio is 0.49.
If you're interested in our CLW Brand lpg gas pressure vessels, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton BPW bridges(FUHUA bridge), 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc.
The LPG tanker semi-trailer is line with the GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>.
The data above is for your reference, we reserve the right of technical alteration/change for better improvement without prior notice. The detail is line with the contract.

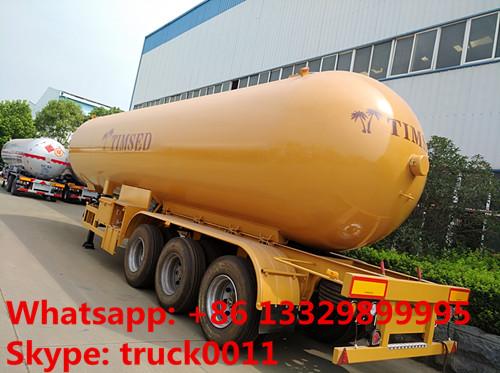

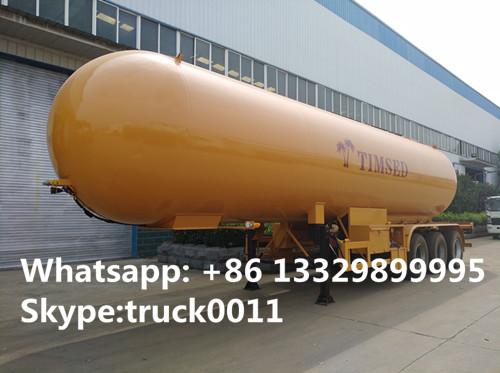

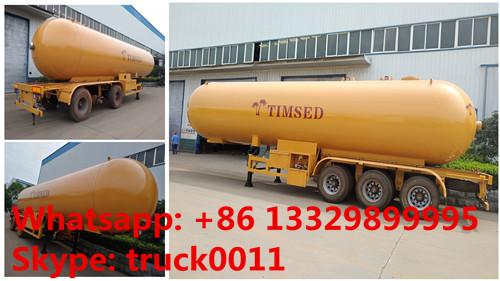

More pictures of hot sale 56,000Liters lpg gas tank trailer as below
bulk lpg gas tank trailer for sale
2017s new best price road transported lpg gas tank trailer for sale
More information, please feel free to contact Ms. Anita.
Mob./Wechat/Whatsapp: +86 13329899995
Skype: truck001
QQ: 504873236
Main Parameter of best quality for export to South America 3 axle 56000L LPG transport semi trailer:
| Main Technical Parameter | |||
| Product Model | CLW brand LPG gas semi trailer | Overall Dimension(L*W*H)(mm) | 12700×2500×3975 |
| Tank Volume(m3) | 56 | Tank Dimension(mm) | 12340×2473 |
| Payload(kg) | 23520 | Curb weight(kg) | 15480 |
| Axle number | 3 | Front/Rear axle load(Kg) | -/39000(three-axis combined) |
| Wheelbase(mm) | 6865+1310+1310 | Tank thickness(mm) | 14mm |
| Leaf spring | -/7/7/7 | Suspension type | 2 axle steel plate spring , 1 axle air suspension with lifting device |
| Storage medium | Propane | filling capacity | 0.42ton/m3 |
| Tire size | 12R22.5 12PR | Tire No: | 12 with a spare tire |
| Superstructure parameter | 1. Tank material: Q345R ,thickness 14mm, two Ellipsoidal head cover, thickness 14mm ,design pressure: 1.72Mpa ,design Temperature:-20 °C- 50°C |
||
| 2. Equipped with 13ton BPW axle, 28ton JOST outrigger, 3-1/2'' JOST King pin, | |||
| 3 Equipped with two valve boxes, two tool boxes, safety valve, thermometer, pressure gauge, emergency shut-off valve, fire extinguisher, anti-static ground tape, two side loading & unloading , independent liquid outlet, etc | |||
| 4. All accessories from China high qulity brand | |||
