China bottom price mobile skid lpg gas station with lpg gas dispenser for sale, HOT SALE! 5tons skid lpg filling plant
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years'development, Chengli Special Automobile Co., Ltd. could manufacture and supply surface/underground lpg gas storage tank, lpg gas tank semitrailer, skid lpg gas refilling plant, lpg gas truck, lpg gas bobtail vehicle, etc. More information, please feel free to contact with Ms. Anita.
The skid system tank with automobile lpg gas dispenser manufactured by Chengli Special Automobile Co., Ltd. is used for refilling of liquified petrol gas (LPG). As a major equipment of the LPG station, it is equipped with high-accuracy positive displacement flowmeter,microcomputer control, large LCD counter and various control valves and protection devices assuring operation safety.With advanced manufacturing technique, the dispenser has reliable quality and excellent performance with characteristics of precise ration, easy maintainance and centralized control. Each gun connects to an independent flow and metering system which prevents interference.
If you're interested in our lpg gas pressure vessels, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995.

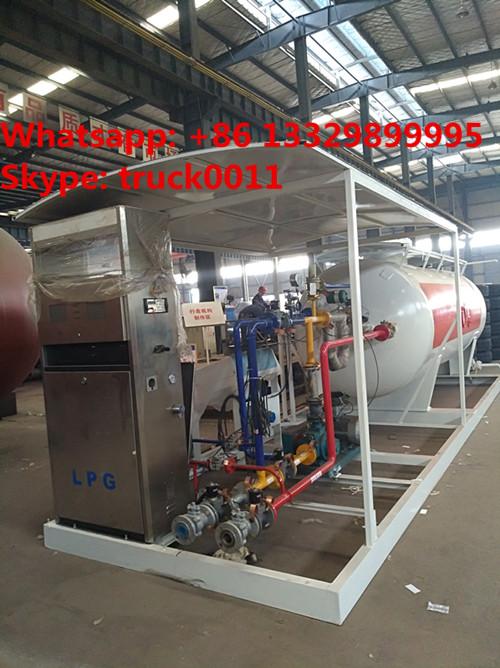

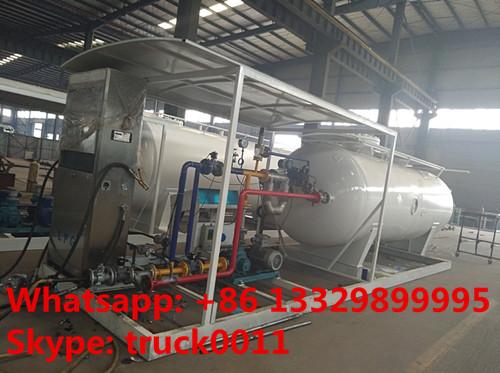

More pictures of hot sale 10m3 5tons skid lpg gas station with lpg gas dispenser as below

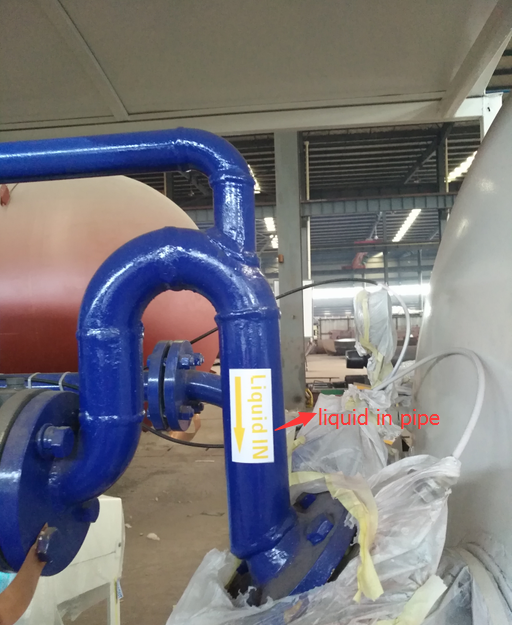

different color pipes

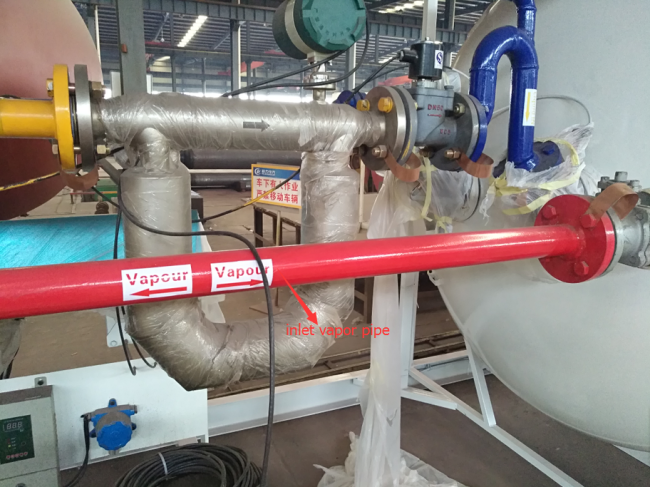

red color: vapor

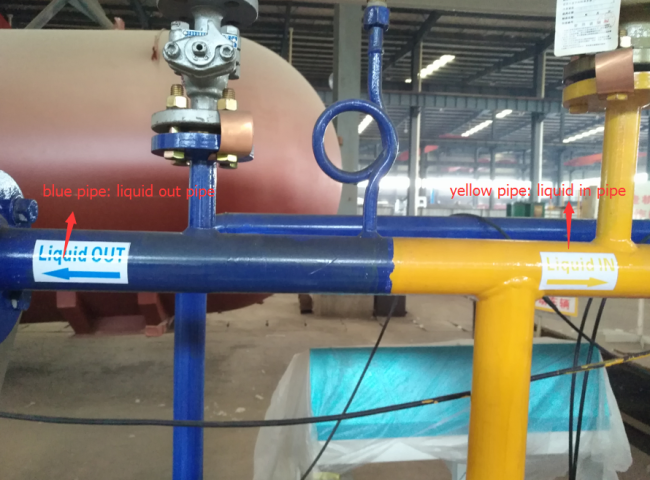

yellow color: liquid
Main technical parameters of hot sale 10m3 skid lpg gas station as below
| 10 CBM LPG TANK DIMENSIONS | ||||||
| Volume of Tank | 10,000L | |||||
| Filling Weight | 5,000kgs | |||||
| Tank Weight | 2950 kg | |||||
| Thickness of Shell (mm) | 10mm | |||||
| Thickness of Endplate (mm) | 10mm | |||||
| Tank Diameter (mm) | 1600 mm | |||||
| Tank Dimensions (mm) (length x width x height) | 6000x 1620 x 2910 mm | |||||
| External Dimensions (mm) (length x width x height) | To be designed to be loaded in a 40’container | |||||
| Material of Tank | Carbon Steel Q345R | |||||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | |||||
| Design Pressure | 1.77 Mpa | |||||
| Corrosion Allowance | 1 mm | |||||
| Medium Density | 420-520 kg/ cbm | |||||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||||||
| Main parts of LPG Tank | ||||||
| Item | Specification/ mm | Quantity | ||||
| Discharge Pipe | DN50 | 1 | ||||
| Inflow Pipe | DN50 | 1 | ||||
| Outlet | DN50 | 1 | ||||
| Gas phase balance pipes | DN50 | 2 | ||||
| Manhole | DN450 | 1 | ||||
| Drain Hole | DN50 | 1 | ||||
| Other accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | ||||||
| LPG Pump & Motor Specification | ||||||
| Pump Brand | Chinese brand lpg gas pump | |||||
| Model | YQB15-5 | |||||
| Medium | Liquid petroleum gas | |||||
| Working pressure differential | ≤0.5Mpa | |||||
| Inlet pressure | ≤1.0Mpa | |||||
| Flow Speed | 15.5m3/h | |||||
| Applied Power | 5.5kw | |||||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | |||||
| Revolution | 780r/min | |||||
| mass | 166kgs | |||||
| Motor | Chinese brand | |||||
| Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
|||||
| LPG Skid Parts list | ||
| Item | Model Number | Quantity |
| LPG Tanker | 10,000L | 1 piece |
| Pump | 2" inlet & 2" outlet | 1 Piece |
| Explosive-proof Motor | 380V with 220V adapter | 1 Piece |
| Automatic lpg dispenser | Single nozzle or double nozzles, filling automobiles or domestic gas cylinders to adjust nozzles, | 1 |
| Pipes | / | 1 Sets |
| Cut-off Valve | J41N-40 DN50 | 25 Pieces |
| J41N-40 DN15 | 10 Pieces | |
| Safety Valve | A42F-25 DN50 | 1 Piece |
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece |
| Level Gauge | Float ball type | 1 Unit |
| Discharging pipe | L=4M DN50/DN25 | 1 Piece |
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces |
| Flange | 2.5MPaDN15 | 20 Pieces |
More pictures of hot sale skid lpg gas tank with lpg gas dispenser(double filling nozzles) as below
