2021s bottom price CLW brand 10,000L mobile skid lpg gas station, skid lpg gas tank with digital scale for gas cylinder
2021s bottom price CLW brand 10,000L mobile skid lpg gas station, skid lpg gas tank with digital scale for gas cylinders for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years'development, Chengli Special Automobile Co., Ltd. could manufacture and supply surface/underground lpg gas storage tank, lpg gas tank semitrailer, skid lpg gas refilling plant, lpg gas truck, lpg gas bobtail vehicle, etc. More information, please feel free to contact with Ms. Anita.
Nowadays, more and more clients choose to purchase mobile skid lpg gas plant for their lpg gas plant business. We Chengli Special Automobile Co., Ltd. can customize skid lpg gas plant with digital scales for filling domestic gas cylinders or automatic lpg gas dispenser for automobiles. And clients can choose 1/2/3/4 digital scales install on the skid lpg gas plant upon request, or even. And they can also choose install lpg gas dispenser with 1/2/4 nozzles for automobiles.
In 2017s, our facotry have received so many orders of skid lpg gas plant. Last month, one client from Nigeria choose to install 15m3 skid lpg gas plant with 4 sets digital scales. This skid lpg tank can fill 4 domestic gas cylinders at one time. And our engineer suggest to install two sets of lpg gas pump and motor for the working of 4 sets of digital scales.
If you're interested in our skid lpg gas refilling station, please send email to truck0011@163.com or talk to Anita directly by whatsapp/Wechat: +86 13329899995.

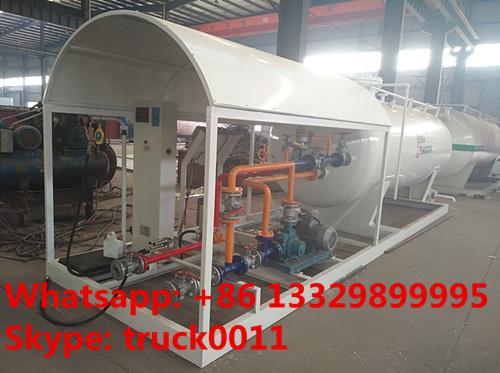

More pictures of hot sale 10,000Liters skid lpg gas station with single digital scale for filling gas cylinders as below.
lpg gas compressor

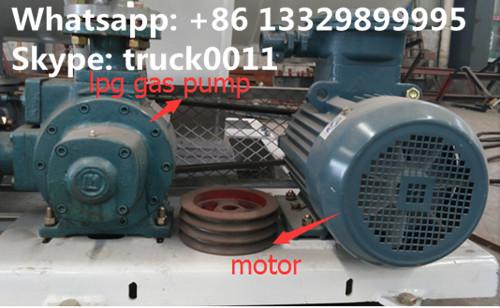

lpg gas pump with motor
main technical parameters of hot sale CLW brand 10,000Liters skid lpg gas station as below
| 10,000L LPG SKID STATION DIMENSIONS | |||
| Volume of Tank | 10,000L | ||
| Filling Weight | 5000kg | ||
| Tank Weight | 2950 kg | ||
| Thickness of Shell (mm) | 10 mm | ||
| Thickness of Endplate (mm) | 10 mm | ||
| Tank Diameter (mm) | 1600 mm | ||
| External Dimensions (mm) (length x width x height) | 6000x 1620 x 2910 mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-520 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |

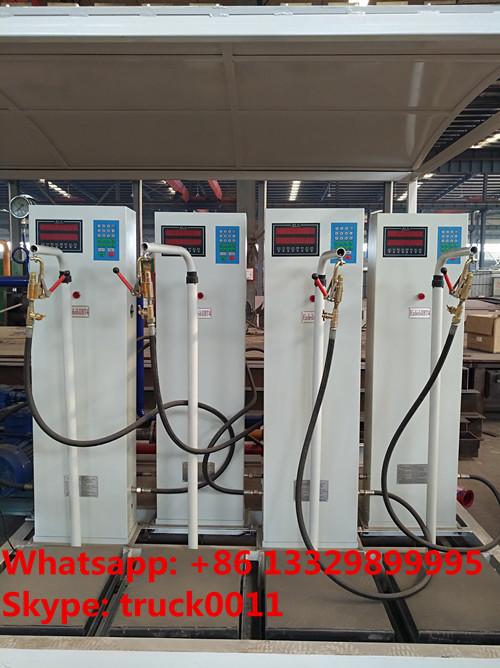

| digital LPG Filling Machine with filling nozzle |
Can fill 1 kgs to 150 kgs gas cylinder
|
1 | |
| Shock-absorbing Tube | 1 Set | ||
| Filling pump machine | 1Piece | ||
| Discharge Pipe | 5 Miters/set, | 2sets | |
| Anti static electric motor | 1 Piece | ||
| Bottom Base | 1 Unit | ||
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
|||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of bulk lpg gas storage tanks, lpg gas trailer, lpg gas delivery trucks, etc. in China since 2004s. With many years'development, OUR CLW brand pressure vessels have been exported to so many countries all over the world. Recently our CLW brand pressure vessels products pass the ASME certificate, and then our CLW lpg gas tank and lpg gas trailers could been exported to USA, Europe, Taiwan, etc. More information, please feel free to contact with Ms. Anita Deng.
Wechat/Mob/Whatsapp: +86 13329899995
Skype: truck0011
QQ: 504873236
