wholesale new bottom price 8,000Liters skid lpg gas refilling station with double digital scales for gas cylinders
wholesale bottom price 8,000Liters skid lpg gas refilling station with double digital scales for gas cylinders, HOT SALE! high quality and competitive price customized mobile skid gas cylinders filling plant
Nowadays, the mobile skid mounted lpg gas plants are very popular in Africa market. The mobile skid-mounted lpg gas plant is complete with surface lpg gas storage tank, lpg gas dispensing machine with filling nozzle, pump and motor, accessories, pipelines, etc. The clients can use it for filling gas cylinders after fetching it.
We can customixed the skid lpg gas filling station with double sets of electronic scales and filling nozzles for gas cylinders. That is to say, this skid lpg gas refilling station can fill 2 sets of gas cylinders at one time. And also choose to install ticket printer for clients. At the same time, this 8,000Liters mobile skid-mounted lpg gas refilling plant chooses to install with compressor to fill lpg gas delivery truck.
If you're interested in our lpg gas refilling station, please send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995

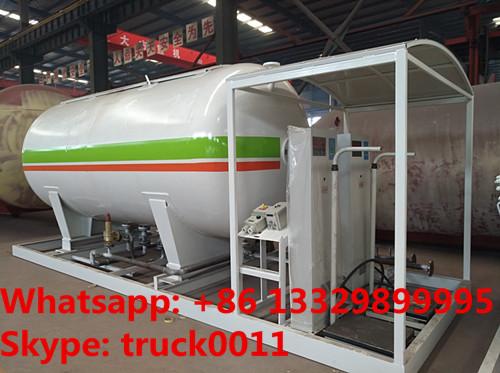

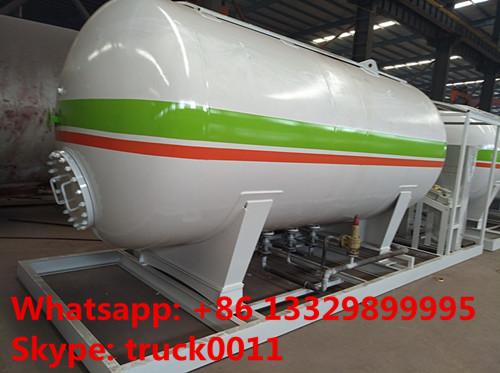

More pictures of finished 8,000Liters skid lpg gas station with double weigting scales manufactured by Chengli Special Automobile Co., Ltd. as below.
main technical parameters of hot sale 8,000Liters skid lpg gas refilling station with double weighting scales for gas cylidners as below
| 8,000Liters LPG SKID STATION DIMENSIONS | |||||||||||||||||||||||||||||||||||||||||||||||
| Volume of Tank | 8,000L | ||||||||||||||||||||||||||||||||||||||||||||||
| Filling Weight | 3192 kgs | ||||||||||||||||||||||||||||||||||||||||||||||
| Tank Weight | 2540 kgs | ||||||||||||||||||||||||||||||||||||||||||||||
| Thickness of Shell (mm) | 10 mm | ||||||||||||||||||||||||||||||||||||||||||||||
| Thickness of Endplate (mm) | 10 mm | ||||||||||||||||||||||||||||||||||||||||||||||
| Tank Diameter (mm) | 1600 mm | ||||||||||||||||||||||||||||||||||||||||||||||
| External Dimensions (mm) (length x width x height) | 5070x 1650 x 2910 mm | ||||||||||||||||||||||||||||||||||||||||||||||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||||||||||||||||||||||||||||||||||||||||||||||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||||||||||||||||||||||||||||||||||||||||||||||
| Design Pressure | 1.77 MPa | ||||||||||||||||||||||||||||||||||||||||||||||
| Corrosion Allowance | 1 mm | ||||||||||||||||||||||||||||||||||||||||||||||
| Medium Density | 420 kg/ cbm | ||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||||||||||||||||||||||||||||||||||||||||||||||
| Main parts of LPG Tank | |||||||||||||||||||||||||||||||||||||||||||||||
| Item | Specification | Quantity | |||||||||||||||||||||||||||||||||||||||||||||
| Discharge Pipe | DN50 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| Inflow Pipe | DN50 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| Outlet | DN50 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| Gas phase balance pipes | DN50 | 2 | |||||||||||||||||||||||||||||||||||||||||||||
| Manhole | DN450 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| Drain Hole | DN50 | 1 | |||||||||||||||||||||||||||||||||||||||||||||
| Electronic LPG Filling Machine |
Can fill 0.5kg to 150kg gas cylinder with receipt printing |
1 | |||||||||||||||||||||||||||||||||||||||||||||
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below.
The spare parts for the LPG Skid-station
|
|||||||||||||||||||||||||||||||||||||||||||||||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of bulk lpg gas storage tanks, lpg gas trailer, lpg gas delivery trucks, etc. in China since 2004s. With many years'development, OUR CLW brand pressure vessels have been exported to so many countries all over the world. Recently our CLW brand pressure vessels products pass the ASME certificate, and then our CLW lpg gas tank and lpg gas trailers could been exported to USA, Europe, Taiwan, etc. More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/Wechat/Mob.: +86 13329899995
Skype: truck0011
QQ: 504873236
