30m3 15tons skid lpg gas station with lpg gas dispenser for sale, Wholesale bottom price 30,000L skid lpg gas plant
factory sale best price 30m3 15tons skid lpg gas station with lpg gas dispenser for sale, Wholesale bottom price 30,000L skid lpg gas plant
The auto gas filling station is also called lpg skid tank, portable lpg station, lpg cylinder filling station,portable lpg filling kit, lpg gas filling skid station, etc. The lpg filling station for sale is usually used for lpg cylinder filling, autogas filling .
The chengli lpg skid station is consisted of lpg tank, lpg transfer pump, lpg filling scale, motor, gas hose reel with gun, pressure relief valve, thermometer, pressure gage, etc. The lpg tank is made of special material Q345R and the lpg filling scale is explosion proof type. Can be equipped with pump, filling gun , Electric filling scale that can auto filling any amount of lpg gas / propane as customer's request. SAFE AND EASY to operate!
As a china lpg vessel manufacturer, we have the aptitude to design and manufacture A2 type of pressure vessel, C2 type of lpg tank truck, C3 type of LPG tank container. The lpg storage tank for sale are horizontal lpg tank, vertical lpg tank.
The lpg tank for sale is from 5m3 lpg storage tank to 200 m3 lpg tank.
The manufacturing processing of cooking gas cylinder filling station is complex and strict. All the lpg gas tanks must do nondestructive examination, air tight test, hydrostatic test and any other inspections.
If you're interested in our skid lpg gas station, please send email to truck0011@163.com; or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.

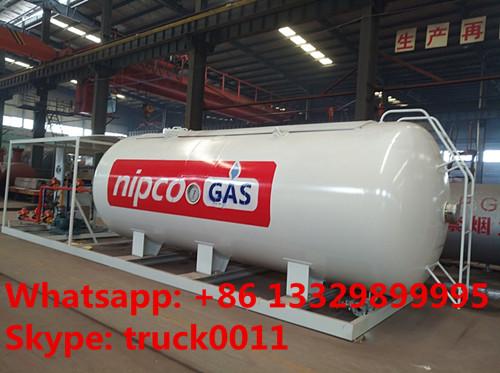

More pictures of hot sale 30,000Liters skid lpg gas refilling station with auto lpg gas dispenser as below
30m3 skid lpg gas refilling station for sale
main technical parameters of hot sale 30,000Liters skid lpg gas filling station with lpg gas dispenser as below
Technical Parameters of portable 30000 liter auto gas filling station
| Item | Item Name | Unit | Specification |
|
General information |
Product Name | LPG Tank Skid | |
| Filling Medium | LPG(Propane) | ||
| Approx.overall dimension | mm | 11600×2250×2550 | |
| Curb Weight | kg | 8500 | |
| Loading Weight | kg | 15000 | |
|
LPG Tank Parameters |
Effective Tank Volume | m³ | 30 |
| Tank Material | Q345R | ||
| Tank Thickness | mm | 12 | |
| Tank Head Thickness | mm | 12 | |
| Tank Painting | One anti corrosive paint,one primer, coat be customized. | ||
| Design Pressure | M pa | 1.77 | |
| Hydraulic test Pressure | M pa | 2.22 | |
| Corrosion Allowance | mm | 1 | |
| Heat Treatment | Stress Relief | ||
| Filling System | Gas Pump | PCS | 1 |
| Flow of Gas Pump | m³/h | 15 | |
| Power of Explosion proof Gas Pump | KW | 5.5 | |
| Electricity machine power | KW | 22 | |
| Gas dispenser | Set | 1 | |
| Equipment | Pressure gauge, safety valve, thermometer, cut-off valve, content gauge, ball valve, pipe,control box, alarm,filter, etc. | ||
More information, please feel free to contact Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13329899995
