bottom price customized surface lpg gas storage tank for sale, Factory sale cheapest 5-120m3 propane gas storage tank
The lpg gas tank is also called lpg tank, LPG storage tank, lpg tank for sale, lpg skid tank, lpg gas storage tank,bulk lpg storage tanks, propane tank, lpg pressure vessel, lpg gas bullet tank,etc. The lpg storage tank is belong to pressure vessel.
The lpg storage tank we produce are horizontal lpg tank, vertical lpg tank. toroidal lpg tank, It mainly used to store up liquid petrolum gas, propane. We also produce pressure vessel to store liquid ammonia, dimethyl , isobutane .
The lpg storage tank is made of special material Q345R. As a professional lpg tank manufacturer in China, we have the aptitude to design and manufacture A2 type of pressure vessel, C2 type of lpg tank truck, C3 type of LPG tank container. The lpg tank we produce is from 5 cubic meter to 120 cubic meter.
The manufacturing processing of lpg tank is complex and strict. All the lpg gas tanks must do nondestructive examination, air tight test, hydrostatic test and any other inspections.
Advantages of chengli brand new LPG gas tank for sale
a.) Fixed-point procurement of raw material manufacturer
b.) Strictly inspection for incoming material
c.) Vigorous production process
d.) Nondestructive examination / 100% X-ray testing
e.) Water pressure and air tightness testing
f.) Excellent safety device, long service time
If you're interested in our CLW brand lpg gas storage tanks, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
HOT SALE!surface propane gas storage tank for sale
Tank shaped use the advanced welding technology, end socket arc butt welding, and the once-forming of composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition. Be applied to transport varied oil, fuel and chemical material, such as natural gas, liquefied petroleum gas, liquefied ammonia, carbon bisulfide, epoxy ethane,gas, butane, dimethylmethane, propylene, etc. Cross section of tank could be oval, round and round-square. heat insulation and heating device is optional.

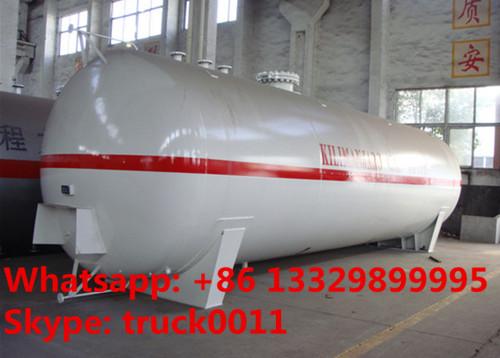

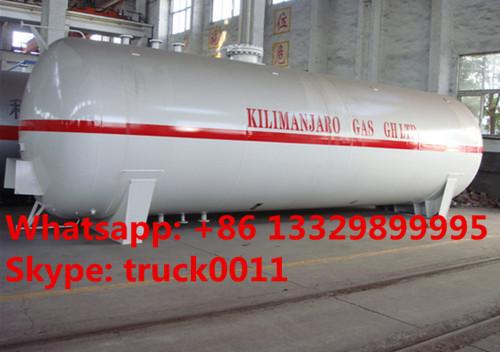

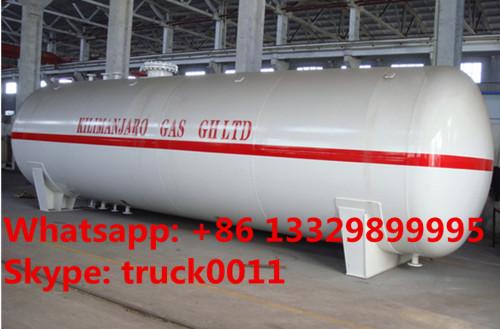

main technical parameters of hot sale CLW brand 60,000Liters surface lpg gas storage tank as below
| Item | Unit | Main parameters |
| Product name | LPG gas storage tank(60000L) | |
| Product model | CLG2700-60 | |
| Loading medium | LPG gas (propane) | |
| Overall dimension(L*W*H) | mm | 10962*2728*3318 |
| Tank dimension(inner diameter*thickness*length) | mm | DN2700*14*10962 |
| Tank volume | m3 | 60 |
| Tank thickness | mm | 14 |
| End heads thickness | mm | 16 |
| Curb mass | kg | 12750 |
| Loading capacity | Kg | 23940 |
| Designed pressure | Mpa | 1.77 |
| Working pressure | Mpa | ≤1.6 |
| Working temperature | ℃ | ≤50 |
| Hydraulic test pressure | Mpa | 2.22 |
| Air tight test pressure | Mpa | 1.77 |
| Tank and main Material pressure components | Q345R,16Mnlll | |
| Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
|
| Chosen safety fittings |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
|
