Customized FOTON AUMARK 4*2 RHD 20m3 farm-oriented and livestock poultry feed truck for sale, bulk animal feed truck
Customized FOTON AUMARK 4*2 RHD 20m3 farm-oriented and livestock poultry feed transported truck for sale, factory sale bottom price FOTON 168hp diesel 8tons-10tons poultry feed pellet truck
main technical parameters of hot sale FOTON AUMARK 4*2 10tons poultry animal feed transported truck manufactured by Chengli Special Automobile Co., Ltd. a
| Product brand | CLW | Product name | Foton Aumark 4*2 RHD 12ton feed truck for sale | Emission standard | Euro 3 diesel |
| Chassis brand | Foton Aumark | Drive type | 4*2 RHD, LHD is selective | Displacement(ml) | 3760 |
| Engine model | Cummins ISF3.8s3168 | Power | 125KW/170hp | Total mass(KG) | 15800 |
| wheelbase(mm) | 4700 | Transmission | 6 speed | Rated mass(KG) | 7435 |
| Tyre nos. | 4*2 | Tyre specification | 9R22.5*6 +1 | Curb mass(KG) | 8170 |
| Overall dimension (mm) | 8990X2445X3610 | Max speed | 90 | Feed tank loading capacity | 8tons-10tons |
| Driver cab |
Foton Aumark one row and a sleeper front reversible driver cab
|
Air-conditioner | Yes | ||
| Gearbox | ZF E2407 | Rear axle | 10tons rear axle | ||
| Axles | Front disk and rear drum type | Power steering | Yes | ||
| Feed tank volume | 20cbm | Discharging speed | 500-600 kg/min |
| Full discharging time | 18mins | Discharging max elevation | 70 degree |
| Horizontal feeding range | 6.5m | Rotation angle of discharging | 180 degree |
| Vertical feeding range | 8.3m | Compartments | 3 compartments loading 3 different kinds of feeds |
| Residual rate | No more than 0.10 | Horizontal max range(m) | 7.2 |
| Vertical max range(m) | 8.2 | ||
| Discharging way | Electronic system discharging | ||
| Hydraulic system discharging | |||
1, CLW bulk feed truck adopts electronic auger type transferring feeds, putting on 380 Volt three mutually alternate current, then working. Discharging is by electronic motor driven the screw mechanism with high speed, continuous working, highly improving the working productiveness. .
2, for the density of the feeds is various, so the loading tonnage is also various. The tank volume is 20cbm. When the feeds density is 0.55ton/cbm, 0.6ton/cbm, 0.7ton/cbm, the loading mass is 11ton, 12ton, 14ton.
3, the bulk feeds truck adopts the special bulk feeds truck chassis, widely for long distance transportation, large size feedstuff factories, etc.
4, Different feeds delivering type decides different speed. Please consider the real areas to choose electronic auger or hydraulic auger, etc.
5, Producing time: 10 working days.
If you'rei nterested in our bulk feed truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995
Website: www.trucksinchina.com

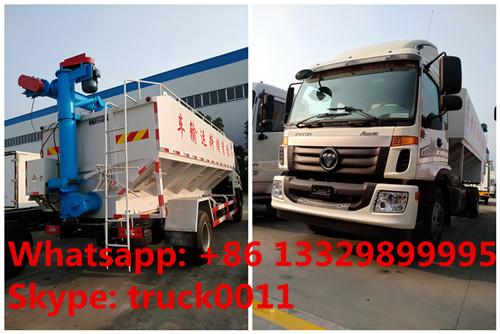

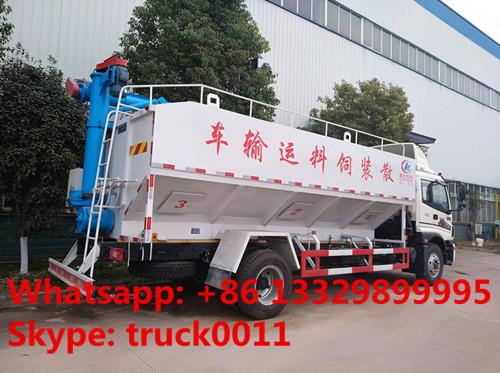

More pictures of hot sale FOTON AUMARK 4*2 10tons bulk feed truck as below.
high quality and competitive price FOTON AUMARK 20m3 poultry feed truck for sale
HOT SALE!FOTON AUMARK 4*2 RHD 10T farm-oriented and livestock poultry feed truck
Factory sale bottom price CLW brand RHD 20m3 poultry feed transported truck
Chengli Special Automobile Co., Ltd. Is the leading manufacturer and supplier of feed trucks in China. With many years’ development, we Chengli Company can manufacture and sell farm-oriented feed trucks(electronic system discharging or hydraulic system discharging) from 8m3 to 40m3 and 40m3-50m3 animal feed transported semitrailer, etc. And more and more CLW Brand feed trucks have been exported all over the world.
More information, please feel free to contact Ms. Anita Deng.
Whatsapp/Wechat/Mob.: +86 13329899995
Skype: truck0011
QQ: 504873236
