Factory sale lowest price China-made bulk road transported lpg gas tank, Wholesale best price lpg gas tank trailer
Factory sale lowest price China-made bulk road transported lpg gas tank, Wholesale best price lpg gas tank trailer
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl , methanol, butadiene, butane, ethylene oxide, etc.in low pressure liquefied gases at room temperature; volume from 10 cubic meters --- 120 cubic optional. Besides, the lpg gas tank, Chengli Special Automobile Co., Ltd. could offer lpg gas trailer, lpg gas tank, lpg gas delivery truck, lpg gas dispenser vehicle, skid lpg gas filling plant, etc. More information, please feel free to contact with Ms. Anita Deng.
The LPG tanker semi-trailer manufactured by Chengli Special Automobile Co., Ltd. is line with the GB150-1998
if you're interested in our CLW Brand lpg gas tank trailer, please kindly send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Main technical parameters of hot sale CLW brand lpg gas tank semitrailer manufactured by Chengli Special Automobile Co., Ltd. as below.
| Item | Unit | Parameters | ||
| Product name | LPG Tank Semi-trailer(CLW9360GYQ) | |||
| Fact Volume | M3 | 49.6 | ||
| Loading capacity | kg | 20832 | ||
| GVW | 36132 | |||
| Mass in working order | 15300 | |||
| Overall dimensions | mm | 12740×2480×3800 | ||
| Number of axles | 3 | |||
| Wheel base | 6800+1310+1310 | |||
| Track base | Front | - | ||
| Rear | 1840 | |||
| F/R overhang | mm | -/1650 | ||
| Tire specification | 11.00R20 12PR | |||
| Special configuration | Tank material | Q345R | ||
| Standard configuration | 12 tons BPW axle, Single fluid, double side loading and unloading, double valve box, double toolbox, relief valve, thermometer, pressure gauge, emergency shut-off valve, JOST leg, JOST drawing pin, fire bottle, static adhesive tape, plastic fender. | |||
| Others | Filling medium: LPG; Design pressure 1.77 Mpa, the design temperature of 50℃, filling ratio: 0.42 t/m3, corrosion allowance: 1 mm; The shape of tank size: 12340×2473 mm | |||
| Manufacturing standards | GB150 "pressure vessel" and "the transportable pressure vessel safety technology supervision regulation". | |||
| FOB SHANGHAI | USD | |||

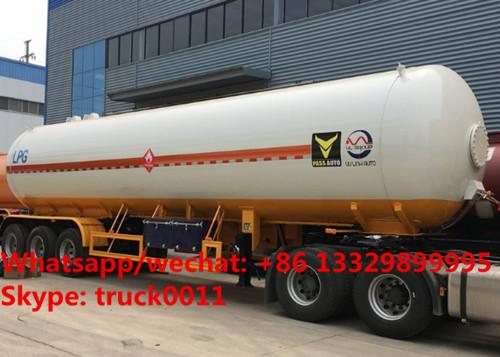

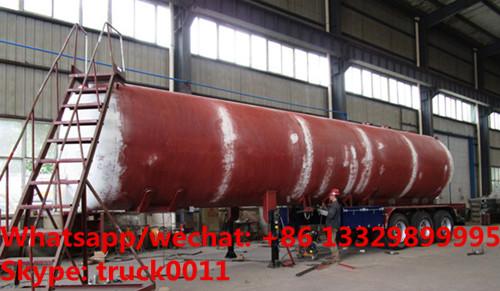

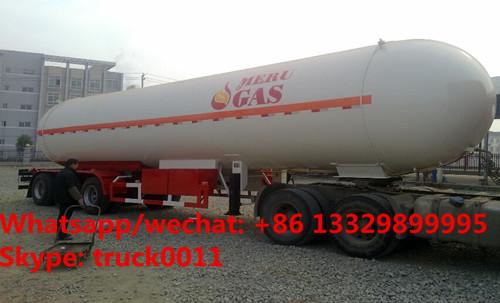

More pictures of hot sale CLW brand 20tons bulk lpg gas tank semitrailer manufactured by Chengli Special Automobile Co., Ltd. as below.
high quality and competitice price bulk lpg gas tank trailer for sale
factory sale best price CLW brand bulk road transported lpg gas tank
20 metric tons LPG tank semitrailer for LPG GAS adopts 13ton FUWA triple axles, 12 sets 12.00-20 vacuum tyre, and another spare tyre, JOST 28ton outrigger, JOST traction pin, fire extinguisher bottle, anti-static tape.
The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton FUWA bridges, 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc.
49.6cbm lpg trailer is with the loading capacity of 20 metric tons, choose to install aluminum alloy sunshield cover.
The LPG tanker semi-trailer is line with the GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>.
More information, please feel free to contact with Ms.Anita.
Whatsapp/Wechat/Mob.: +86 13329899995
Skype: truck0011
QQ: 504873236
