China made high quality and lower price 10cbm mobile skid lpg gas storage tank with digital weighting scale for sale
China made high quality and lower price 10cbm mobile skid lpg gas storage tank with digital weighting scale for sale, HOT SALE! 10m3 skid lpg gas refilling plant for gas cylinders
mobile skid lpg gas refilling plant with double electronic scales and refilling nozzles for sale
Mobile skid lpg gas filling station is mainly used for filling domestic lpg gas cylinders and lpg gas trucks.
The skid system lpg gas refilling station is made up of lpg gas tank, accessories for lpg tank, lpg gas pump and motor, electronic scale with filling nozzles(electronic lpg gas dispenser), safe electronic system, etc.
Skid system lpg with automobile lpg dispenser can fill not only the domestic gas cylinders, but also automobiles, mainly city buses, just to adjust the nozzles.
There are various models available with LPG storage tank capacity ranging from 3000 Liters to 120000 Liters and with the choice of single or double nozzle LPG dispensers.
The unit comes with all safety features as per norms.
The unit is easy to install and operate and much cheaper as compared to other plants.
2.Standard features of skid lpg gas plants as below
1) Minimum Installation Area.
2) Self Filling System.
3) Available for 24hrs.
4) Lowest Installation Cost.
5) Portable System.
3．Technical data
1) Delivered product: LPG
2) Temperature range: -20℃～50℃
3) Design pressure:1.8Mpa
4) Flow rate: depending on the type of pump installed
5) Tension: 380V/50Hz
4. LPG Skid Equipment
1) LPG storage tank
2) LPG pump
3) LPG ball valves
4) other equipments
If you're interested in our mobile skid lpg gas refilling station, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995.

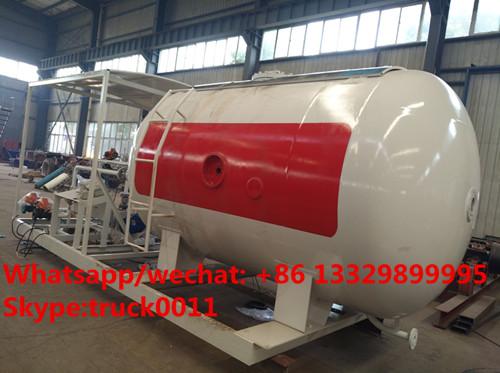

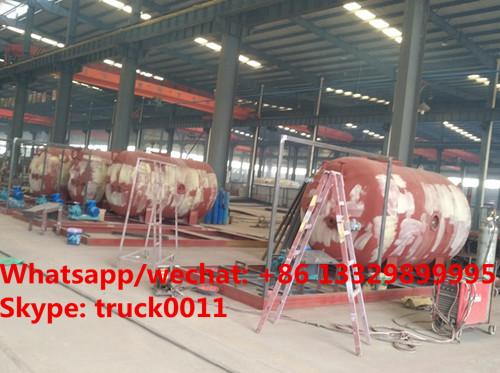

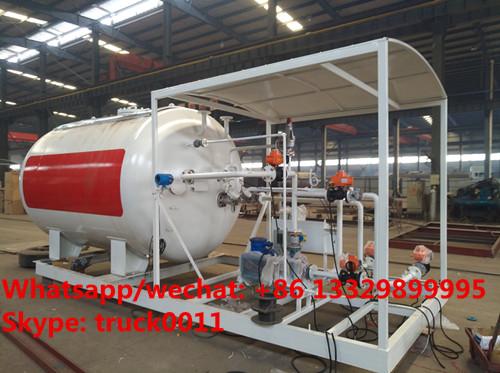

More pictures of hot sale customized 10m3 mobile skid lpg gas refilling station for gas cylinders as below
customized 10m3 skid lpg gas station for sale
high quality and competitive price 10,000Liters mobile skid lpg gas station for filling gas cylinders for sale
The main spcifications for 10cbm capacity Lpg skid station LPG storage tank with lpg fiiling scale
| 10 CBM LPG TANKER DIMENSIONS | |||
| Volume of Tank | 10 CBM | ||
| Filling Weight | 5000kg | ||
| Tank Weight | 2950 kg | ||
| Thickness of Shell (mm) | 10 mm | ||
| Thickness of Endplate (mm) | 10 mm | ||
| Tank Diameter (mm) | 1600 mm | ||
| Tank Dimensions (mm) (length x width x height) | 5260 x1620x2210 mm | ||
| External Dimensions (mm) (length x width x height) | To be designed to be loaded in a 40’HQ container mm | ||
| Material of Tank | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-590 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification/ mm | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
| LPG Skid Part list | ||||
| Item | Model Number | Quantity | ||
| LPG Tanker | 10 cbm | 1 piece | ||
| Pump | 2" inlet & 2" outlet | 1 Piece | ||
| Explosive-proof Motor | 380V with 220V adapter | 1 Piece | ||
| Weighting Scale | Can fill 0.5kg to 150kg LPG cylinder | 1 Piece | ||
| Pipes | / | 1 Sets | ||
| Cut-off Valve | J41N-40 DN50 | 25 Pieces | ||
| J41N-40 DN15 | 10 Pieces | |||
| Safety Valve | A42F-25 DN50 | 1 Piece | ||
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece | ||
| Level Gauge | Float ball type | 1 Unit | ||
| Discharging pipe | L=4M DN50/DN25 | 1 Piece | ||
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces | ||
| Flange | 2.5MPaDN15 | 20 Pieces | ||
| LPG Pump & Motor Specification | ||||
| Pump Brand | Chinese brand | |||
| Model | YQB15-5 | |||
| Medium | Liquid petroleum gas | |||
| Working pressure differential | ≤0.5Mpa | |||
| Flow Speed | 15.5M3/H | |||
| Applied Power | 5.5kw | |||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | |||
| Motor | Chinese brand | |||
| Specification |
7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
|||
| LPG Cylinder Filling Machine Specification | ||||
|
|
Brand | Kaiyuan | ||
| Model | BCS-150 | |||
| Electricity Voltage | AC220V | |||
| Power | 40W | |||
| Maximum Weighing | 150kg | |||
| Measurement Precision | ±0.5% | |||
| Rated Working Pressure | 1.6Mpa | |||
| Working Temperature | -40℃~+40℃ | |||
| Anti-explosion Rate | Exhibit II BT4 | |||
More information, please contact with Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13329899995
Skype: truck0011
QQ: 504873236
