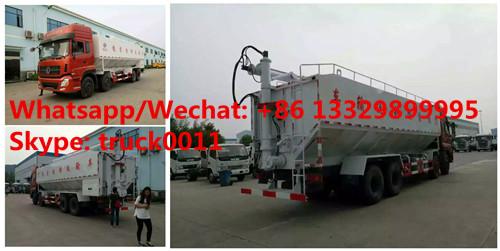

Factory customized dongfeng 8*4 LHD Euro 3 315hp diesel 40m3 poultry feed transported vehicle for sale, bulk feed truck
The bulk feed tank delivery truck manufactured by our company is a kind of special transportation vehicle refitted on the second type chassis or the cargo trucks clients offered, then choosing the high quality and high strength carbon steel, welded the tank; equipped with electronic auger discharging system. Bulk feed tank is made up of chassis, loading feed pellet tank, discharging auger system and electro hydraulic operation system, etc.
The advantages of the bulk feed tank truck manufactured by our company are as below
a, the feed tank adopts high quality carbon steel, automatically welded.
b, with different compartments to loading and discharging different kinds of feed.
c, electro hydraulic auger discharging system saving manpower and time
d, easy to loading and discharging
e, fewer residue with beautiful overlooking.
f,our feed truck always hold the lead in the similar products.
Usage of CLW brand poultry feed transported truck manufactured by Chengli Special Automobile Co., Ltd. as below
Bulk feed delivery truck is main used for delivering, loading and discharging of feed pellets of different feed factories, large-type poultry farms, and also for transporting some non-corrosive feed pellets, such as pellets from pharmaceutical factory and turnover of grain depots, etc. the feed trucks manufactured by Chengli Special Automobile Co., Ltd. can transporting various feed pellet with the different compartments, the dream transporting vehicles for poultry farms and feed factories.
Chengli Special Automobile Co., Ltd. Is the leading manufacturer and supplier of feed trucks in China. With many years’ development, we Chengli Company can manufacture and sell farm-oriented feed trucks(electronic system discharging or hydraulic system discharging) from 8m3 to 40m3 and 40m3-50m3 animal feed transported semitrailer, etc. And more and more CLW Brand feed trucks have been exported all over the world.

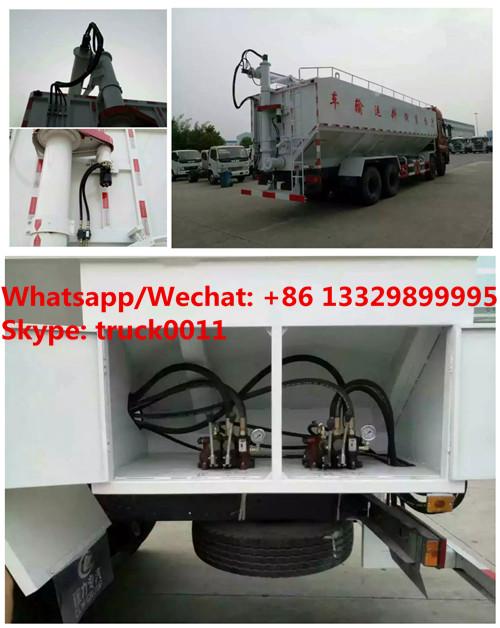

The hydraulic auger cattle feed transport truck is made up of tank assembly, conveying system( including horizontal discharging system, vertical discharging system and active discharging system), hydraulic system, etc. And the movable discharging auger on the tank top can rotation and lifting freely.
If you're interested in our bulk feed truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of dongfeng 8*4 LHD hydraulic poultry feed transported vehicle manufactured by Chengli Special Automobile Co., Ltd. as below
| Main technical parameters | ||
| Product name | Dongfeng 8*4 LHD hydraulic feed truck | |
| Overall dimension(L*W*H) (mm) | 12000*2500*3995 | |
| Volume | 40m3 | |
| Curb mass(Kg) | 15505 | |
| Max speed | 85km/h | |
| Transmission | Fastgear 9 speed gearbox | |
| Tyre nos. | 12+1 | |
| Driver cab | Dongfeng tianlong luxurious driver cab | |
| Engine model |
L315 30 cummins engine
|
|
| Engine emission standard | Euro 3 | |
| Engine power | 231KW/315hp | |
| Engine displacement(ml) | 8900ml | |
| Feed tank | ||
| Volume | 40cubic meters | |
| Discharging way | Hydraulic system discharging | |
| Compartments | 4 compartments with 4 different kinds feed | |
| Average discharging speed(kg/min) | 500-600 kg/min or 1m3/min | |
| Full discharging time (minutes) | About 35 minutes | |
| Rotation angle of auger when discharging | ±180 degree | |
| max elevation angle of auger when discharging | 70 degree | |
| Discharging rotation degree | Unilateral 180 degree | |
| Delivery distance | Horizontal max range(m) | 6.5 |
| Vertical max range(m) | 8.3-8.5m | |
| Residual rate | No more than 0.10 | |
