HOT SALE! high quality and competitive price dongfeng 4*2 RHD road sweeping vehicle, Factory sale best price Dongfeng 4*
HOT SALE! high quality and competitive price dongfeng 4*2 RHD road sweeping vehicle, Factory sale best price Dongfeng 4*2 street sweeper truck
The road sweeper truck adopts middle 4pcs cleaning brushs,and rear installate suction mouth,so the truck cleaning effect is good ,and the truck water tanker and garbage box made by SS340 stainless steel ; Garbage box and the water tank is an integral structure, water tank in the dustbin garbage box bottom plate bottom pretilt angle up to 12°, easy to dump clean. Garbage box is arranged on the top of the guide groove and a larger area of the filtering net, can fully improve the efficiency of dust removal, so that garbage piles evenly, increase effective capacity, reduced due to a blocked filter and the air resistance.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of sweeper truck in China. With many years' development, Chengli Special Automobile Co., Ltd. could offer dongfeng brand small road sweeper truck, ISUZU road sweeper, JAC brand street sweeper, JMC road cleaning truck, FAW brand road sweeping vehicle, Forland road sweeper truck, etc. More information, please feel free to contact with Ms. Anita.
main technical parameters of dongfeng road sweeper truck as be below
| Main parameters | |||
| Product name | Dongfeng duolika road sweeper truck | ||
| Total mass(Kg): | 8495 | Overall dimension(L*W*H)(mm): | 5980×2140×2500 |
| Rated mass(Kg): | 3100 | Cargo body dimension (mm): | ×× |
| Curb mass(Kg): | 5200 | approach/departure angle(° ): | 24/13 |
| Emission standard | Euro 3 | Max speed(km/h): | 90 |
| Engine parameters | |||
| Engine model | Manufacturer | Displacement (ml) | Power (kw) |
| CY4102-C3C | Chaochai | 3856 | 88 |
| Engine type | 4 cylinders in line, inter-cooling | ||
| Chassis parameters | |||
| Chassis model | EQ1081TJ12D1 | Fuel type | Diesel |
| wheelbase | 3800mm | Axle load(kg) | 3300/5195 |
| Gearbox | 5 speed gearbox | Axle | 2.4ton front axle/4.2ton rear axle |
| Braking | Air braking and exhaust braking | Battery | Camel Brand battery |
| Driver cab | Dongfeng duolika 4*2 LHD single row driver cab, RHD is selective | ||
| Tyre specification | 7.50R16 *6 | ||
| Sweeping ability | |||
| Auxiliary engine | JX493G | ||
| Engine Power | 57 kW/ 77.5hp | ||
| Max speed | ≥95km/h | ||
| Sweeping width | ≥3-3.3 m | ||
| Clean water tanker volume | 1-1.5m3 | ||
| Wastes van volume | 3.5-4.5 m3 | ||
| Working speed | 3～15km/h | ||
| Max working ability | 50000 m2/h | ||
| Max sucking particle size | 100 mm | ||
| Sweeping efficiency | ≥99% | ||
| Road sweeper truck structure |
The truck is installed with middle 4pcs cleaning brushes, and rear part with suction mouth, so the truck cleaning effect is good and the truck water tanker and garbage box made by SS340 stainless steel. Garbage box and the water tank is an integral structure, water tank in the dustbin garbage box bottom plate bottom pretilt angle up to 12°, easy to dump clean. Garbage box is arranged on the top of the guide groove and a larger area of the filtering net, can fully improve the efficiency of dust removal, so that garbage piles evenly, increase effective capacity, reduced due to a blocked filter and the air resistance. |
||

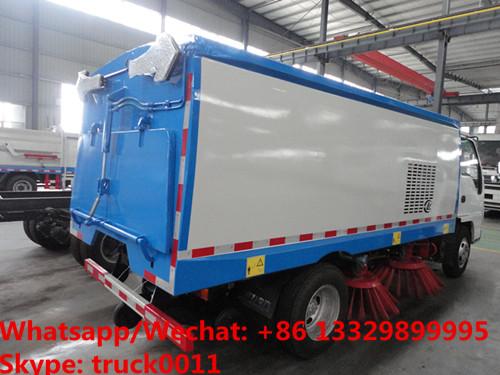

More pictures of ISUZU road sweeping truck manufactured by Chengli Special Automobile Co., Ltd. as below
HOT SALE! High quality and compeititve price ISUZU road sweeper truck
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat: +86 13329899995
Website: www.trucksinchina.com
QQ: 504873236
