new good price RHD DONGFENG 14m 1-6m aerial platform truck vehicle in Tanzania for sale, overhead platform working truck
new RHD DONGFENG 14m 1-6m aerial platform truck vehicle in Tanzania for sale, 14m-16m hydraulic overhead working platform vehicle for sale
Aerial platform vehicles is also named high-altitude operation truck, refers to the special vehicles for aerial operation with the delivery of staff and the equipment to the scene.
2. We are professional factory, supply Dongfeng aerial vehicles, JMC aerial working vehicles, JAC aerial platform vehicles, Qingling high-altitude working truck, Foton aerial platform operating vehicles, etc., working height of 8-24 meters for choose.
3. Produced by the high-altitude operation vehicles, using double lift hydraulic cylinder, up and down a total of four hydraulic cylinders, the conventional aerial vehicles only two lifting cylinders, double lift hydraulic cylinder in the lift, rotation process does not tremble, do not shake, stability Sex, safety is better.
4. High-altitude operation vehicles using domestic or imported reversing valve and hydraulic cylinder, for the balance, flexible and convenient operation, outrigger and work arm interlocking, outrigger and work arm interlock to prevent misuse over.
5. Installed four hydraulic legs, to ensure vehicle stability and safety in operation.
6. Optional aerial crane hook, hook hanging 1 ton and the electronic control system.
7. Aerial platform vehicles can be up and down operation, 360-degree rotation, install the hand throttle.
8. If you have any special requirements for the aerial vehicles, please let us know, we can design for you.
If you're interested in our dongfeng RHD 12-16m high altitude operation truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

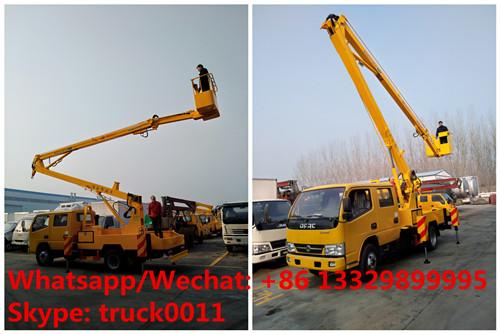

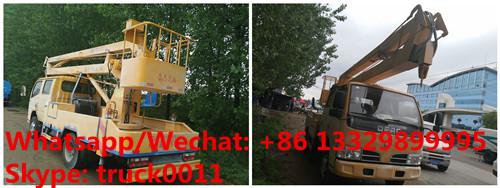

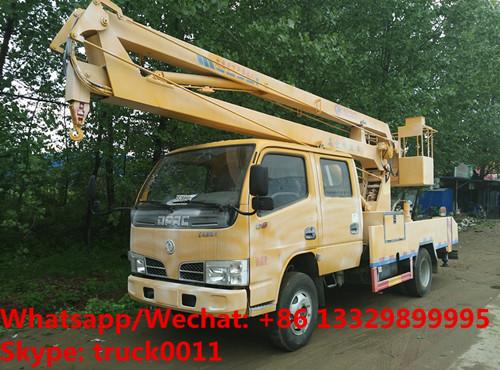

More pictures of dongfeng RHD 12-16m high altitude operation truck as below
customized dongfeng 12-16m High altitude operation truck for sale
HOT SALE!Dongfeng 12-16m aerial working platform truck
main technical parameters of dongfeng 4*2 RHD 12-16m high altitude operation truck for sale
| Item | unit | parameter | ||
| Vehicle model | High Altitude Operation Truck CLW5051JGKZ4 | |||
| Chassis model | DFA1070DJ35D6 | |||
| Overall dimensions | mm | 7400×1980×3100 | ||
| Operation Height | m | 12-14 | ||
| Mass in working order | kg | Appro×5000 | ||
| Body internal dimensions | mm | / | ||
| Wheel base | 3300 | |||
| F/R track base | 1506/1466 | |||
| Approach/departure angle | ° | 19/11 | ||
| Exhaust/kw | ml/kw | 2771/75 | ||
| Max speed | km/h | 90 | ||
| Tire specification | 7.00-16 | Engine type | D28D10-4DA | |
| Traction system | 4×2 | transmission | 5-speed with over drive | |
| Number of axles | 2 | Electric system | 24v | |
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2+3 | |
| Equipment | max operation height=14m,max operation radius>5.7m,max working platform height>11.5m, working platform rating loading=200kg, working platform rating allowable passengers=2,working platform dimension : 1100*570*1000mm, 360°turning(left or right),4 H-shape legs. | |||
| Engine | Dongfeng light Engine CO.,LTD | |||
| Production cycle | 15-20 days | |||
| Warranty | 12 month, from the date of supply | |||
| FOB Shanghai | USD | |||
