Factory sale good price 15CBM mobile skid lpg gas refilling station with 1-2 electronic scales for Nigerian market
Factory sale good price 15CBM mobile skid lpg gas refilling station with 1-2 electronic scales for Nigerian market, HOT SALE! CLW brand 15m3 skid gas cylinders filling station
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of bulk lpg gas storage tanks, lpg gas trailer, lpg gas delivery trucks, etc. in China since 2004s. With many years'development, OUR CLW brand pressure vessels have been exported to so many countries all over the world. Recently our CLW brand pressure vessels products pass the ASME certificate, and then our CLW lpg gas tank and lpg gas trailers could been exported to USA, Europe, Taiwan, etc. More information, please feel free to contact with Ms. Anita Deng.
And the skid lpg gas station series are very popular for in Africa in 2016-2018s. The finished full set of skid-mounted lpg gas plant is well-appinted, installed with lpg gas vane pump, motor, electronic scale etc. The clients can use it to fill gas cylinders directly. And at the same time, we can design and manufacture ASME standard ones. The mobile skid-mounted lpg gas plant is ask for higher installing quality. more and more clients choose our CLW brand company, that is to say our CLW brand lpg gas pressure vessels gain acceptance at home and overseas.
If you're interested in our skid lpg gas refilling station, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995.
Today, we will introudce CLW 15cbm skid lpg gas refilling station with 1-2 scales as below
HOT SALE!CLW brand 15m3 skid lpg gas refilling station with 2 scales

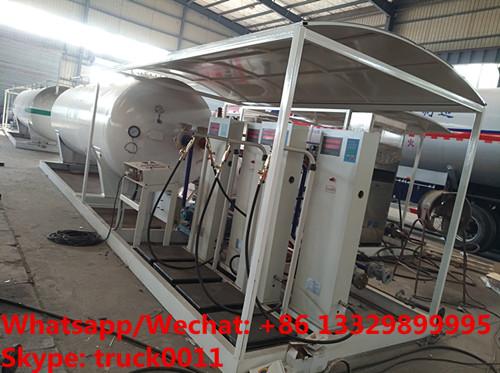

High quality and competitive price CLW 15CBM mobile skid propaneg as filling plant with single scale
main technical parameters of CLW 15cbm skid lpg gas refilling station with 1-2 scales as below
| LPG Skid Parts list | ||||
| Item | Model Number | Quantity | ||
| LPG Tank | 15,000L | 1 piece | ||
| approximate Overall dimension(L*W*H) | 8924*1820*2610 ( mm) | Suitable for 40’ container | ||
| Pump | 2" inlet & 2" outlet | 1Piece | ||
| Explosive-proof Motor | 380V with 220V adapter | 1 Piece | ||
| Electronic Weighting Scale with filling nozzles | Can fill 1kg to 150kg LPG cylinders | 1-2 pieces | ||
| Pipes | / | 1 Sets | ||
| Cut-off Valve | / | |||
| Safety Valve | / | |||
| Pipe Safety Valve | / | |||
| Level Gauge | Float ball type | 1 piece | ||
| Discharging pipe | / | |||
| Shock-absorbing Tube | / | |||
| Flange | / | |||
| LPG Pump & Motor Specification | ||||
| Pump Brand | Chinese brand lpg gas pump | |||
| Model | YQB15-5 | |||
| Medium | Liquid petroleum gas(LPG GAS) | |||
| Working pressure differential | ≤0.5Mpa | |||
| Inlet pressure | ≤1.0Mpa | |||
| Flow Speed | 15.5m3/h | |||
| Applied Power | 5.5kw | |||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | |||
| Revolution | 780r/min | |||
| mass | 166kgs | |||
| Motor | Chinese brand flameproof type Three-phase asynchronous motor | |||
| Model | YBF2-1325-4 | |||
| Rated power | 5.5KW | |||
| Voltages | 380/660V 11.6/6.69A 50Hz | |||
| Anti-explosion Rate | Exhibit II BT4 | |||
| Rotation speed | 1460r/min | |||
| Insulation Level | F class | |||
| Net weight | 81kgs | |||
| Rotation spee | 730r/min | |||
| Adapter(inverter) | Adapt 3 phase 380V to 2 phase 220V/240V if needed | |||
| Lpg gas pump and motor nos. | 1 piece | |||
| LPG Cylinder electronic Filling Machines Specification | ||||
| Brand | Chinese Brand | |||
| Model | BCS-150 | |||
| Power supply available | 220V 50HZ | |||
| Rated power | 30W | |||
| Max weighting capacity | 150kg | |||
| Mini weighting capacity | 1kg | |||
| Measurement Precision | ±0.5% | |||
| Accuracy Level | Ⅲ | |||
| Certified Division value | 50g | |||
| Anti-explosion Rate | Exhibit II BT4 | |||
| Weighing station size | 535*425mm | |||
| Electronic scales No. | 1-2 sets | |||
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
