High quality factory sale best price CLW brand 50m3 bulk propane gas tank semitrailer for sale, lpg gas trailer for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’ development, Chengli Special Automobile Co., Ltd. could offer bulk surface lpg gas storage tank, underground lpg gas storage tank,. Lpg gas trailer, lpg gas truck, skid lpg gas plant, etc. We can customize lpg gas pressure vessels. Recently, we have passed US ASME standard certificates. And our CLW brand lpg gas pressure vessels can be exported to USA, etc. More information, please feel free to contact with Ms. Anita.
Lpg trailer kinpin:90# or 50#
LPG gas trailer landing gear :TFOC ,FUWA,JOST brand ,etc
Propane gas trailer axles :FUWA,BPW brand etc
Tri-axles propane trailer equipment :Equipped with safety valve ,liquid gauge ,pressure gauge ,temperature gauge ,urgent cut off valve ,valve box ,fire extinguish,anti static belt ,well-secured fenders and mudguards,tire well-secured ,fenders and mudguards,tool box for two side.
If you're interested in our lpg gas tank semitrailer, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995.

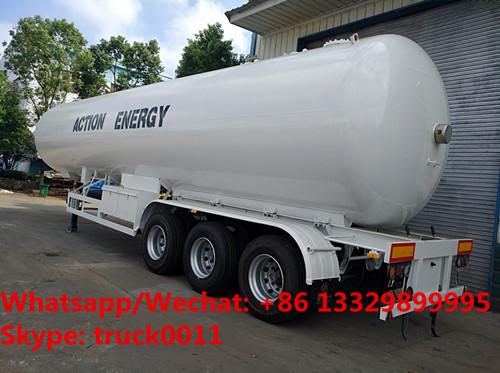

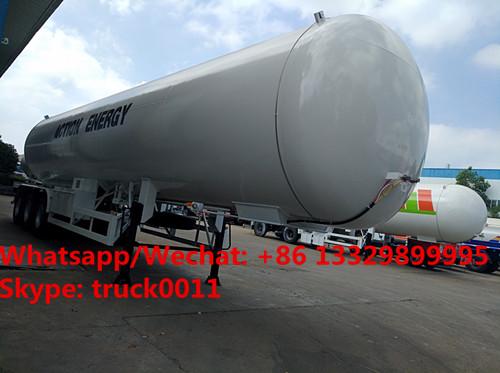

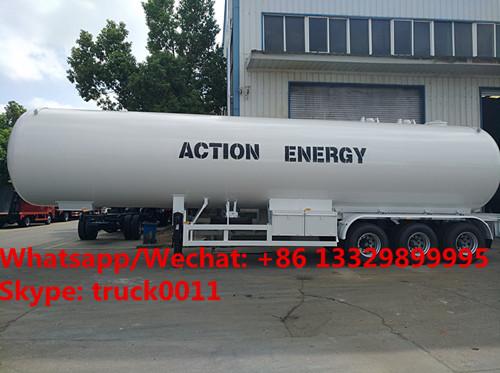

More picturesof CLW Brand 50m3 bulk road transported lpg gas tank trailer manufactured by Chengli Special Autommobile Co., Ltd. as below.
CLW Brand 50m3 Bulk lpg gas tank semitrailer for sale
Factory sale best price CLW Brand 25tons propane gas tank semitrailer for sale
HOT SALE! CLW Brand 49,600Liters bulk lpg gas tank semitrailer for sale
main technical parameters of CLW brand 49.6m3 bulk lpg gas tank semitrailer manufactured by Chengli Special Automobile Co., Ltd. as below.
| Loading medium | LPG gas | Medium characteristic | flammable and combustible | Safety valve | 2*DN80 | |
| Curb mass (kg) | 15,300 | Tanker | Designed pressure(Mpa) | 1.61MPa |
Designed standard GB150-2011<<pressure vessels>>
GB/T19905-2005 <<Liquefied Gas Tank Car>> |
|
| Loading mass(kg) | 20,832 | Filling ratio(kg/cbm) | 420 | |||
| Max total mass (kg) | 36,132 | Tanker material | Q345R | |||
| Wheelbase(mm) | 6800+1310+1310 | Tanker designed thickness(mm) | 11.05 | |||
| Front/rear suspension(mm) | -/1650 | Head designed thickness(mm) | 11.03 | |||
| Overall dimension(L*W*H)(mm) | 12740×2480×3800 | Tanker body dimension(L*W*H)(mm) | 2300*12*12,372 | Chengli Special Automobile Co., Ltd. | ||
49.6cbm LPG tanker semitrailer for LPG GAS adopts 13ton FUWA triple axles, 12 sets 12.00-20 vacuum tyre, and another spare tyre, JOST 28ton outrigger, JOST traction pin, fire extinguisher bottle, anti-static tape.
The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton FUWA bridges, 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc.
The LPG tanker semi-trailer is line with the GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>.
Function characteristic of liquefied gas truck of chengli factory
The anti corrosion coating of liquefied gas semi-trailer adopt the following process:sandblast,spray painting,purging and so on
There are domestic or imported safety accessories with high quality ,its matching is complete
We adopt scientific advanced construction process strictly,ensure that the products are with the lowest shrinkage and the highest dimensional stability at low temperature
We inspect the quality of product strictly,ensure that A and Btype of welding seam pass the examination of level two radiographic test C and D type of welding seam pass the examination of
Level one radiographic test .
