Customized China supplier of stationary bullet type bulk lpg gas storage tank for sale, propane gas tank for sale
2018s YEAR-END PROMOTION! China supplier of stationary bullet type bulk lpg gas storage tank for sale, HOT SALE! propane gas tank truck
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’development, Chengli Special Automobile Co., Ltd. can supply surface lpg gas storage tank(5m3-200m3), underground lpg gas storage tank(10m3-80m3), lpg gas trailer(40,5m3-59.6m3), lpg gas truck(5m3-35.5m3), skid lpg gas plant(5-120m3), etc.And in 2016s, we have achieved the US ASME certificate for lpg gas pressure vessels, meaning we can design and mnufacture ASME standard lpg gas pressure vessels in our company and exporting, too. More information, please feel free to contact with Ms. Anita.
We Chengli Special Automobile Co., Ltd. can design and manufacture lpg gas storage tanks from 5,000Liters to 120,000Liters. And at the same time, we can design and manufacture biggest volume of 200,000Liters of China GB standard and USA ASME standard.
If you're interested in our bulk propane gas storage tank, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995.
the specification of 80,000Liters surface lpg gas storage tank manufactured by Chengli Special Automobile Co., Ltd. as below.
| Item | Unit | Main parameters |
| Product name | LPG gas storage tank(80,000L) | |
| Product model | CLG3100-80 | |
| Loading medium | LPG gas (propane) | |
| Overall dimension(L*W*H) | mm | 11166*3132*3722 |
| Tank dimension(inner diameter*thickness*length) | mm | DN3100*16*11166 |
| Tank volume | m3 | 80 |
| Tank thickness | mm | 16 |
| End heads thickness | mm | 18 |
| Curb mass | kg | 17000 |
| Rated mass | Kg | 31920 |
| Designed pressure | Mpa | 1.77 |
| Working pressure | Mpa | ≤1.6 |
| Working temperature | ℃ | ≤50 |
| Hydraulic test pressure | Mpa | 2.22 |
| Air tight test pressure | Mpa | 1.77 |
| Tank and main Material pressure components | Q345R,16Mnlll | |
| Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
|
| Accessories |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
|
list of safety accessories for 80,000Liters surface lpg gas storage tank manufactured by Chengli Special Automobile Co.,Ltd. as below.
| Chengli Special Automobile Co., Ltd. | Safety accessories |
Product model 80m3 LPG tank (DN3100) |
||
| List | Model | Name | Nos. | Remark |
| 1 | J41N-2.5-50 | Cut-off valve DN50 | 6 | flange connecting term: RF |
| 2 | J41N-2.5-25 | Cut-off valve DN25 | 2 | flange connecting term: RF |
| 3 | J41N-2.5-100 | Cuf-off valve DN80 | 1 | flange connecting term: RF |
| 4 | J24W-320-DN6 | J24W model Needle valve M20×1.5 | 1 | |
| 5 | HG21584-95 | Magnetic reversible plate level gauge UZFAL-2.5RF-2940-0.50 | 1 | flange connecting term: RF |
| 6 | A42F-25-100 | Safety valve DN100 | 1 | flange connecting term: RF |
| 7 | Y-100T | Pressure gauge M20×1.5 1.5 grade 0～4MPA | 1 | |
| 8 | WTQ-280 | Thermometer M33×2 2.5 grade | 1 | -40℃～60℃(45℃ and 50℃ with red remark ) |

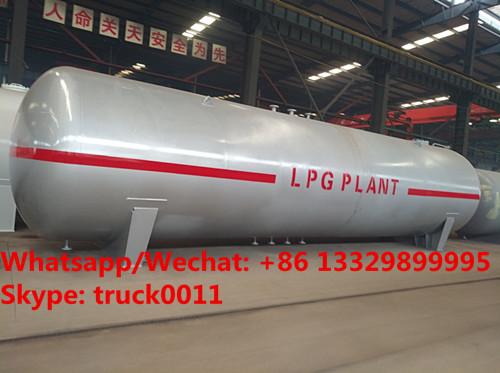

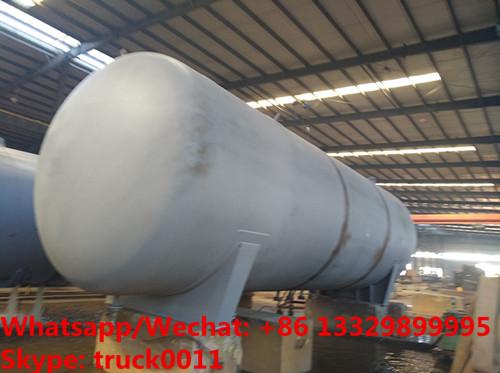

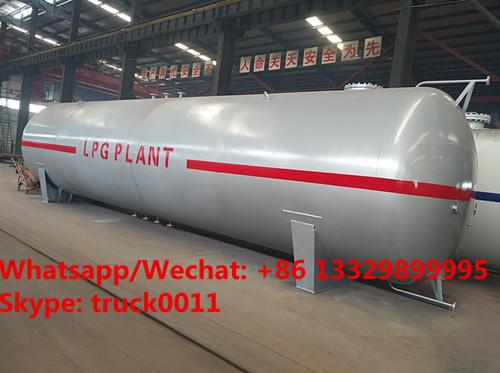

More pictures of CLW Brand bullet type bulk lpg gas storage tank manufactured by Chengli Special Automobile Co., Ltd. as below.
customized CLW Brand lpg gas storage tank for sale
high quality top level propane gas storage tank for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years' development, Chengli Group can manufacture and sell surface/underground lpg gas storage tank, road transported lpg gas tank, lpg gas truck/bobtail truck, skid lpg gas refilling plant, etc..And our CLW brand lpg gas pressure vessels have been exported Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc. More information, please feel free to contact Ms. Anita.
Website: www.clwspecialtrucks.com
Whatsapp/Wechat/Mob.: +86 13329899995
Email: truck0011@163.com; specialtruck01@gmail.com
Skype: truck0011
QQ: 504873236
