best seller-dongfeng tianjin Euro 5 180hp diesel 22m3 bulk feed transportation truck for sale, feed pellet truck
best seller-dongfeng tianjin Euro 5 180hp diesel 22m3 bulk feed transportation truck for sale, farm-oriented poultry feed pellet truck for sale
best seller- dongfeng tianjin 22m3 bulk feed truck, adopts dongfeng tianjin original 4*2 LHD truck chassis,5000mm wheelbase, Cummins 180 Euro 5 diesel engine, dongfeng 6 speed gearbox, 10.00R20 rail tires, air conditioner, etc.
The feed container is with the volume of 22m3(the density of the bulk feed pellet is from 0.5tons/m3 to 0.65tons/m3), client choose 3 phases 380volts eletronic system discharging way or hydraulic system discharging way. The overall dimension of the 22m3 bulk feed truck is 9000×2450×3800mm(suitable for a 40' FR container).
Bulk feed delivery truck is main used for delivering, loading and discharging of feed pellets of different feed factories, large-type poultry farms, and also for transporting some non-corrosive feed pellets, such as pellets from pharmaceutical factory and turnover of grain depots, etc. the feed trucks manufactured by Chengli Special Automobile Co., Ltd. can transporting various feed pellet with the different compartments, the dream transporting vehicles for poultry farms and feed factories.
If you're interested in our bulk feed truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995
Website: www.trucksinchina.com

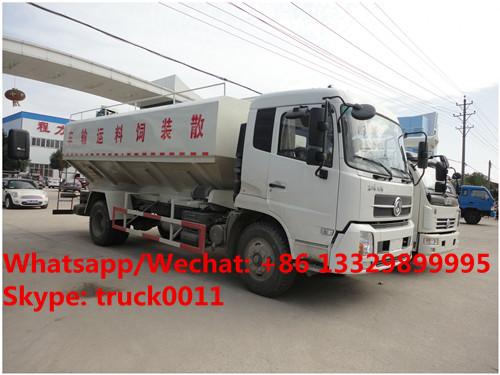

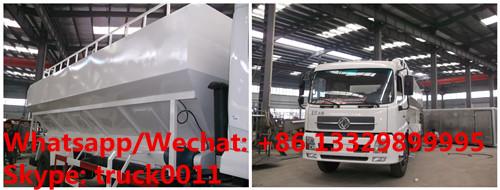

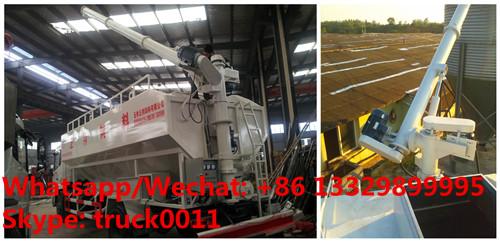

More pictures of dongfeng 22m3 bulk feed truck manufactured by Chengli Special Automobile Co., Ltd. as below.
dongfeng brand 12tons bulk feed truck for sale
HOT SALE!best price Dongfeng tianjin 4*2 LHD 180hp diesel 22CBM Farm-oriented poultry feed pellet truck
our bulk feed trucks can be feeding these three types feed pellets
main technical parameters of dongfeng 22m3 bulk feed truck as below.
| Feed container Volume | 22m3 | |
| Loading capacity (kgs) | About 10tons(according to the density of the feed) | |
| Overall dimension(L*W*H) | 9000×2450×3800mm(suitable for a 40' FR container) | |
| Approximate Feed tank dimension(L*W*H) (mm) | 6050×2400×1900 | |
| Discharging way | Electronic system discharging(3 phase 380Volts) or hydraulic system discharging | |
| Compartments | 3 separated compartments for 4 different feeds | |
| Discharging auger length | 8.5m | |
| Average discharging speed(kg/min) | 500-600kg/min | |
| Full discharging time (minutes) | About 20 | |
| max elevation angle of auger when discharging | 70 degree | |
| Rotation degree | Left-right 180 degree rotation(total near to 350 degree) | |
| Delivery distance | Horizontal max range(m) | 6.5 |
| Vertical max range(m) | 8.2 | |
| Residual rate | No more than 0.10 | |
| Main technical parameters | |||
| Product name | CLW5181ZSLD5 | ||
| Total mass(Kg) | 18000 | Feed tank volume(m3) | 22m3 |
| Rated mass(Kg) | 8535,8600 | Overall dimension(L*W*H)(mm) | 9000×2460×3800 |
| Curb mass(Kg) | 9270 | Feed container dimension(L*W*H) | 6100×2450×2190 |
| Approach/departure angle(°) | 20/12 | Front/rear suspension(mm) | 1430/2570,1430/2870 |
| Axle nos. | 2 | wheelbase(mm) | 5000 |
| Axle load(Kg) | 6500/11500 | Max speed(Km/h) | 98 |
| Main truck chassis | |||
| Truck chassis | DFH1180BX1V | Truck chassis manufacture r | Dongfeng Automobile |
| Approach/departure angle(°) | 20/18,20/13 | Tire specification | 10.00R20 18PR, |
| Steel spring | 7/9+6,8/10+8 | Front tread(mm) | 1880,1900 |
| Fuel type | Diesel | Rear tread(mm) | 1800,1860,1820 |
| Emission standard | Euro Ⅴ | ||
| Engine model | Manufacturer | Displacement(ml) | Power |
| ISB180 50 | Dongfeng Cummins | 5900 | 132 |
Chengli Special Automobile Co., Ltd. Is the leading manufacturer and supplier of feed trucks in China. With many years’ development, we Chengli Company can manufacture and sell farm-oriented feed trucks(electronic system discharging or hydraulic system discharging) from 8m3 to 40m3 and 40m3-50m3 animal feed transported semitrailer, etc. And more and more CLW Brand feed trucks have been exported all over the world.If you're interested in our poultry feed transported vehicles, please feel free to contact Ms. Anita.
