Factory sale best price CLW brand 20tons propane gas tank semitrailer for sale, HOT SALE! 49.6m3 lpg gas tank trailer
Factory sale best price CLW brand 20tons propane gas tank semitrailer for sale, HOT SALE! 49.6m3 lpg gas tank trailer
The LPG tanker semi-trailer is line with the GB150-1998
The standard devices of CLW Brand 49.6m3 lpg gas tank semitrailer customized for client from Nigeria: 13ton FUWA triple axles, 12+1 sets 12.00-20 tubeless tyres, JOST 28ton outrigger, JOST 50# traction pin, fire extinguisher bottles, anti-static tape. The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton FUWA bridges, 8 sets12.00 tubeless tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottles, steel flippers, with ABS, etc.
49.6cbm lpg trailer is with the loading capacity of 20 metric tons, choose to install aluminum alloy sunshield cover.
If you're interested in our lpg gas tank trailer, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

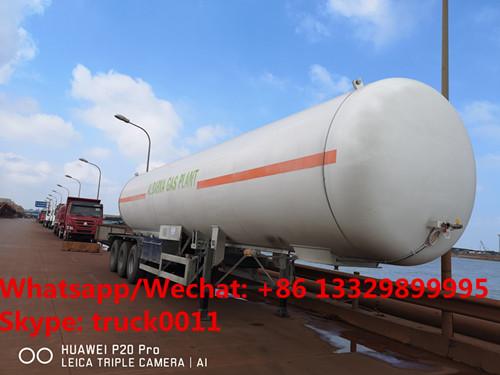

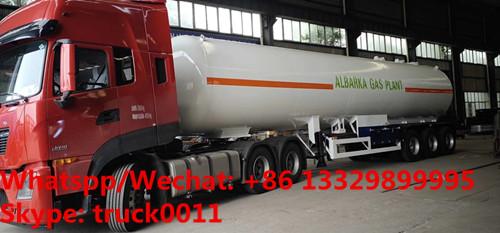

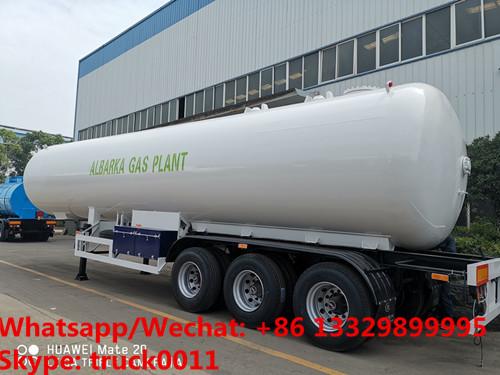

More pictures of CLW Brand 49.6m3 lpg gas tank trailer manufactured by Chengli Special Automobile Co., Ltd. as below.
Specification sheet of tank truck (semi-trailer) of 49.6m3 bulk lpg gas tank semitrailer manufactured by Chengli Special Automobile Co., Ltd. as below.
| Product name | Lpg semi-trailer | Product model | / | |||
| Product no. | B190201 | Equipment Code | 222010838201900201 | |||
| Vehicle Identification No. | LA939VSG2K0CLW058 | Product standard | GB150.1~4-2011 | |||
| TANK TRUCK | ||||||
| Total weight | 36132kgs | Max filling weight | 20832kgs | Curb weight | 15300kgs | |
| Front/rear overhang | -/1650mm | Approach/departure angle | -/19° | Designed speed limit | Normal driving | 80km/h |
| Turning | 20km/h | |||||
| Overall size | L: 12740; W: 2480; H: 3800; | Axle-load distribution in full loading | Front axle | 14260kgs | ||
| wheelbase | 6800+1310+1310(mm) | Rear axle | 21880kgs | |||
| Filling content | Liquefied petroleum gas (propane) | Working temperature | -19~50℃ | Designed life time | 10 years | |
| Base data | ||||||
| Parameters | Volume | 49.6m3 | Internal diameter | 2300mm | Tank length | 12372mm |
| Designed pressure | 1.61Mpa | Weight | 10235kgs | Designed pressure | 1.61Mpa | |
| Design working temperature | 50℃ | Charging weight per cubic meter | 420kg/m3 | Max working pressure | /Mpa | |
| Welded joint coefficient | 1.0 | Corrosion capacity | 1.0mm | |||
| Single-layer structure | ||||||
| Material | Body | Q345R | Thickness | Body | 12mm | |
| Head | Q345R | Head | 13mm | |||
| Form of structure | Main structure form | Single cylinder(double ellipse) | Insulation method | - | ||
| Check test | Pressure test value | 2.0Mpa | Air tightness test values | 1.61Mpa | ||
| Method of non-destructive testing | RT, MT | Non-destructive testing rate | 100% | |||
| Gas pressure after displacement | ≥0.086Mpa | / | / | |||
| Heat-treatment method | Overall the stress treatment is eliminated | Heat-treatment temperature | 620±15℃ |
|||
