designed 50cbm CLW bulk feed transportation semitrailer for sale, customized 50m3 25tons animal feed container trailer
Factory sale new designed 50cbm CLW bulk feed transportation semitrailer for sale, customized 50m3 25tons animal feed trailer for sale
The bulk feed tank volume of 50cbm, with the loading capacity of about 25tons, adopts high quality 5mm carbon steel, transferring feeds by electronic auger, working with putting on 380volts electronic power. The electronic motor drives the Mechanical auger screw type to discharge with high discharging speed of 0.55ton/min. The Barrel type auger at the tank top is driven by the hydraulic motor, and the electronic bottom control lifting up and down, rotation left and right, with the horizon range of 7.2m and vertical range of 8.2m. So little Residual rate, less than 0.1. And the feed pellet semitrailer can be continuous working, highly improving the working productiveness.
Triple axles 50cbm bulk feed tank semitrailer, adopts 3 sets of FUWA 13ton bridges, 11.00-20 tyre, 28ton outriggers, 90# /50# traction pin, etc.
There are 6 compartments of the feed trailer, 6 separate compartments with 6 different kinds of feeds. Every unit is with simple structure, easy and flexible operation, easy to maintenance, etc.
If you're interested in our poultry feed transported semitrailer, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com

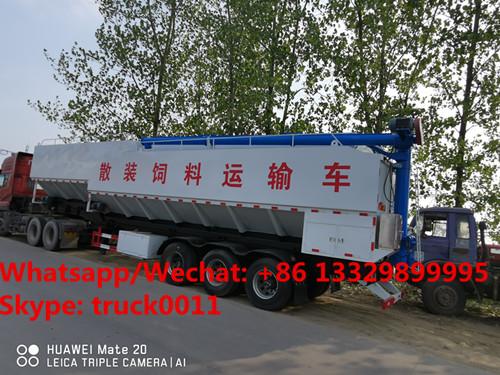

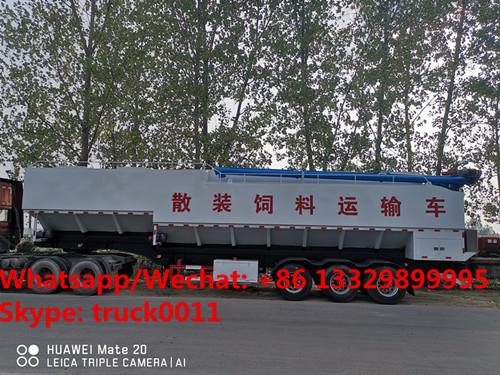

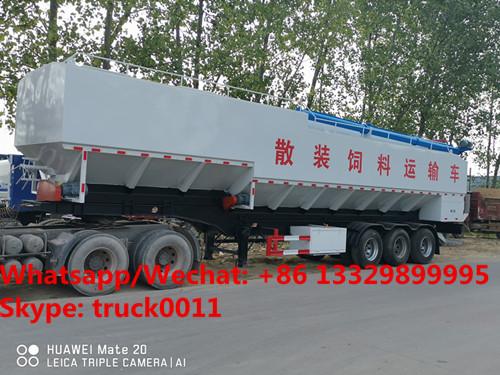

More pictures of 50cbm CLW brand poultry feed transportation semitrailer manufactured by Chengli Special Automobile Co., Ltd. as below.
HOT SALE! 50m3 poultry animal feed tank trailer
main technical parameters of 50m3 poultry animal feed tank trailer for Sudan clients as below
| Main technical parameters | |
| Product name | bulk animal feed trailer for sale (50m3) |
| Overall dimension(L*W*H) | 15500*2550*4000 |
| Approach/departure angle | -/14 |
| Front/rear Suspension (mm) | -/2290 |
| Front/rear tread(mm) | -/1840;1840;1840 |
| Leaf spring | -/8/8/8,-/10/10/10 |
| Axle load(kgs) | -/23100(triple axles) |
| Axle nos. | 3 |
| Axles brand | 3*13tons FUWA axles |
| Outriggers | 28tons outriggers |
| Tires specification | 11.00-20*12+1 |
| Tractor pin | 50# |
| Toolbox | One set |
| Spare tire supports | 2 |
| Volume | 50m3 |
| Loading capacity | According to the proportion |
| Feed tank material | High quality carbon steel |
| Compartment | 6 separate compartments for 6 different kinds feed |
| Discharging speed | 500-600 kg/min or 1m3/min |
| Discharging way | Electronic system discharging |
| Generator unit | Install one set of 24KW diesel generator unit to generate electricity current to drive the electronic auger work |
| Vertical feeding height | 8.5m |
| Horizontal distance | 6.8m |
| Surplus ratio | ﹤0.1 |
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of bulk feed truck and animal feed trailer in China. With many year's development, ChengLI Special Automobile Co., Ltd. could offer 8m3 to 40m3 bulk feed delivery trucks and 40m3-50m3 animal feed tank trailer, etc. The animal feed tanks manufactured by Chengli Special Automobile Co., Ltd. are discharging by 380V three-phrase electronic power or hydraulic system. More information, please feel free to contact with Ms. Anita.
