HOT SALE! new manufactured dongfeng 10tons animal bulk feed truck, poultry feed pellet transported truck for sale
Bulk feed delivery truck is main used for delivering, loading and discharging of feed pellets of different feed factories, large-type poultry farms, and also for transporting some non-corrosive feed pellets, such as pellets from pharmaceutical factory and turnover of grain depots, etc. the feed trucks manufactured by Chengli Special Automobile Co., Ltd. can transporting various feed pellet with the different compartments, the dream transporting vehicles for poultry farms and feed factories.
the technical advantages of CLW Brand bulk feed delivery truck as below.
1, CLW bulk feed truck adopts electronic auger type transferring feeds, putting on 380 Volt three mutually alternate current, then working. Discharging is by electronic motor driven the screw mechanism with high speed, continuous working, highly improving the working productiveness. And also choose hydraulic ssytem discharging way.
2, for the density of the feeds is various, so the loading tonnage is also various. The tank volume is 20cbm. When the feeds density is 0.55ton/cbm, 0.6ton/cbm, 0.7ton/cbm, the loading mass is 11ton, 12ton, 14ton.
3, the bulk feeds truck adopts the special bulk feeds truck chassis, widely for long distance transportation, large size feedstuff factories, etc.
4, Different feeds delivering type decides different speed. Please consider the real areas to choose electronic auger or hydraulic auger, etc.
5, Producing time: 10 working days.
If you're interested in our bulk feed truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com

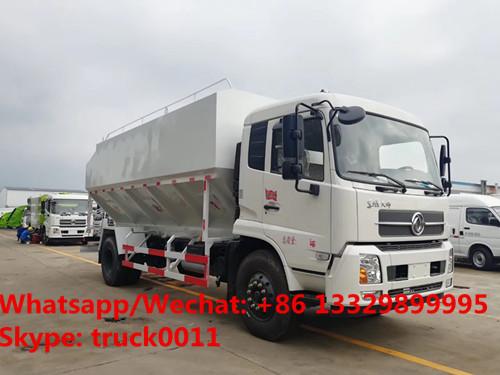

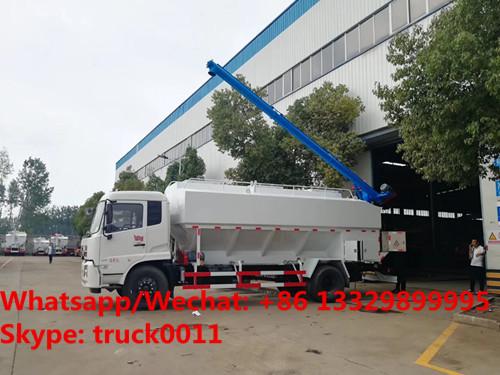

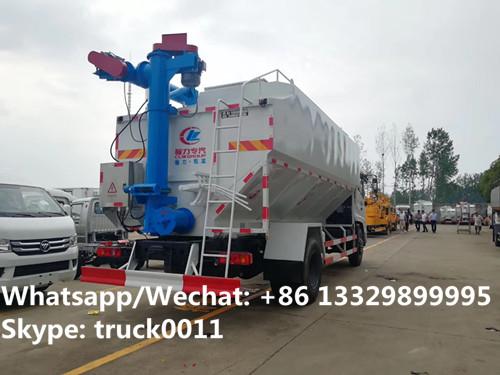

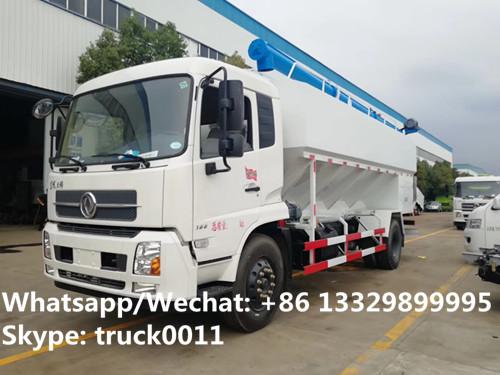

More pictures of dongfeng brand 180hp 10tons eletric system discharging bulk feed truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Dongfeng tianjin 4*2 LHD 10tons bulk feed truck for sale
HOT SALE! dongfeng 20cbm-22cbm bulk feed delivery truck
Customized dongfeng brand 10tons animal poultry feed pellet truck for sale
main technical parameters of Dongfeng 10tons bulk feed truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Feed container Volume | 20m3-22m3 | |
| Loading capacity (kgs) | About 10tons(according to the density of the feed) | |
| Overall dimension(L*W*H) | 9000×2450×3800mm(suitable for a 40' FR container) | |
| Approximate Feed tank dimension(L*W*H) (mm) | 6050×2400×1900 | |
| Discharging way | Electronic system discharging(3 phase 380Volts) or hydraulic system discharging | |
| Compartments | 3 separated compartments for 3 different feeds | |
| Discharging auger length | 8.5m | |
| Average discharging speed(kg/min) | 500-600kg/min | |
| Full discharging time (minutes) | About 20 | |
| max elevation angle of auger when discharging | 70 degree | |
| Rotation degree | Left-right 180 degree rotation(total near to 350 degree) | |
| Delivery distance | Horizontal max range(m) | 6.5 |
| Vertical max range(m) | 8.2-8.5 | |
| Residual rate | No more than 0.10 | |
| Main technical parameters | |||
| Product name | CLW5181ZSLD5 | ||
| Total mass(Kg) | 18000 | Feed tank volume(m3) | 22m3 |
| Rated mass(Kg) | 8535,8600 | Overall dimension(L*W*H)(mm) | 9000×2460×3800 |
| Curb mass(Kg) | 9270 | Feed container dimension(L*W*H) | 6100×2450×2190 |
| Approach/departure angle(°) | 20/12 | Front/rear suspension(mm) | 1430/2570,1430/2870 |
| Axle nos. | 2 | wheelbase(mm) | 5000 |
| Axle load(Kg) | 6500/11500 | Max speed(Km/h) | 98 |
| Main truck chassis | |||
| Truck chassis | DFH1180BX1V | Truck chassis manufacture r | Dongfeng Automobile |
| Approach/departure angle(°) | 20/18,20/13 | Tire specification | 10.00R20 18PR, |
| Steel spring | 7/9+6,8/10+8 | Front tread(mm) | 1880,1900 |
| Fuel type | Diesel | Rear tread(mm) | 1800,1860,1820 |
| Emission standard | Euro Ⅴ | ||
| Engine model | Manufacturer | Displacement(ml) | Power |
| ISB180 50 | Dongfeng Cummins | 5900 | 132 |
