new JMC brand diesel 20m telescopic aerial working platform truck for sale, cheaper hydraulic overhead working truck
Chengli Special Automobile Co., Ltd. is the leading mnaufacturer and supplier of aerial working platform trucks in China since 2004s. We can design and produce 12m overhead working truck, 14m-16m aerial working platform truck, 18m-20m high altitude operation truck, 20m-22m aerial working truck, etc.More information, please feel free to contact with Ms. Anita Deng.
The technical advantages of CLW brand aerial platform vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
1. Aerial platform vehicles is also named high-altitude operation truck, refers to the special vehicles for aerial operation with the delivery of staff and the equipment to the scene.
2. We are professional factory, supply Dongfeng aerial vehicles, JMC aerial working vehicles, JAC aerial platform vehicles, Qingling high-altitude working truck, Foton aerial platform operating vehicles, etc., working height of 8-24 meters for choose.
3. Produced by the high-altitude operation vehicles, using double lift hydraulic cylinder, up and down a total of four hydraulic cylinders, the conventional aerial vehicles only two lifting cylinders, double lift hydraulic cylinder in the lift, rotation process does not tremble, do not shake, stability Sex, safety is better.
4. High-altitude operation vehicles using domestic or imported reversing valve and hydraulic cylinder, for the balance, flexible and convenient operation, outrigger and work arm interlocking, outrigger and work arm interlock to prevent misuse over.
5. Installed four hydraulic legs, to ensure vehicle stability and safety in operation.
6. Optional aerial crane hook, hook hanging 1 ton and the electronic control system.
7. Aerial platform vehicles can be up and down operation, 360-degree rotation, install the hand throttle.
8. If you have any special requirements for the aerial vehicles, please let us know, we can design for you.
If you're interest in our aerial working platform truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
JMC brand 4*2 LHD 20m telescopic aerial working platform truck for sale,
JMC brand 4*2 LHD 20m telescopic aerial working platform truck, adopts JMC N800 single row reversible driver cab
This aerial working platform truck adopts 4 sections hexagon telescopic crane boom, the max working range is 11.6m, the max working height is 20m; the working range is 5m at the max working height, 360°full rotation. H shape outriggers, Horizontal span of the outrigger is 4000mm;the Longitudinal span of the outriggers is 4000mm. the rated loading capacity of the high altitude bucket ≤200㎏; while the dimension of the bucket is 1100X650X1150 (mm).
Static leveling, with the function of Oil Tank locking, Manual and remote control, With emergency power unit.

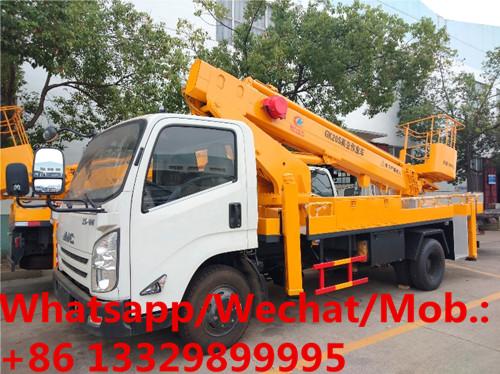

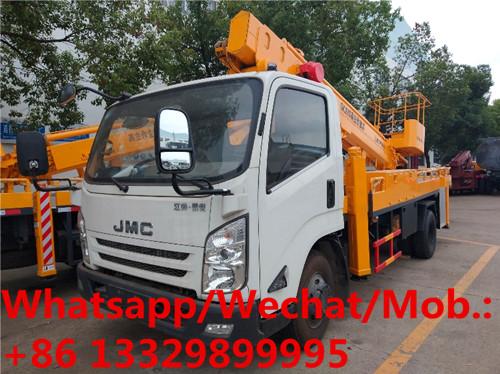

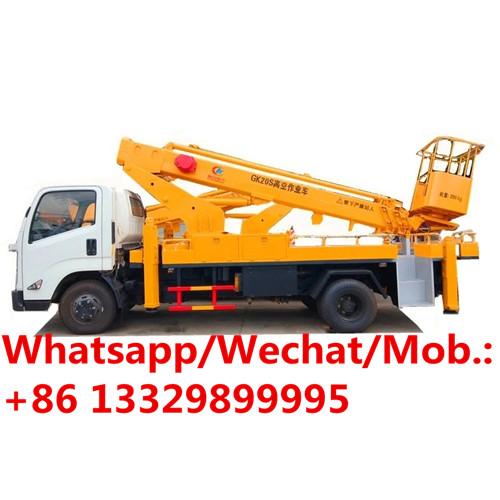

More pictures of JMC brand telescopic aerial working platform truck as below.
| Whole Truck Main Technical Parameter ( CLW5086JGKJ5) | ||||
| Product Name | JMC brand telescopic overhead working truck for sale(20m) | Gross Vehicle Weight (kg) | 7775(Kg) | |
| Curb Weight (kg) | 7580(Kg) | Overall Dimension(mm) | 7750×2160×3190(mm) | |
| Working Height(m) | 16m | Cab Allowed Persons | 3 | |
| Axle No. | 2 | Wheelbase (mm) | 3815 | |
| Chassis Technical Parameter | ||||
| Chassis Model | JX1083TK25 | Chassis Name | Truck Chassis | |
| Chassis Brand | JMC brand | Manufacturer | JMC company | |
| App./ Dep. Angle(º) | 20/11(°) | Tire Spec. | 7.5R16*6 with 1 spare tire | |
| Leaf Spring No. | 8/7+7 | Front/rear suspension (mm) | 1155/2205(mm) | |
| Fuel Type | Diesel | Front/rear tread(mm) | 1680/1640(mm) | |
| Drive Type | 4x2 | Driver cab | JMC N800 single row driver cab with original air conditioner | |
| Steering Type | Power steering | Gear Box | 6 speed gearbox, Manual | |
| Brake | Air cut brake | FUEL type | Diesel | |
| Max speed(km/h) | 100km | Front/rear axle | 3ton/5.5ton | |
| Engine Technical Parameter | ||||
| Engine Model | JX4D30A5H | Emission Standard | Euro Ⅳ | |
| Displacement ( ml ) | 2892 ml | Power (KW) | 112KW/152hp | |
| Work platform parameter | 1. the rated loading capacity of the high altitude bucket ≤200㎏, while the dimension of the bucket is 1100X650X1150 (mm). | |||
| 2, 4 sections hexagon telescopic crane boom, | ||||
| 3, max working range is 11.6m | ||||
| 4, max working height is 20m | ||||
| 5, working range is 5m at the max working height | ||||
| 6, 360°full rotation. | ||||
| 7,H shape outriggers, Horizontal span of the outrigger is 4000mm;the Longitudinal span of the outriggers is 4000mm. | ||||
| 8, the truck color upon request, free to paint company logo | ||||
