HOT SALE! ISUZU 10-14m hydraulic overhead working platform truck for sale, Best price high altitude operation truck

Price Negotiable
Price: negotiable
MOQ: 1 unit
Delivery Time: 20 days
Brand: CLW
Product Description



HOT SALE! ISUZU 10-14m hydraulic overhead working platform truck for sale, Best price high altitude operation truck for sale



Chengli Special Automobile Co., Ltd. is the leading mnaufacturer and supplier of aerial working platform trucks in China since 2004s. We can design and produce 12m overhead working truck, 14m-16m aerial working platform truck, 18m-20m high altitude operation truck, 20m-22m aerial working truck, etc.More information, please feel free to contact with Ms. Anita Deng.

Aerial work platform truck, also called high altitude operation truck, is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.

The technical advantages of CLW brand aerial platform vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
1. Aerial platform vehicles is also named high-altitude operation truck, refers to the special vehicles for aerial operation with the delivery of staff and the equipment to the scene.
2. We are professional factory, supply Dongfeng aerial vehicles, JMC aerial working vehicles, JAC aerial platform vehicles, Qingling high-altitude working truck, Foton aerial platform operating vehicles, etc., working height of 8-24 meters for choose.
3. Produced by the high-altitude operation vehicles, using double lift hydraulic cylinder, up and down a total of four hydraulic cylinders, the conventional aerial vehicles only two lifting cylinders, double lift hydraulic cylinder in the lift, rotation process does not tremble, do not shake, stability Sex, safety is better.
4. High-altitude operation vehicles using domestic or imported reversing valve and hydraulic cylinder, for the balance, flexible and convenient operation, outrigger and work arm interlocking, outrigger and work arm interlock to prevent misuse over.
5. Installed four hydraulic legs, to ensure vehicle stability and safety in operation.
6. Optional aerial crane hook, hook hanging 1 ton and the electronic control system.
7. Aerial platform vehicles can be up and down operation, 360-degree rotation, install the hand throttle.
8. If you have any special requirements for the aerial vehicles, please let us know, we can design for you.



If you're interested in our aerial working platform truck, please send email to truck0011@163.com; or talk to Anita by Whatsapp/Wechat/Mob.:  +86 13329899995

Website: www.trucksinchina.com

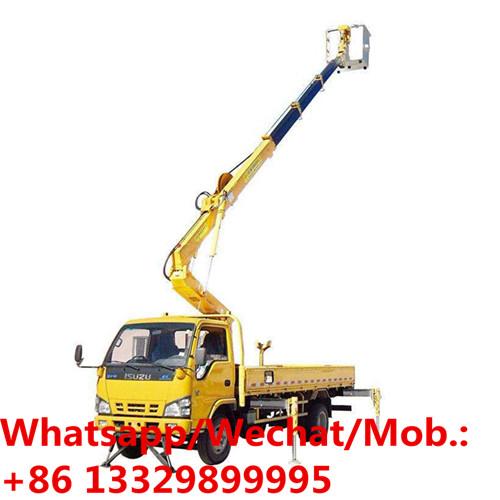

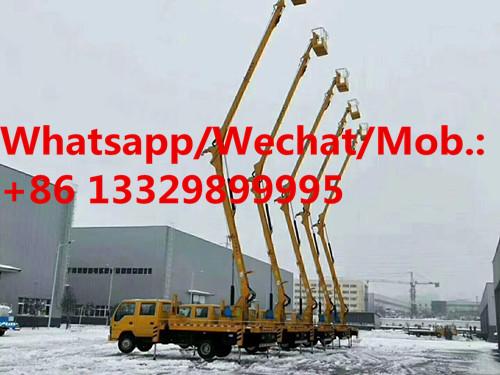

More pictures of ISUZU brand aerial working platform truck as below.

main technical parameters of ISUZU brand aerial working platform truck as below.

Vehicle parameters

Vehicle Model
CLW5065JGKQ51
Vehicle Brand
CLW

Overall dimensions
7260×1990×3140mm
Curb weight
4365kg

Chassis parameters
Chassis model
QL10703HWRY
Chassis brand
ISUZU
Overall dimensions
5900×1880×2220mm
Wheel base
3360mm
Front/rear wheel track
1504/1425mm
Front/rear suspension
1015/1525mm
Approach/departure angle
24/16°
Maximum speed
105km/h
Chassis Manufacturer
QingLing Motors (Group) Co., Ltd.
Cab
Configuration
100P, single row cab, allowable 2 passengers,car interior, air conditioner, USB radio interface, with oil brake vacuum booster
pump
Color
Yellow, other color is optional
Engine
Model
4JB1CN
Emission
Euro 4
Type
4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine
Rated power
98hp,rated power speed 3400rpm
Displacement
2771ml
Manufacturer
Isuzu Engine (Chongqing) Co., Ltd.
Tire
Size
7.00-16 10PR nylon tire
Number
6+1 nos
Front axle
2.5 tons
Rear axle
4.8 tons
Drive form
4X2
Suspension
Multi leaf springs
Rated voltage
24V,DC
Transmissions
Isuzu MSB five speed transmission,5 speed forward 1 reverse.
Steering device
Power assisted steering
Steering wheel
Left hand drive
If there is a slight change in the chassis parameters above,please take the actual product as the standard
Aerial work truck structure parameters
Max operation height
12.0m
Max working platform height
10.0m
Max rotation angle
360°
Working platform rated loading
200kg


Color and Logo
Optional
Standard configuration
Chassis,sub frame,working bucket, hook, four legs, van body, up and down operation, hydraulic control, three knuckle arms,
360°rotation angle, with ABS.
