Good price Customized HOWO 4*2 LHD 26M telescopic high altitude operation truck for sale, aerial working ladder vehicle
Good price Customized HOWO 4*2 LHD 26M telescopic high altitude operation truck for sale, aerial working ladder vehicle for sale
The hydraulic aerial basket truck for sale is consisted of truck chassis, telescopic boom, hydraulic cylinders, power take off, motor, gear pump, operator seat, multi-way control valve, lifting hook, etc. It mainly used for street light maintenance, power maintenance, communication maintenance, planting by municipal corporation, power section, communication corporation, etc.
Aerial platform truck basic specification below:
1, Aerial working height 12m,14m,16m,18m,20m,22m,24m
(4*2 Chassis brand with Dongfeng, Sinotruck, Shacman,JAC, Foton and so on available)
2, The Hydraulic lifting system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure
3 Aerial bucket is moving system with dual action commands, one at ground level and the other at the level of the bucket,Truck equipped with two rotating amber lights
4, Aerial work platform truck equipped with balance valve ,emergency valve to keep safety when people overhead working .
5, Application:It is mainly used for inspection of electric lines, cleaning of aerial work, pruning of trees and other aerial work.
Customized SINO TRUK HOWO 4*2 LHD 26M telescopic aerial working platform truck for sale, adopts SINO TRUK HOWO 1880mm4*2 LHD single row driver cab, 3360mm wheelbase, YN4102QBZL 116hp diesel engine, 2.4T front axle/4.2T rear axle, WLY646 6 speed gearbox, 7.00R16 rail tires,
The devices of the HOWO brand telescopic aerial working platform truck adopts 3 sections quadrilateral telescopic crane boom, the max working range is 9.1m, the max working height is 16m; the working range is 4.4m at the max working height, 360°full rotation; front V type outriggers and rear H type outriggers, Horizontal span of the outrigger is 3605mm, 3670mm;the Longitudinal span of the outriggers is 4000mm, 3810mm.the rated loading capacity of the high altitude bucket ≤200㎏; while the dimension of the bucket is 1100X650X1150 (mm). Static leveling, with the function of Oil Tank locking, Manual and remote control, With emergency power unit.

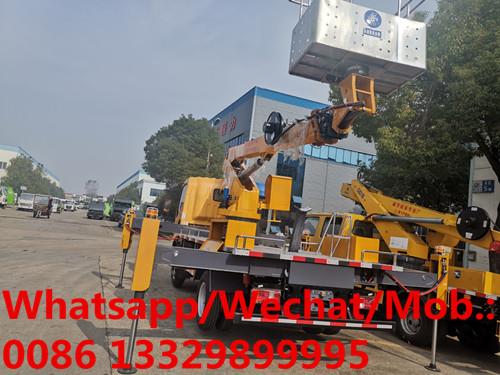

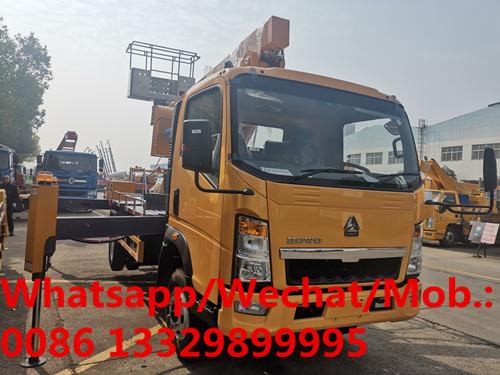

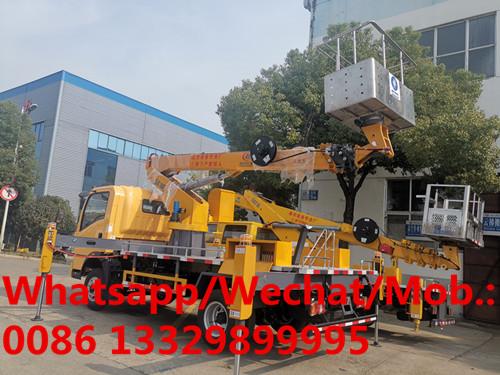

More pictures of HOWO 26m telescopic aerial working platform truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
main technical parameters of SINO TRUK HOWO 4*2 LHD 26m telescopic high altitude ladder vehicle manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Whole Truck Main Technical Parameter ( CLW5040JGKZ3) | ||||
| Product Name | SINO TRUK HOWO brand 4*2 LHD telescopic overhead working truck for sale(16m) | Gross Vehicle Weight (kg) | 4495(Kg) | |
| Curb Weight (kg) | 4300 (Kg) | Overall Dimension(mm) | 5995×2250×3300(mm) | |
| Working Height(m) | 16m | Cab Allowed Persons | 3 | |
| Axle No. | 2 | Wheelbase (mm) | 3360mm | |
| Chassis Technical Parameter | ||||
| Chassis Model | ZZ1047 | Chassis Name | Truck Chassis | |
| Chassis Brand | SINO TRUK HOWO brand | Manufacturer | SINO TRUK HOWO company | |
| App./ Dep. Angle(º) | 18/15(°) | Tire Spec. | 7.00 rail tires | |
| Leaf Spring No. | ,11/9+7 | Front/rear suspension (mm) | 1065/2045(mm) | |
| Fuel Type | Diesel | Front/rear tread(mm) | 1160/1235(mm) | |
| Drive Type | 4x2 | Driver cab | HOWO 1880mm single driver cab (RHD) | |
| Steering Type | Power steering | Gear Box | 6 speed gearbox, Manual | |
| Brake | Air cut brake | FUEL type | Diesel | |
| Max speed(km/h) | 95km | Front/rear axle | 2.4ton/4.2ton | |
| Engine Technical Parameter | ||||
| Engine Model | YN4102QBZL | Emission Standard | Euro Ⅲ | |
| Displacement ( ml ) | 3760 ml | Power (KW) | 85KW/115hp | |
| Work platform parameter | 1. the rated loading capacity of the high altitude bucket ≤200㎏, while the dimension of the bucket is 1100X650X1150 (mm). | |||
| 2, 3 sections quadrilateral telescopic crane boom | ||||
| 3, max working range is 9.1m. | ||||
| 4, max working height is 16m | ||||
| 5, working range is 4.4m at the max working height | ||||
| 6, 360°full rotation. | ||||
| 7, front V type outriggers and rear H type outriggers, Horizontal span of the outrigger is 3605mm, 3670mm;the Longitudinal span of the outriggers is 4000mm, 3810mm | ||||
| 8, Static leveling, with the function of Oil Tank locking, Manual and remote control, With emergency power unit. | ||||
| 9 the truck color upon request, free to paint company logo | ||||
