HOT SALE! foton AUMARK 5T refrigerated truck, Good price Factory sale cold van box vehicle for sale
main technical parameters of FOTON AUMARK 4*2 5T refrigerated truck is as below.
| No. | Item | Unit | Specification |
| 1 | Vehicle Name | Foton 5Ton to 6Ton refrigerator truck | |
| 2 | Drive type | 4*2 | |
| 3 | Steering type | Left hand drive | |
| 4 | Gross Weight | kg | 4495 |
| 5 | Payload | kg | 1100 |
| 6 | Wheelbase | mm | 3360 |
| 7 | Overall Dimension | mm | 5995*2340*3350 |
| 8 | Van body size | mm | 4085*2100*2100 |
| 9 | Insulating layer thickness | cm | 8 |
| 10 | Van material | Fiberglass reinforced | |
| 11 | Refrigerator unit brand | Thermoking or Carrier | |
| 12 |
Refrigeration temperature range( degree centigrade) |
-18 to 0 | |
| 13 | Chassis Model | BJ1048V9 | |
| 14 | Chassis Brand | Foton(AoLing) | |
| 15 | Engine Model | ISF3.8s5141 | |
| 16 | Displacement / Power | ml/kw | 3800 / 105KW/ 140HP |
| 17 | Emission Standard | Euro 2, 3,5 | |
| 18 | Fuel Type | Diesel | |
| 19 | Tyre specification | 7.50R16LT 6PR |
| Cold Room | Box inner dimension(mm) | 5000×2200×2300 (mm) |
| Box Side | Exterior and interior with FRP(fiber Reinforced Plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. | |
| Box Floor | Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. | |
| Doors | Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials. |
|
| Refrigerator Unit | Refrigeration unit | Choose high quality USA Carrier brand vehicle-powered reefer unit (reefer unit model: C-500), the lowest temperature up to -10℃, adjusted at the driver cab). |
If you're interested in our refrigerated truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.
Website: www.trucksinchina.com

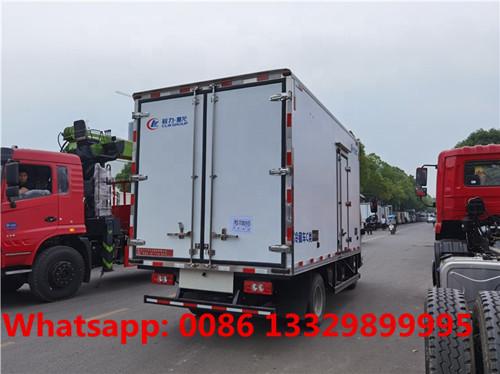

More pictures of FOTON AUMARK 5T refrigerated truck is as below.
FOTON AUMARK 4*2 LHD refrigerated truck customized for bag milk transportation adopts FOTON AUMARK S series 2060mm single row driver cab, 3800mm wheelbase, F3.8s3141 Cummins 104KW/141hp Euro Ⅲ diesel engine, 3.6tons front axle/6.5T rear axle, 8.25R20 rail tires*6+1, 6S558 ZF 7 speed lever with six speed forward and one reverse manual gearbox, air cut braking, 24V electric, 9/8+6 steel spring, etc.
The overall dimension (L*W*H) of the FOTON AUMARK 4*2 LHD refrigerated truck is 7015×2300×3420(mm); while the cold van box dimension(L*W*H): 5000×2200×2300
(mm). Clients choose to install High quality USA Carrier brand vehicle-powered reefer unit (reefer unit model: C-500), the lowest temperature up to -10 ℃, adjusted at the driver cab).
Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years’ experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
