good price customized ISUZU 98hp EURO 4 3T wrecker towing truck for sale, street block removal car vehicle for sale
The tow truck is also called road tow truck, road wrecker, wrecker tow truck, wrecker, towing truck, breakdown truck, wrecker truck, recovery truck, road rescue vehicle,
etc.
Our flatbed tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.
The rollback tow truck can hoist, lift, draw and be with other special functions, mainly used in highway, garage and city road obstacle cleaning.
As a china tow truck manufacturers , our rescue vehicle can meet all your demand. Right hand rollback tow truck, left hand drive rollback tow truck, 4x2 wreckers, 6x4 wreckers, 8x4 tow wrecker trucks,etc. In wrecker types, we produce plat form tow truck, under lift wrecker truck, rotator tow truck, full landing rollback tow truck, double flatbed wrecker truck, etc.
the technical advantages of CLW Brand wrecker towing truck as below.
1. small angle of flatbed to ground, easy for broken car to be on it.
2. Thick good quality checker plate platform, long service time, skid-proof
3. Adpot Italy imported special balance valve.
4. Operate on both sides of the truck and remote is available.
Customized mini ISUZU 4*2 LHD 3tons recovery wrecker tow truck adopts ISUZU brand 4*2 100P single row driver cab, 3360mm wheelbase, Isuzu 4JB1CN diesel Euro 4 engine, ISUZU MSB 5 speed manual gearbox, 7.00R16 rail tires, 2tons front axle/4tons rear axle, power steering, etc.
The loading capacity of the flatbed type wrecker tow truck is 3tons, and the length of the flatbed is 4.2m; the width of the flatbed is 2.3m; while the length of the tail plate is 1m, which can be designed and manufactured as hydraulic folded flipping plate. So the length of the flatbed of ISUZU wrecker tow truck is 5.2m (4.2m+1m),etc.
The standard devices of ISUZU 4*2 LHD road wrecker tow truck as below
1, 3 tons loading capacity for the upper part/flatbed
2, 4T hydraulic winch and 21m length wire rope
3, 2 sections rear towing arm(choose to install)
4, auxiliary wheels*2 sets
5, bilateral linkage control valve
6, fully hydraulic flipping plates
7, caller with alarm light
8, auxiliary wheels*2 sets
9, 4* special binding belts
If you're interested in our ISUZU wrecker towing truck, please send email to truck0011@163.com or talk to Anita by WHatsapp: 0086 13329899995.
Website: www.trucksinchina.com

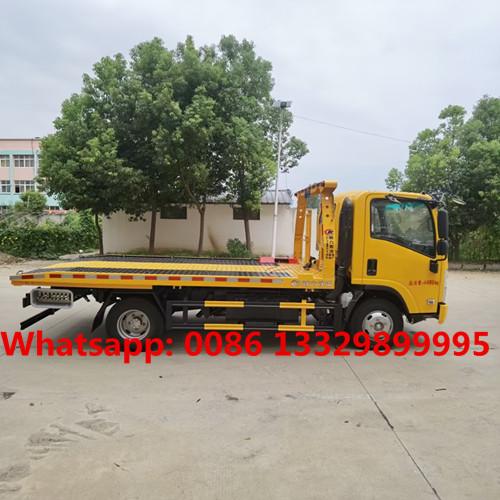

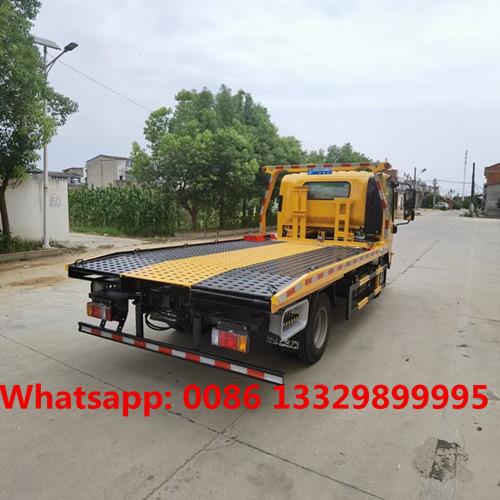

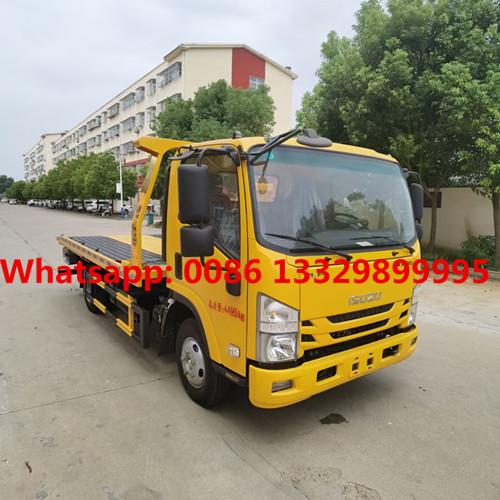

More pictures of ISUZU brand 4*2 3T road breakdown recovery truck is as below.
ISUZU 100P 3T wrecker towing truck for sale
main technical parameters of ISUZU 100P 4*2 LHD road towing truck as below
| Overall parameters | Product name | ISUZU wrecker tow truck |
| Manufacturer | Chengli Special Automobile Co., Ltd. | |
| Product model | CLW5040TQZQ4 | |
| Total mass(kgs) | 4495 | |
| Rated mass(kgs) | ||
| Curb mass(kgs) | 3865 | |
| Overall dimension (L*W*H)(mm) | 5997×2300×2220 | |
| Chassis parameters | Driver cab | ISUZU 4*2 LHD single row driver cab with 2 seats and original air conditioner |
| Approach/departure angle(°) | 24/13 | |
| Front/rear suspension(mm) | 1015/1620 | |
| Axles nos. | 2 | |
| Wheelbase(mm) | 3360 | |
| Axle load(kgs) | 1805/2690 | |
| Max speed(km/h) | 105 | |
| Tire specification | 7.00R16 *6 | |
| Steel spring | 3/3+2,8/6+5 | |
| Front/rear tread(mm) | 1377/1425 | |
| Engine model | 4JB1CN 98hp diesel engine | |
| Fuel type | Diesel | |
| Emission standard | Euro Ⅵ | |
| Gearbox | ISUZU MSB 5 speed manual gearbox | |
| Upper part parameters | Flatbed dimension(L*W)(mm) | 4200*2300 |
| Rear hydraulic flapping plate Length (mm) | 1000 | |
| Total flatbed length (mm) | 4200+1000 | |
| Hydraulic winch | 4tons | |
| Operation way | Bilateral linkage operation | |
| Rear towing arm | Choose to install 2 sections | |
| Loading capacity of the flatbed | 3tons | |
| Wire rope | 20m length | |
| Auxiliary wheels | 2 sets | |
| Special binding belts | 4 sets | |
| Caller with alarm light | Yes |
