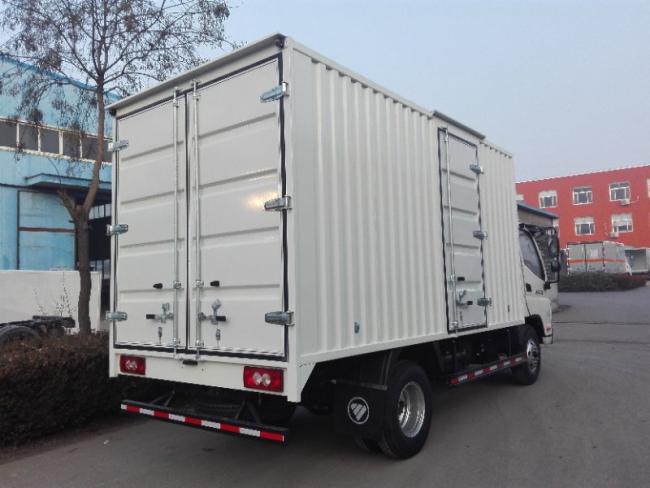

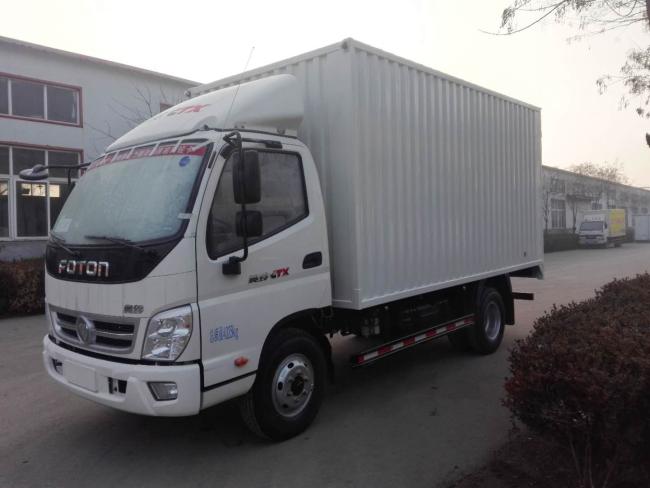

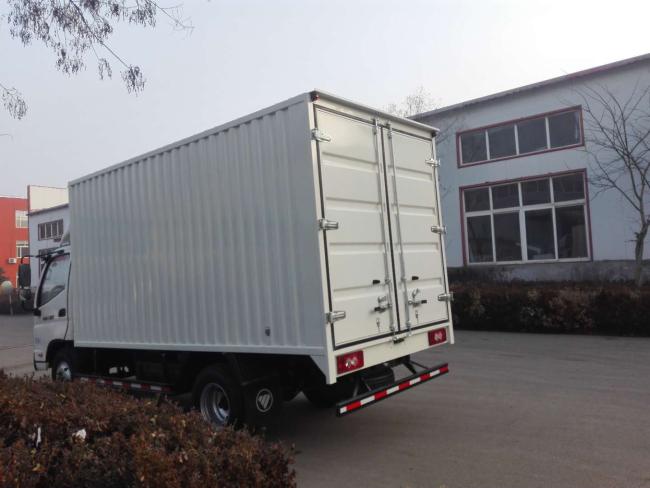

Customized FOTON AUMARK 4*2 LHD Light duty 108hp diesel cargo van truck for sale, Good price corrugated board lorry van
Customized FOTON AUMARK 4*2 LHD Light duty 108hp diesel cargo van truck for sale, Good price corrugated board lorry van car vehicle for sale
main technical parameters of Customized FOTON AUMARK 4*2 LHD Light duty 108hp diesel cargo van truck for sale, Good price corrugated board lorry van car vehicle for sale is as below.
| Vehicle model | AUMARK-T33 | |
| Cabin | Single row/W1800/left rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5875×1915×2230 |
| Wheel base(mm) | 3360 | |
Weight data |
Curb weight(kg) | 2100 |
| Gross vehicle weight(kg) | 4485 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed(km/h) | 95 |
ENGINE |
Model | BJ493ZLQV1 |
| Emissions standards | EuroⅢ | |
| Displacement(L) | 2.771 | |
| Rated Power(kw/rpm) | 80 | |
| Max torque (N.m/rpm) | 280 | |
| Gearbox | Model | JC5-28 |
| Front axle | Type/Mainreducetion ratio | 2.2T |
| Rear axle | Type/Mainreducetion ratio | 5.0T/6.142 |
| Suspension | Front suspension/Leaf spring number | 3+1 |
| Rear suspension/Leaf spring number | 6+7 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Central drum brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1/( 7.00R16) | |
Technical requirements for car (corrugated board)
| Packing case size | Internal: 4170 * 2100 * 2100 | |
|
The compartments body requirements |
Compartments body skeleton | Front upper beam, left and right upper beam for square tube 40*60*2.0mm, |
| The rear upper beam is a square tube of 100*50*2.0mm | ||
| Door frame for square tube 40*30* 1.2mm, 30*30* 1.0mm | ||
| Chassis beam | Square tube beam 40*60*2 mm | |
| Plate girder | Square tube beam 100*50*2 mm | |
| The floor core | Pattern steel plate 2.0mm | |

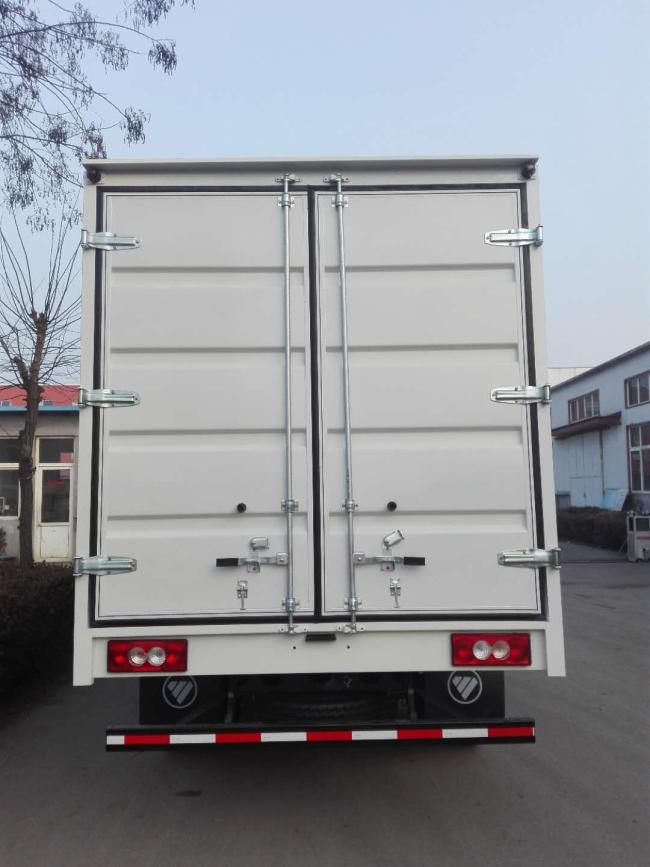

| The back door | Double open the door | |
| The door locks are galvanized | ||
| Door link for 3 hinges | ||
| A side door | The copilot side is equipped with 1M wide single open side door | |
| The door locks are galvanized | ||
| Door link for 3 hinges | ||
| post | Square tube 80 * 40 * 2.0 | |
| Compartments board | Corrugated board is 1.0 mm | |
| attachment | Protective device | Side protection: comply with GB11567.1; Rear protection: according to GB11567.2 |
|
special performance |
Corrosion protection | Cargo box should meet 504 hours of salt spray test (including connecting bolts, welding points, paint surface corrosion resistance). |
| In the rain | The rainfall intensity is 5mm ~ 7mm/min, and there is no water inflow and leakage after 30min test. |
Website: www.trucksinchina.com
Whatsapp/Wechat/Mob.: 0086 13329899995
Email: truck0011@163.com.
The van truck is also called cargo truck, dry box truck, box truck, lorry, cargo van, box van truck,etc. The cargo van is one simple logistic special truck. It is consisted of truck chassis, cargo box. As a professional cargo van manufacturer, the cargo van for sale are color plate box, corrugated box,etc.
Many van truck are with tail-board which is telescopic and foldable, more safe, high efficiency, manpower saved. The delivery van is mainly used for logistic company, supermarket, company and individual household. The tail-board for sale are 1 ton, 1.5 ton, 3 ton or more.
As a van supplier, we have dongfeng mini van, foton van, faw mini van, etc.We can customize the vans according to your requirement.
Optional box material: corrugated iron plate, color steel plate, aluminum flate plate, corrugated aluminum alloy plate or foam insulation plate.
Optional van type: closed van, semi-closed van or warehouse gate van.
Optional door for van: with back door, with 1-side door, with both sides doors (left and right), single-open door or double-open door.
As a van supplier, we Chengli Special Automobile Co., Ltd. have dongfeng mini van, foton van, faw mini van, Yuejinvan truck, ISUZU van truck, etc.We can customize the van trucks according to your requirement. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
