Euro 5 Isuzu LHD P3 mobile digital billboard LED advertising vehicle for sale, outdoor LED screen van truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of Outdoor mobile LED advertising display truck, LED truck, digital advertising truck, LED screen truck, outdoor full color LED advertising truck, LED box truck, etc. With many years' experience in supplying, Chengli Special Automobile Co., Ltd. could design and produce ISUZU led truck, Dongfeng Outdoor mobile LED advertising display truck, forland digital advertising truck, Karry billboard advertising LED display truck, Chang'an LED display truck, JAC mobile advertising truck, HOWO scrolling advertising truck, trailer-type mobile outdoor LED truck, etc. More information, please feel free to contact with Ms. Anita Deng.
Euro 5 Isuzu LHD mobile digital billboard LED advertising vehicle for sale
3 sides LED billboard truck,
PIXELS: 10mm/8mm/6mm(P10/P8/P6)
One side: 6.88
Sides(left + right): 6.88m2*2=13.76m2
Rear: 1.84m2
Stage: 10m2
Isuzu 4*2 LHD mobile LED advertising truck adopts ISUZU brand LHD 4*2 truck chassis, ISUZU Euro 5 4KH1CN5LS 98hp diesel engine, ISUZU MSB 5 speed gearbox, ISUZU single row luxurious driver cab with conditioner and power steering, 2tons front axle/4tons rear axle, 7.00R16 tires *6+1, 3360mm wheelbase, etc.
The overall dimension(L*W*H) of ISUZU Mobile LED truck:5995*2040*2990(mm), truck model: CLW5040XXCQL4.
1, the right side of the driver cab is with high quality P10/P8/P6 HD waterproof and shake-proof full color outdoor screen (screen area: 3840*1792=6.88m2),choose to install the side screen is with hydraulic lifting stage(stage area: 10m2) and 4 sets manual/hydraulic outriggers.
2, the left side of the driver cab is with word roller light-box with automatically switching format advertisings; and the exterior with tempered glass or left and right sides with P10/P8/P6 screens
3, the rear part screen is with single color word screen (screen area: 1280*1440=1.84m2)
4, truck mounted diesel generator adopts high quality OUMA 8KW/15KW diesel generator.
5, truck trim: 5cm thickness composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audio, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system.
Remark: the computer is with English words, English operation system and Software playback system
| Main technical parameters | |||
| Product name | ISUZU MOBILE LED billboard truck for sale | Product model | CLW5040XXCQL5 |
| Total mass(Kg) | 4495(Kg) | Diesel generator | OUMA 8KW/15KW diesel generator |
| Curb mass(Kg) | 4365(Kg) | Overall dimension(L*W*H)(mm) | 5995×2040×2990(mm) |
| Side screen area P6 | 3840*1728=6.65 | Rear screen area | 1280*1440=1.84m2 |
| Seated person | 2 | Truck mounted computer | Full ENGLISH word Computer |
| Approach/departure angle(°) | 24/12(°) | Front/rear suspension(mm) | 1015/1620(mm) |
| Axle nos. | 2 | Wheelbase(mm) | 3360 |
| Axle load(Kg) | 1805/2690 | Max speed(Km/h) | 98 |
| Truck chassis | |||
| Truck chassis model | QL1040A6HAY | Manufacturer | ISUZU company |
| Tire specification | 7.00R16 8PR | Tire nos. | 6+1 |
| Steel spring | 3/3+2 | Front/rear tread(mm) | 1377/1425 |
| Driver cab | ISUZU 100P single row luxurious driver cab with air conditioner and power steering | Brake | Oil cut brake with vacuum booster |
| Fuel type | Diesel | Gearbox | ISUZU MSB gearbox |
| Emission standard | Euro 5 | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| 4KH1CN5LS | ISUZU | 2999 | 72 |
If you're interested in our mobile LED advertising truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.
Website: www.trucksinchina.com

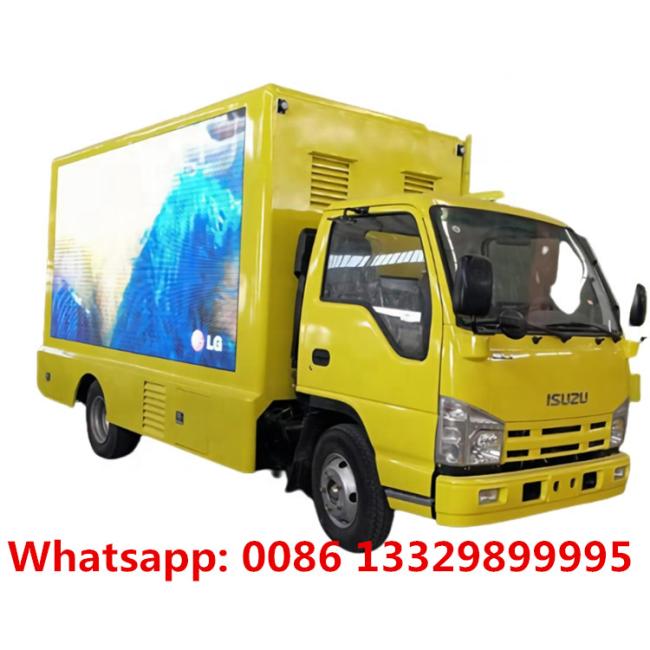

more pictures of ISUZU brand mobile LED advertising truck is as below.
ISUZU brand 4*2 LHD mobile LED screen truck for sale
