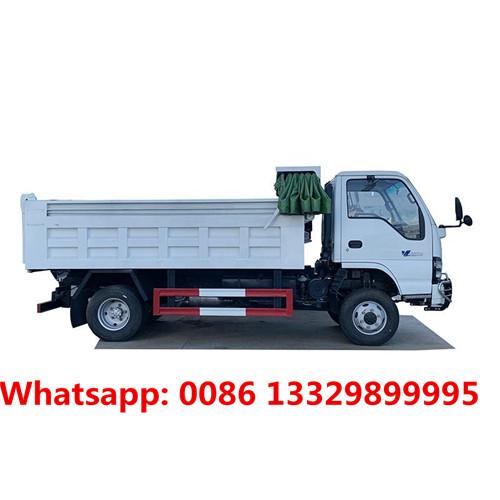

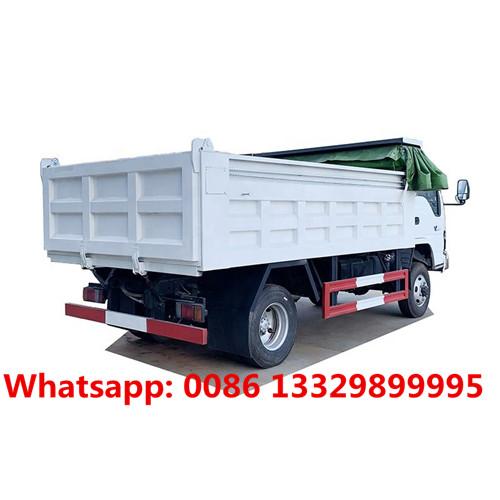

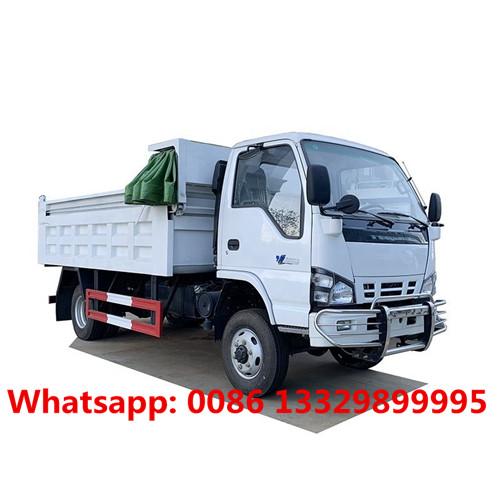

Japan ISUZU 4*2 LHD 2T-3T dumpper tipper truck for sale, stone and sand transported tipper vehicle for sale
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. And we can offer dongfeng dump truck, HOWO dump truck, ISUZU tipper truck, FAW dump tipper, North Benz dump truck, tipper trailer, etc. 4*2 dump truck, 4*4 dump truck, 6*4 tipper truck, 8*4 dump truck, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
main technical parameters of ISUZU Mini dumper truck with Japanese Chassis
| Subject | Mini dumper truck with Japanese Chassis | |
| Dimensions | 5550*2000*2300mm | |
| Chassis Model | QL1040BUFAY | |
| Wheel Base(mm) | 2765 | |
| Gross Weight(kgs) | 4495 | |
| Curb Weight (kgs) | 2720 | |
| Capacity | 3 TONS | |
| Engine | Engine brand | ISUZU |
| Model | 4KH1CN6LB | |
| Type | Multi Cylinder, 4 strokes, water cooled, direct fuel injection ,turbo-diesel engine. | |
| Displacement Volume(ml) | 2999 | |
| Net Power(HP) | Min. 88KW at rated RPM | |
| Emission Standard | EOUR5 | |
| Clutch System | Model | Single plate, dry friction clutch |
| Steering System | Power Steering | RHD or Left hand driving |
| Transmission System | Fast-gear, 4 forward & 1 reverse. | |
| Brake System | Service Brake | Hydraulic Disk brakes/drum brakes , |
| Park Brake | Air brake/Oil brak and Handbrake, | |
| Suspension System (front & rear) | Semi-elliptical leaf spring with telescopic shock absorber (both front & rear) | |
| Tyre | Tyre Quantity | 6 |
| Tyre Specification | 7.00R16LT 8PR | |
| Fuel Tank | 150L | |
| Cabin | Tilt driver's cabin of 2 persons (including driver) with power jack, tempered windshields. | |
| Top Parts | ||
| Box Size | 3600X1750X500 mm | |
| Material | High-Quality carbon steel Q235 | |
| Thickness of Body |
Baseplate 5 mm ;Side board 4 mm Other specification is optional |
|
| Hydraulic Cylinder |
1. Type of lifting :front lifting or ventral lifting 2. The cylinder diameter is 100 mm 3.Options hermetic seal, to fully sealed carriage, sealing cover forms: manual, hydraulic type |
|
