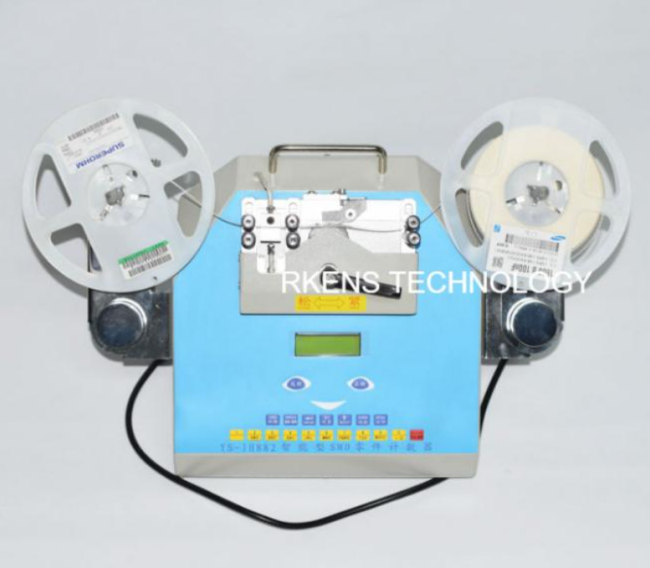

RS-IH882 80W Protable Automatic SMD Parts Counter With Missing Parts Detection Feature
Intelligent Missing Parts Detection SMD Parts Counter With Optical Fiber Sensor RS-IH882
Intro:
RS-IH882 is an intelligent type SMD parts counter with fiber sensor for detecting empty components. It is based on photoelectric sensor principle, using the components leading hole and components corresponding relationships. The SMD counter can count SMD parts accurately and fast. It can stop automatically after counting without pressing “Stop” button.
Suitable:
- Intelligent SMD parts counter, much faster and more accurate
- SMD counter is suitable for SMD material belt type components
- For All size of reel diameter
- Tape pitch: 2,4,8,10,12,16,24,32,44,56mm
- Tape width: 8,12,16,24,32,44,56mm
Specification:
| Name | RS-IH882 SMD Counting Machine |
| voltage | AC110V/220V, 50/60Hz(convertible) |
| Detect Missing Parts | Yes |
|
Capability |
5000 pcs /15s |
| Power | 80w |
| Counting volume | -16 777 216~ 16 777 216 |
| Size | L490*W280*H280mm |
| Net Weight | 11kg |
| Reel Diameter | Suitable for SMD Reel of any diameter |
| Reel Interval Distance | 2,4,8,10,12,16,24,32,44,56mm |
| Reel Width | 8,12,16,24,32,44,56mm |
Features:
1. Intelligent SMD parts counter for fast and accurately counting SMT components
2. Optical fiber sensor for empty pocket check, can detect missing parts
3. LCD dipaly, can set quantity, counting direction and other parameters easily
4. SMD counter is suitable for all types of SMD tape and reel components
5. Optional bar code printer and scanner. Bar code printer can be customized.
6. Small size, protable machine. Easy operation.
Intelligent & Traditional SMD counter Comparation
| Intelligent & Traditional Comparison | RS-801/802 traditional smd counter | RS-IH1881/1882 intelligent counter |
| Stop automatically when finish | No, manual stop | YES |
| Cushion | NO | YES |
| Voice Reminding | NO | YES |
| Error | 0 | 0 |
| Overswing | Nearly no | Absolutely no |
| Power | 30w | 80w |
| Speed | 30s for 5000pcs tape | 15s for 5000pcs tape |
| Speed adjustable | 3 level | 8 level |
| Noise | low | low |
| Outlook | Rectangle,stand to operate | 45‘ stand,sit or stand to operate |
| Scope | -99999-99999 | -16777216-16777216 |
| Connector printer | YES | YES |
| Connector scanner | YES | YES |
