BENE 12ton wheel excavator with hydraulic pump 12 ton wheel excavator with YUCHAI engine
Price:
20000USD--30000USD/unit
MOQ:
1unit
Delivery Time:
in available
Brand:
BENE
Product Description
BENE 12ton wheel excavator with hydraulic pump 12 ton wheel excavator with YUCHAI engine
BENE Wheel excavators are wheel-driven, with buckets excavating materials above or below the surface of the carrier and loaded into the earth moving machinery of the transport vehicle or unloading to the stockyard. Commonly used with small and medium-sized projects. The wheel excavator is a digging machine that uses tires as a running part, referred to as wheel excavator. The wheel excavator has a fast walking speed, does not damage the road surface, can be rotated at a long distance, and can quickly replace a variety of operating devices.
| Specification | Unit | BEM-E75 | BEM-E80 | BEM-E80W | BEM-E90 | BEM-E120 | |||
| Boom length | mm | 3100 | 3400 | 3400 | 3700 | 4100 | |||
| Arm length | mm | 1700 | 1900 | 1900 | 1900 | 2200 | |||
| Overall Dimension | Overall length | mm | 5870 | 6000 | 6200 | 6500 | 6800 | ||
| Overall width | mm | 1960 | 1960 | 1960 | 2180 | 2200 | |||
| Overall height of cab | mm | 2875 | 2900 | 2900 | 2930 | 2960 | |||
| Overall height (while walking) | mm | 2875 | 2900 | 2900 | 2930 | 2960 | |||
| Dimension Parameter | Wheel track | Front | mm | 1525 | 1525 | 1525 | 1670 | 1740 | |
| Rear | mm | 1525 | 1525 | 1525 | 1679 | 1740 | |||
| wheel base | mm | 2350 | 2350 | 2350 | 2400 | 2630 | |||
| Platform clearance | mm | 1050 | 1075 | 1075 | 1110 | 1165 | |||
| Turning radius of platform tail end | mm | 1800 | 1800 | 2000 | 2000 | 1990 | |||
| Chassis width | mm | 1950 | 1950 | 1950 | 2100 | 2200 | |||
| Chassis clearance (lower transmission box) | mm | 345 | 345 | 345 | 320 | 345 | |||
| Upper body width | mm | 1900 | 1900 | 1900 | 2050 | 2100 | |||
| Operation Range | Max. Digging Height | mm | 6660 | 7050 | 7050 | 7200 | 7720 | ||
| Max. discharge height | mm | 4760 | 5150 | 5150 | 5500 | 5720 | |||
| Max. digging depth | mm | 2790 | 3230 | 3230 | 3350 | 3720 | |||
| Max. vertical digging depth | mm | 2460 | 2800 | 2800 | 2890 | 3230 | |||
| Max. Digging Radius | mm | 6090 | 6563 | 6585 | 6900 | 7570 | |||
| Max. stop surface excavation distance | mm | 5900 | 6380 | 6380 | 6720 | 7235 | |||
| Max. ground clearance | mm | 300 | 300 | 300 | 300 | 430 | |||
| Max. depth of sliding plate sinking | mm | 100 | 100 | 100 | 100 | 100 | |||
| Performance Parameter | Dead-weight | kg | 6500 | 6500 | 6500 | 6900 | 9500 | ||
| Bucket | m³ | 0.2~0.3 | 0.2~0.3 | 0.2~0.3 | 0.2~0.3 | 0.4 | |||
| Traveling speed | Forward Ⅰ | km/h | 4.5 | 4.5 | 4.5 | 5 | 4 | ||
| Forward II | km/h | 9 | 9 | 9 | 10 | 8 | |||
| Forward III | km/h | 16 | 16 | 16 | 17 | 14 | |||
| Forward IV | km/h | 26 | 26 | 26 | 28 | 18 | |||
| Forward V | km/h | 33 | 66 | 33 | 32 | 29 | |||
| Reverse I | km/h | 4.5 | 4.5 | 4.5 | 5 | 4 | |||
| Gradeability | ° | 30 | 30 | 30 | 30 | 30 | |||
| Rotating speed | rpm | 10 | 10 | 10 | 10 | 11 | |||

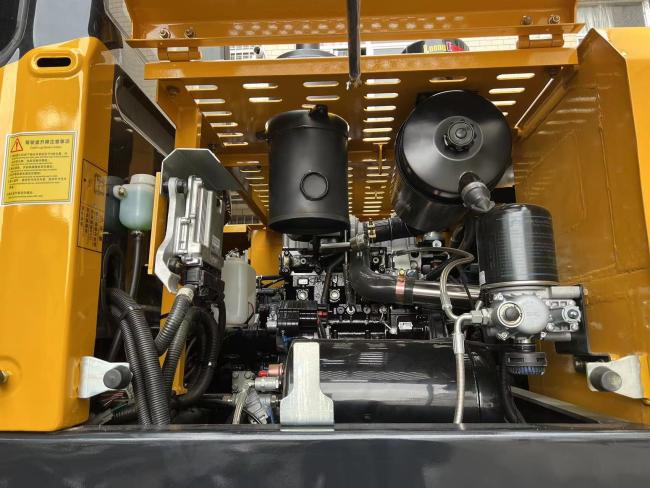

| Engine | Brand | YUCHAI | YUCHAI | YUCHAI | YUCHAI | YUCHAI | |||
| Model | 4D32YG30 | YC4DK70-T303 | YC4FA65-T300 | YC4FA65-T300 | YC4FA85-T300 | ||||
| ----- | ----- | ----- | |||||||
| CC | L | 3.168 | 3.621 | 2.982 | 2.982 | 2.985 | |||
| Rated power/speed | kW/rpm | 50/2300 | 50/2300 | 48/2200 | 48/2200 | 62.5/2000 | |||
| Maximum torque | N.m/rpm | 263/1600 | 260/1500 | 243/1600 | 243/1600 | 343/1600/ | |||
| Pump | Type | Gear pump | Gear pump | Plunger pump | Plunger pump | Plunger pump | |||
| Quantity of flow | L/min | 2X57 | 2X57 | 2X59.4 | 2X59.4 | 85 | |||
| Valve pressure | MPa | 21 | 21 | 21 | 21 | 28 | |||
| Oil | Fuel tank | L | 100 | 100 | 100 | 100 | 165 | ||
| Oil Tank | L | 118 | 118 | 118 | 118 | 165 | |||
| Tyres | 8 | 8 | 8 | 8 | 8 | ||||
| Model | 7.50-16/16PR | 8.25-16/16PR | 8.25-16/16PR | 8.25-16/16PR | 9.00-16/16PR | ||||
| Front axle swing Angle | ° | 8 | 8 | 8 | 8 | 8 | |||
| Attachment | Bucket/Hammer | Bucket/Hammer | Bucket/Hammer | Bucket/Hammer | Bucket/Hammer | ||||
