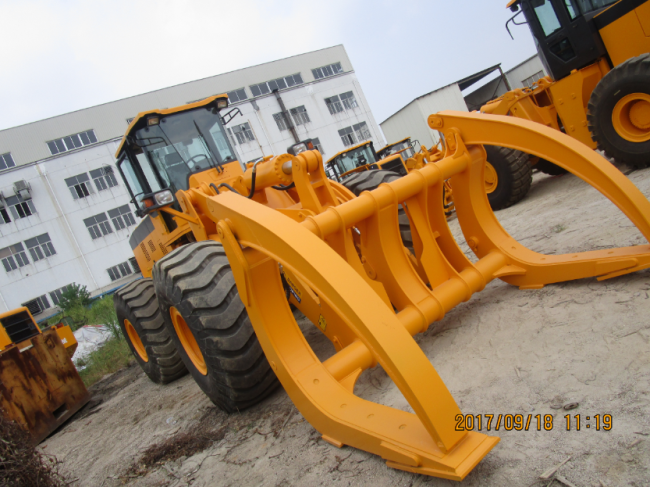

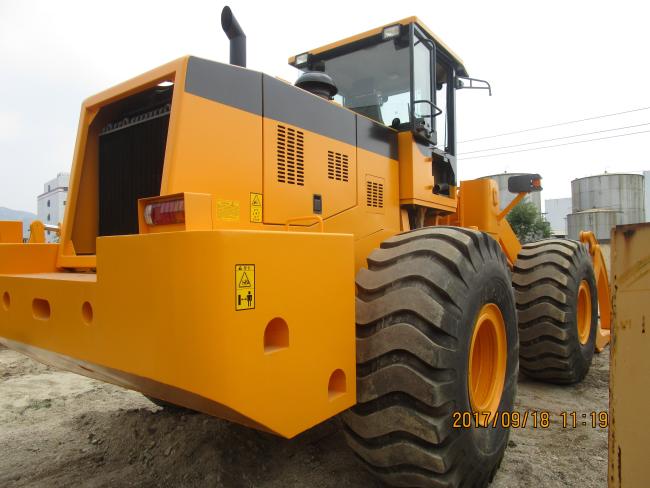

8 ton to 15ton load capacity log loader BEM150-J wheel loader with clamp

Specification

Rated load 8ton

Bucket capacity 3.5 m3

Max log length 13000mm

Max log diameter 1500mm

Clamp front/rear inclination 55°/40°

Dump height 3200mm

Reach at full lift discharge 1240mm

Overall length 8980mm

Overall height 3870mm

Overall width 3120mm

Tread width 2390mm

Minimum ground clearance 450mm

Turning angle 35°

Grade ability ≥24°

Max. traction force 230KN

Hydraulic cycle time 12sec

Machine weight 31000kg

Engine Cumins 6CTA8.3 260hp

Transmission ZL70A planetary F2/R1 gearbox

Travel speed

Forward I 11km/h

Forward II 29km/h

Reverse 14.5 km/h

Hydraulic oil tank capacity 400L

Diesel fuel tank capacity 400L

Tires type 4*26.5-25-46pr
