Four Mast Self Propelled Aerial Scissor Lift 10m For Business Decoration
Using purpose:
Business decoration, ceiling/fixture works, industrial facilities maintenance, lamps and lanterns replacement in halls, maintenance of street lamp, aerial photographs and wall cleaning etc.
Occasions suitable to use this machine:
Places may in need of this kind of machine:
Office buildings, hospitals, warehouses, factories, museums, auditoriums, gymnasium, business/convention center, airports, auto stations and highway toll station etc.
Product standard features
-
Drivable at full height
-
One hand proportional joystick
-
AC inverter motor drive
-
Drive speed interlock
-
Tilt level sensor with audible alarm
-
Overload limit
-
Emergency stop buttons at both controls
-
Emergency lowering device in case of power supply failure
-
Battery charger indictor
-
Forklift pocket
-
Compact size with easy quick guardrail assemblage system
-
Low maintenance requirements will save you time and money.
Specification
10m four mast self propelled aerial lift / aerial scissor lift for continuous aerial working purpose
|
Series |
Z4006E |
Z4008E |
Z4010E |
Z4012E |
|
Model-code |
GTWZ6-4006E |
GTWZ8-4008E |
GTWZ10-4010E |
GTWZ12-4012E |
|
Platform height(m) |
6 |
8 |
10 |
12 |
|
Working height(m) |
8 |
10 |
12 |
14 |
|
Roll out (mm) |
800 |
800 |
800 |
800 |
|
Capacity(kg)/occupants |
480/2 |
300/2 |
300/2 |
250/1 |
|
Capacity for extension platform(kg) |
100 |
100 |
100 |
100 |
|
Platform size(mm) |
1760*860 |
1760*860 |
1760*860 |
1760*860 |
|
Stowed length(mm) |
2430 |
2430 |
2430 |
2430 |
|
Stowed width(mm) |
1150 |
1150 |
1150 |
1150 |
|
Stowed height(mm) |
1980 |
1980 |
1980 |
2450 |
|
Machine weight(kg) |
2350 |
2450 |
2560 |
2650 |
|
Moving methods |
Drivable when fully lifted up |
|||
|
Travel speed |
Stowed 2.5 km/h; Lifted 0.8 km/h |
|||
|
Brake type |
Loss of power brake |
|||
|
Turning Radius |
Outside 3060mm / inside 950mm |
|||
|
Ground Clearance |
74mm |
|||
|
Max. allowed wind speed |
12.5m/s |
|||
|
Rated oil pressure |
12Mpa |
|||
|
Power supply |
Elevating DC24V / Driving DC48V |
|||
|
Power input |
Elevating 2.2Kw/ driving 3Kw |
|||
|
Battery |
12V/120Ah *6 |
|||
|
Recharger |
DC24/15A, DC48V/20A |
|||
- rated load for extenson: 100kg
- Optional funtion: horizontal extension platform for 800mm at one side;
If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service.

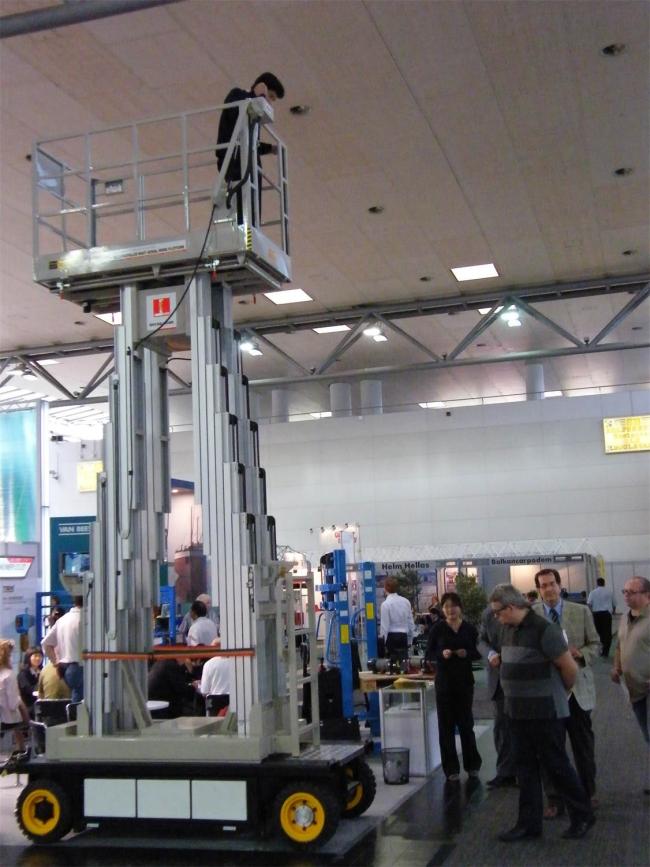

Product photos
LCL: plywood case with steel pallet at bottom
FCL: steel pallet with anti-rust covers 20GP container for 4 set
Delivery time is usually 10-50 working days according to order qty. and models.
After-sale Service
- To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.
- To provide remote service support by phone and network freely.
SIVGE regards product safety as basic point of connecting to users.
1)SIVGE firmly adheres to domestic and international standards in the process of designing, manufacturing and transporting; the strength of the parts and the stability of the whole machine must undergone strict calculation and experimental verification.
2)All products are tested by the national authoritative testing institutions.
3)The production process, inspection and parts purchasing are fully in accordance with quality assurance system.
