Electric Aluminum Vertical Mast Lift
3m- 8m Working Height Self Driven / Motor Driven Aerial One Man Lift For Fixture Works
Download Catalog: Z10 self-propelled single mast 3-6m.pdf
1. CE product;
2. Drivable with platform fully lift up;
3. Mostly suitable to do continuous aerial works;
4. Good after-sales
1)The product is controlled based on the imported intelligent technology.
2)It is powered by DC, can be controlled by manually. It can move automatically and the moving speed is adjustable.
3)It can climb a gradient very well.
4)The recharge will restrict the rising of the platform.
5)The driving motor has the automatic braking function.
6)The emergent drop will be locked.
7)The malfunction can be diagnosed automatically and the maintenance is very convenient.
Product standard features
- Drivable at full height
- Emergency stop buttons at both controls
- Emergency lowering device in case of power supply failure
- 24V safe control voltage
- Battery charger indictor
- Forklift pocket
- No-marking wheels
- Low maintenance requirements will save you time and money.
- One hand proportional joystick
If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service or non-standard models.
Product advantages
User's safety is the basic concern point of SIVGE platform
Specifications of
3m- 8m Working Height Self Driven / Motor Driven Aerial One Man Lift For Fixture Works
| Manufacturer | SIVGE |
| Country of origin | China |
| Model | GTWZ3-1006 self-propelled |
| Working height | 8 m |
| Platform height | 6m |
| Platform capacity | 136kg for one person with tools |
| Platform dimension | L938×W740mm |
| Stored height | 1970mm |
| Stored length | 1420mm |
| Stored width | 800mm |
| Machine weight | 540kg |
| Power supply | DC24V with battery |
| Power input | 0.8kw |
| Traveling speed | 2.5km/h when stored; 0.8km/h once lifted |
| Climb ability | 25% |
| Parking brake | Loss of power brake |
If the above specification can not fulfill your working site, such as machine length, width and height, please contact us for further design service.

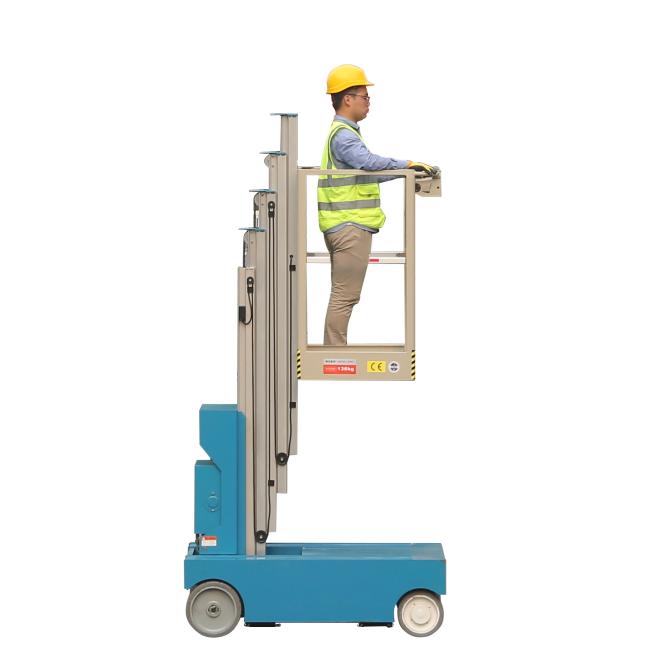

product photos
After-sale Service
- To provide a lifetime goods services for all Sivge equipments, included equipment maintenance, spare parts supply, provide manuals and video,etc.
- To provide remote service support by phone and network freely
LCL: plywood case with steel pallet at bottom
FCL: steel pallet with anti-rust covers
Delivery time is usually 40 days according to order qty. and models.
Using purpose:
- Business decoration
- ceiling/fixture works
- industrial facilities maintenance,
- lamps and lanterns replacement in halls
- maintenance of street lamp
- aerial photographs
- wall cleaning etc.
Safe & Reliable
Safety is the main concern of SIVGE.
Professional & Innovative
SIVGE technical team has research and development the aerial work platforms for 20 years, especially mast platforms. We obtain dozens of patents and apply these patents to our machines.
We focus on portable aerial work platform, lifting mechanism synchronization, machine stability, operator comfort, and control of advanced, outriggers rationality, pleasant appearance, user reliability, complete varieties and specifications and other aspects to create a unique brand.
Sivge has build the national standards in aerial work platform fields, establishde High-tech R&D center. build the National key scientific and technological support projects industrial base.
LCL: plywood case with steel pallet
FCL: steel pallet with anti-dust cover
Delivery time is usually 30 days after order comfirmation.
