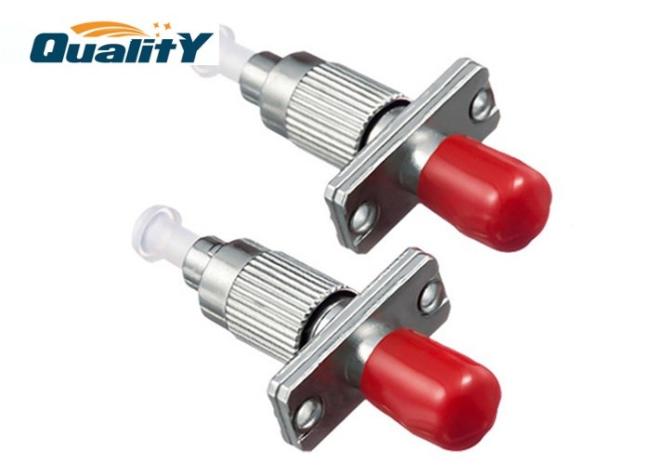

FC To ST Metal Fiber Optic Adapter , Singlemode SM Fiber ST Female To FC Male Conversion Hybrid Adapters
FC to ST metal adapter Singlemode SM Fiber ST Female To FC Male Conversion Hybrid adapters fiber optical adapters
Feature
• Low insertion loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific
requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.
Application
CATV
Passive/Active device termination
Tlelecommunication metworks
Metro Industry
Aero Industry
Local Area Networks(LAN)
Test equipment
Specification
| Optic fiber adapter | |
| Brand | QY |
| Connector Type | FC, SC, ST, LC, MPO, etc. |
| Operating Wavelength | 1260nm-1650nm |
| Insertion Loss | ≤0.2dB, max 0.3dB |
| Return Loss | PC≥45dB ,UPC≥50dB,APC≥65dB |
| Exchangeability | ≤0.20dB |
| Type | FC UPC - ST UPC |
| Tensile | ≤0.10dB (0-15Hg, except Ø0.9mm) |
| Plug times | >500 (Times), ≤0.20dB |
| Storage Temperature | -40°C ~ +85°C |
| Operating Temperature | -40°C ~ +85°C |
