WCON Slim HD R 15P Female D Sub Connector Class IO connectors for communication equipment

Price Negotiable
Price: Negotiation
MOQ: 1000pcs
Delivery Time: 15-25 Working Days
Brand: WCON
Product Description

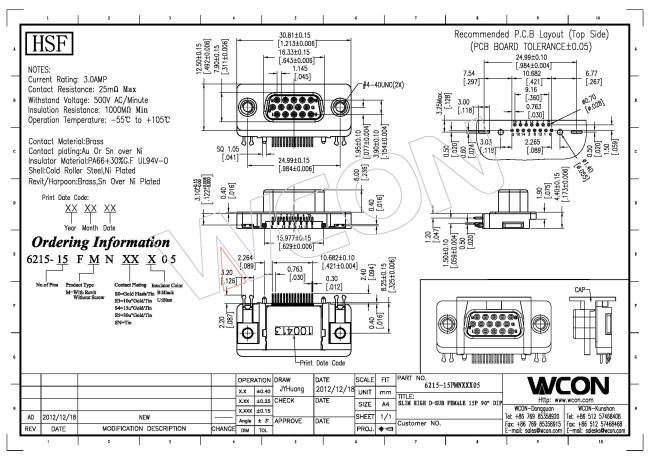

D Sub Connector Slim HD R 15P Female 9 Pin Class IO connectors for communication equipment





Current Rating 3.0AMP
Contact Resistance 25mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000mΩ Min
Operation Temperature ﹣55℃ to +105℃
Contact Material Brass
Contact Plating Au Or Sn over Ni
Insulator Material PA66+30%GF UL94V-0
Shell Cold Roller Steel,Ni Plated
Revit/Harpoon Brass,Sn Over Ni Plated



Product Name: D-SUB connector



1. features: the use of a wide range of environmental protection fireproof antioxidant electrical conductivity and long service life force is strong.



2. material: PBT (green, black, white) plus fiber 30% UL94V-0 contact body material: brass (C3604)



3. scope of application: used for connecting a computer, communication, medical equipment, wire and cable, aviation, digital, machinery and equipment, game consoles and other integrated circuit package pins and printed circuit board.
