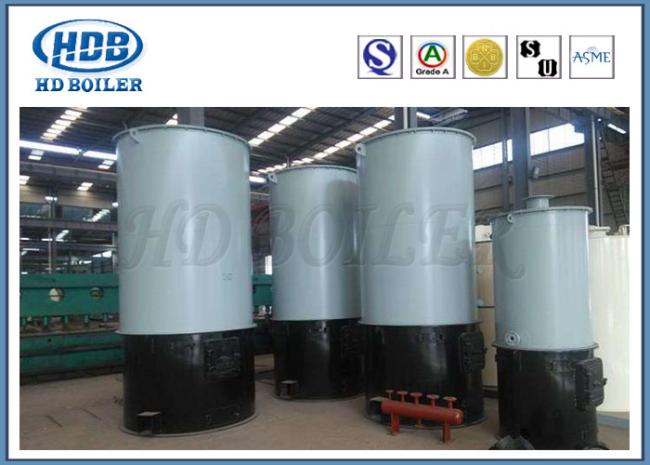

YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube
Structural features
1, YLL/YGL type series organic heat carrier furnace for packaged forced circulation chain grate/ fixed furnace boiler. Boiler by upper body and lower grate/ fixed furnace composition, jobsite combination.
2, Boiler heating surface using dense row circular coil, by inside and outside, multilayer tight row circular tube composition.
3, Boiler structure is compact, cover an area of an area small, high degree of assembly, installation period is short.
The performance advantage
1, Energy-efficient
2, Safe and reliable
3, Environmental protection
Parameter
|
Model
|
YGL -180M |
YGL -3000M |
YGL -350M |
YGL -460M |
YGL -700M |
YGL -1000M |
YGL -1200M |
YGL -1400M |
YGL -1600M |
YGL -1900M |
|
Delivered heatx×104kcal/h |
15 | 25 | 30 | 40 | 60 | 80 | 100 | 120 | 140 | 160 |
|
System heating efficiency(%) |
73 | 73 | 73 | 73 | 76 | 76 | 76 | 76 | 78 | 78 |
|
Design pressure(Mpa) |
1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
|
Max.working temperature(ºC) |
320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
|
Medium circulation speed m 3 /h |
12.5 | 40 | 40 | 60 | 80 | 100 | 100 | 100 | 100 | 160 |
|
Diameter of main pipe(DN) |
40 | 80 | 80 | 100 | 100 | 125 | 125 | 125 | 125 | 150 |
|
Installation capacity(kW) |
8.5 | 15 | 18(15) | 24(20) | 28(25) | 45(40) | 53(48) | 60(55) | 60 | 80(73) |
|
Applicable fuel |
Soft coal and anthracitic coal | |||||||||

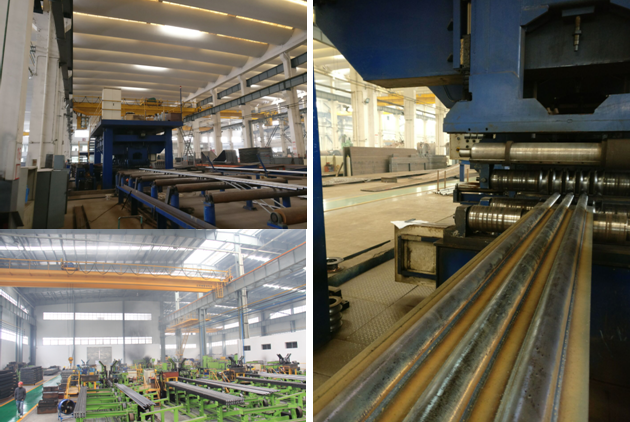

Production Workshop
Certifications
Company Introduction
Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port
