Solar Membrane Water Wall Panels For Boiler Energy Saving ASME Certification
Product Description

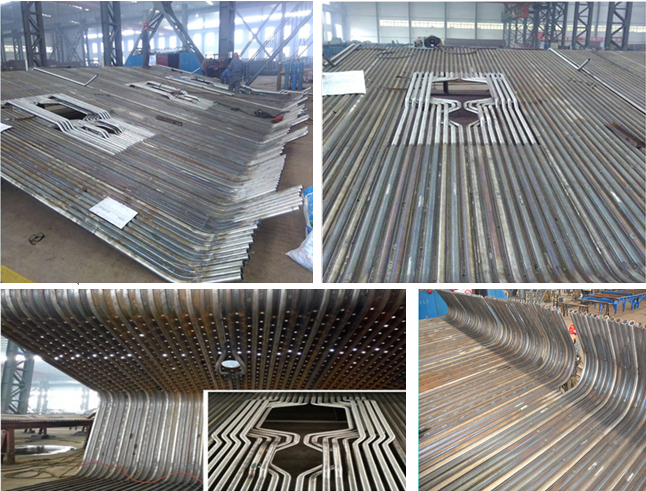

The water wall is the main radiation heat surface, arranged inside the boiler chamber and proceeds the heat exchange directly with the high temperature flame. The convection tubes are the convection heat surface of the boiler, arranged between the boiler chamber outlet and the end heat surface and proceed the heat exchange directly with the high temperature fume. The water wall and convection tubes are the main heat surface of the boiler, the tubes diameter for both generally usedΦ 51-60mm boiler steel tubes, also as the request.
Parameter
| Name | Membrane water panel |
| Material | Carbon steel,Alloy,Stainless steel |
| Tube size | Φ38 - 76 mm, Customize |
| Standard | ISO , ASME |
| Model | Studded |
| Application | Istallable around the boiler combustion chamber |
The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber.
Certifications
HD Boiler offers a best in class facility,including
- Fabrication area of 200,000 square meters
- 150 Engineers
- 600 Coded welders
- 60 Licensed Inspectors (including NDT level-lll instructors)
- Grade-ALicenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)
- ISO 90001:2008 Quality System
- ASME Certificate of Utility Boiler
- ASME‘S’ , ‘U’ and NB stamp authorization
