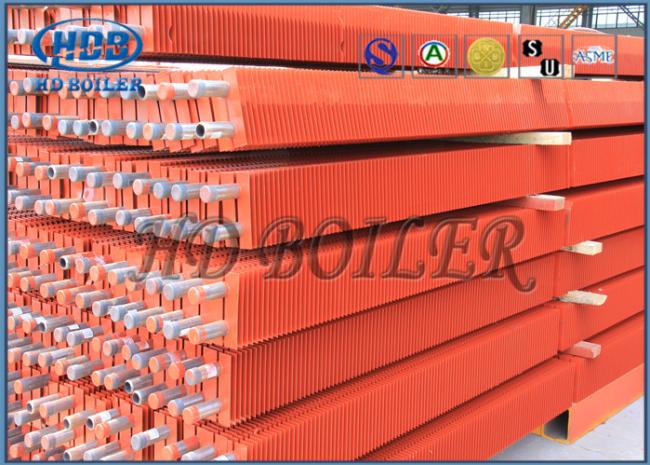

ND Steel Cold Finished H Type Finned Tube Heat Exchanger GB-09CrCuSb Standard
ND Steel Diameter 38 thickness 4 or 5 cold finished H type finned tube GB-09CrCuSb standard
Product Description
1.Finned Tube Heat Exchangers consist of a shell and finned tubes assembly.
2.Fins are used to increase the effective surface area of heat exchanger tubing.
3.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger, thermic fluid to air heat exchanger, when an extended surface is needed on only one fluid side or when the operating pressure needs to be contained on one fluid side.
Details
Technical parameter
| Medium | air, flue gas, thermal oil, water, brine, refrigerant, etc. |
| Temperature | standard heat exchanger to 560 ° C by special materials can be higher |
| Pipe materials | carbon steel, stainless steel, alloy or special materials |
| Ribs materials | carbon steel, stainless steel, non-ferrous metal, alloy or special materials |
| Thermal insulation &Surface treatment | according to customers specification |
Features
1. The equipment body can be designed into many modules to ensure the long term and stable running;
2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage
3. Improve the heat transfer efficiency
4. Structure arrangement: In line or staggered arrangement
