1. Product Description

The water wall is main radiation heat surface, arranged inside the boiler chamber and proceeds the heat exchange directly with the high temperature flame. The convection tubes are the convection heat surface of the boiler, arranged between the boiler chamber outlet and the end heat surface and proceed the heat exchange directly with the high temperature fume. The water wall and convection tubes are the main heat surface of the boiler, the tubes diameter for both Generally used φ51~60mm boiler streel tubes, also as the request.

2.Parameter

3. Application

Boiler water walls are membrane walls that are made of tubes welded together with or without a strip of metal in between. These walls form the enclosure of the coal combustion chamber. Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.


4. Warranty

1. One year warranty

2. Spare parts available at ex-factory price

3. Different voltage available

4. 100% tested before delivery

5. Assist clients to prepare for the first construction, and also can arrange engineer

onsite instruction of installation and commissioning

6. Train the first-line operators;

7. Examine the equipment;

5.Company Indroduction

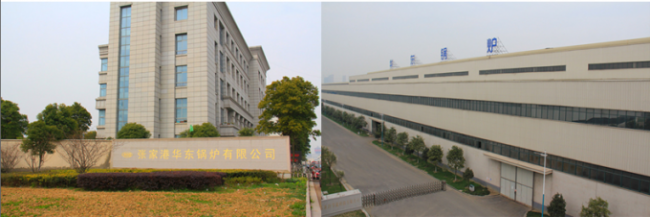

Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
