Description

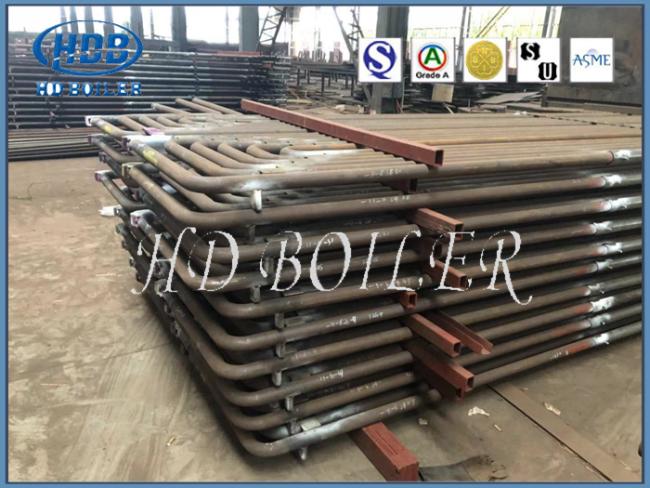

Heaters and superheater are a set of tubes located in a boiler.Water vapor enters the superheater from the water wall and heats to above saturation temperature until it reaches the required maximum operating temperature.Superheated steam flows to the high-pressure turbine through the main steam pipe.The steam discharged from the high-pressure turbine is directed to the boiler for reheating and from the boiler to the medium-low pressure turbine.High temperature heating can improve the output and efficiency of power plants.

Function

A reheater is basically a superheater that superheats steam exiting the high-pressure stage of a turbine. The reheated steam is then sent to the low-pressure stage of the turbine. By reheating steam between high-pressure and low-pressure turbine it is possible to increase the electrical efficiency of the power plant cycle beyond 40%.The reheat cycle is used in large power boilers since it is feasible economically only in larger power plants.

Application

Surper is a heat exchange part of boiler which widely used in energy industrail.

Manufacturing and acceptance criteria

JB/T1611 " Technical specification for manufacturing of boiler pipes."

JB/T1612 "boiler pressure test technical conditions. "

JB/T1613 "Technical specification for welding of pressure parts of boiler."

JB/T1615"Technical specification for painting and packing of boiler."

JB/T3375 "Rules for receiving acceptance of materials for boiler construction."

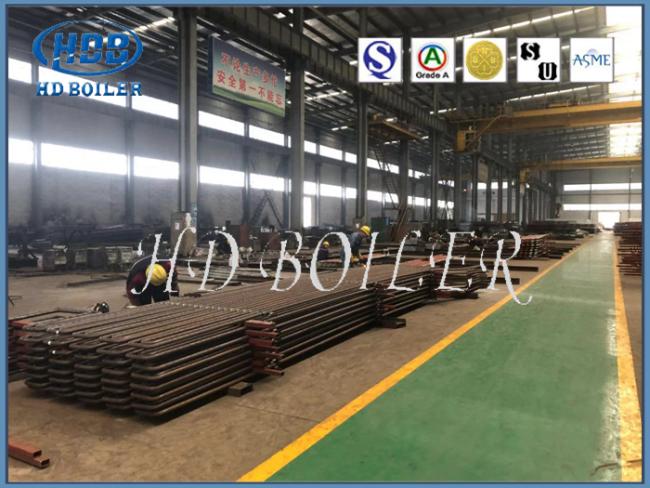

Workshop
