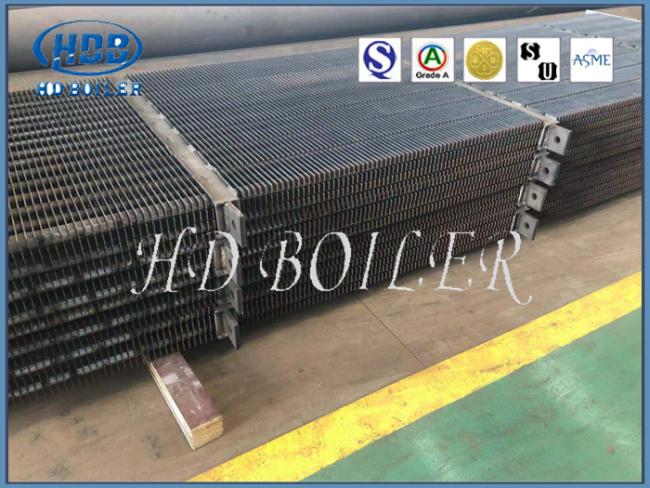

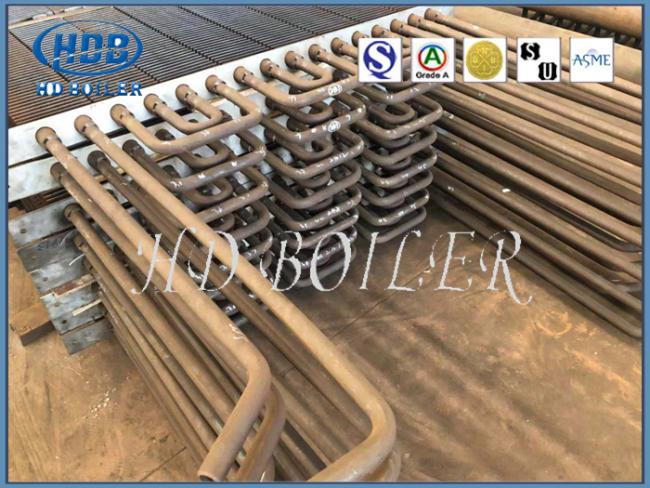

High Efficiency Industrial Finned Tube Economiser In Boiler For Power Plant
High Efficiency Industrial Finned Tube Economiser In Boiler For Power Plant
Product Description
Economizers or economisers, are mechanical devices intended to reduce energy consumption, or to perform useful function such as preheating a fluid. The term economizer is used for other purposes as well.Boiler, power plant, heating, Refrigeration, ventilating, and air conditioning (HVAC) uses are discussed in this article. In simple terms, an economizer is a heat exchanger.
Coal fired boiler Economizer can be made of alloy steel, carbon steel or other kind of material as per the customer’s requirements. It conforms to the standard of ASTM, EN, DIN, GB.
The manufacturing equipment is 30~185MN hydraulic press, the forging ratio >3, the technical condition is in accordance with the standard of ASTM, EN, DIN, GB.
Specifications
| Name(unit) | Specification(mm) |
| Bare pipe(OD) | 25-165 |
| Bare pipe(Thickness) | 2-8 |
| Fin (Thickness) | 0.6-3.0 |
| Fin (Height) | 5-30 |
| Fin tube thread pitch | 5-30 |
| Fin tube length | ≤12000 |
Main technical advantages of our low temperature economizer
1. The equipment body can be designed into many modules to ensure the long term and stable running;
2. The low temperature economizer manufactured by our company can guarantee the wall temperature is 5-10 ℃ higher than the acid , and flue outlet temperature is 10-15 ℃ higher than the wall surface temperature
3. Wall surface temperature can be adjusted according to the boiler load and fuel changer to avoid corrosion under low temperature
4. Changer the DCS system of the existing boiler to achieve the auto and remote control by computer .
Energy-saving principle
Add a heat recovery process to the cycle.Increase the average heat absorption temperature.Thus increasing the cycle efficiency.
In the start-up process of boiler (drum boiler), because the circulation of its steam pipe is not established, that is, the boiler feed water is in a state of stagnation, at this time the water in the economizer is in a state of non-flow.With the strengthening of boiler combustion and the increase of flue gas temperature, the water in the economizer is prone to vaporization, which makes the economizer part in an over-temperature state.In order to avoid this situation, the centralized downpipe of the steam drum is connected with another pipe to the inlet of the economizer as a recycling pipe, so that the water in the economizer is in a flowing state to avoid its vaporization.
Certifications
Company Introduction
Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port.
